Baldrick17 DIY Build Kit (Cosmic Pro-Series)

The Cosmic Pro-Series Baldrick17 DIY Pixel Controller Kit brings together the controller board, enclosure, dual power supplies, wiring, connectors, mounting hardware, and accessories needed to build a complete 17-output Ethernet pixel controller for xLights/FPP displays.

Built around the Baldrick17 controller board, this kit uses the same curated components found in our ready-to-run Cosmic Pro-Series controllers while allowing you to handle the enclosure preparation, assembly, and wiring yourself.

• Baldrick17 17-output pixel controller board
• 17 xConnect pixel outputs — up to 750 RGB pixels per port at 40 FPS
• 12,750 RGB pixel controller data capacity
• Dual 10/100 Ethernet ports for show-network connection and daisy chaining
• 3 Turniput input ports for buttons, sensors, triggers, lamp control, or supported FPP API actions
• Dual Mean Well LRS-350-12 power supplies — 700 W total installed capacity
• UV-stabilized Boxco P-Series weather-resistant enclosure
• xConnect pigtails, wiring, glands, mounting hardware, drilling template, and build accessories included

New to xLights or FPP? Please review our Before You Buy guide before purchasing.

Product Overview

The Cosmic Pro-Series DIY kit is designed for builders who want the capacity and features of a Baldrick17 controller without sourcing the board, enclosure, power supplies, pigtails, network hardware, cable glands, wiring, mounts, and installation accessories from multiple vendors.

The Baldrick17 provides 17 individually fused pixel outputs, dual Ethernet network connections, and three programmable Turniput inputs for interactive display control. The included dual Mean Well LRS-350-12 power supplies provide 700 W of installed 12V power supply capacity.

The Baldrick17 itself supports up to 12,750 RGB pixels for controller data output. Actual pixel power requirements depend on pixel type, brightness, cable length, voltage drop, and display layout, so power injection may still be required for larger installations.

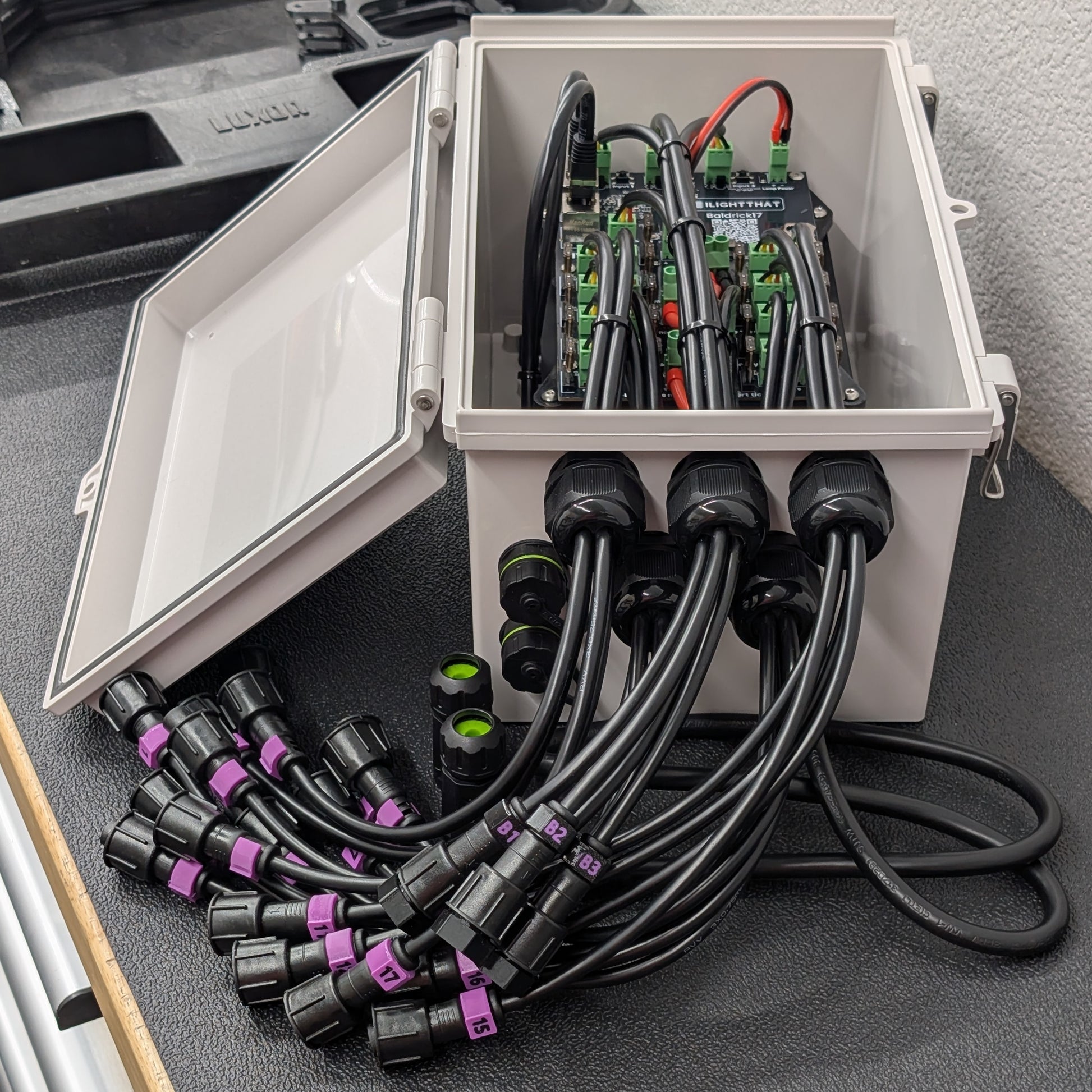

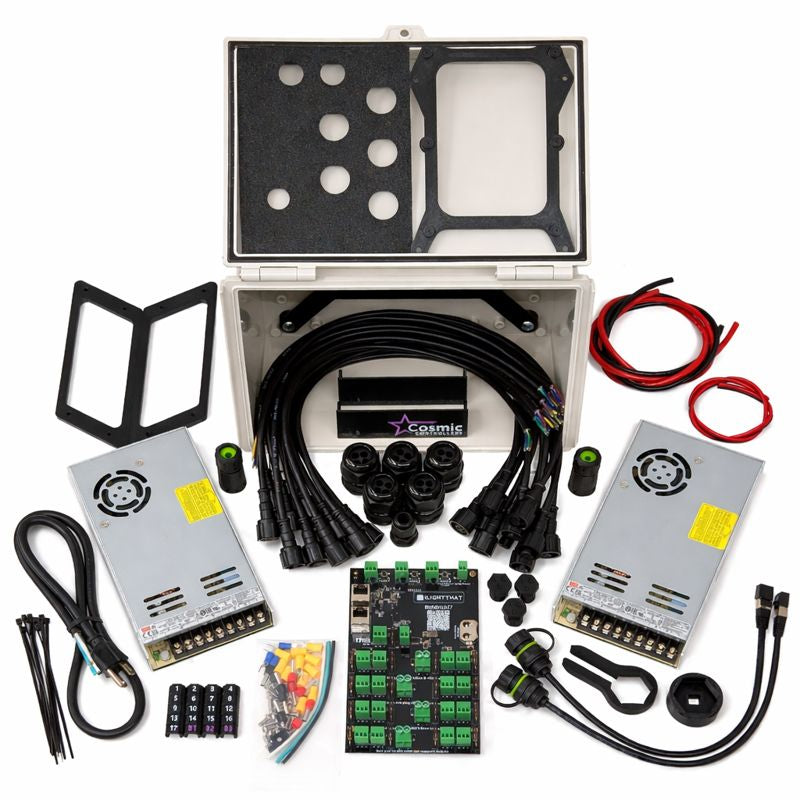

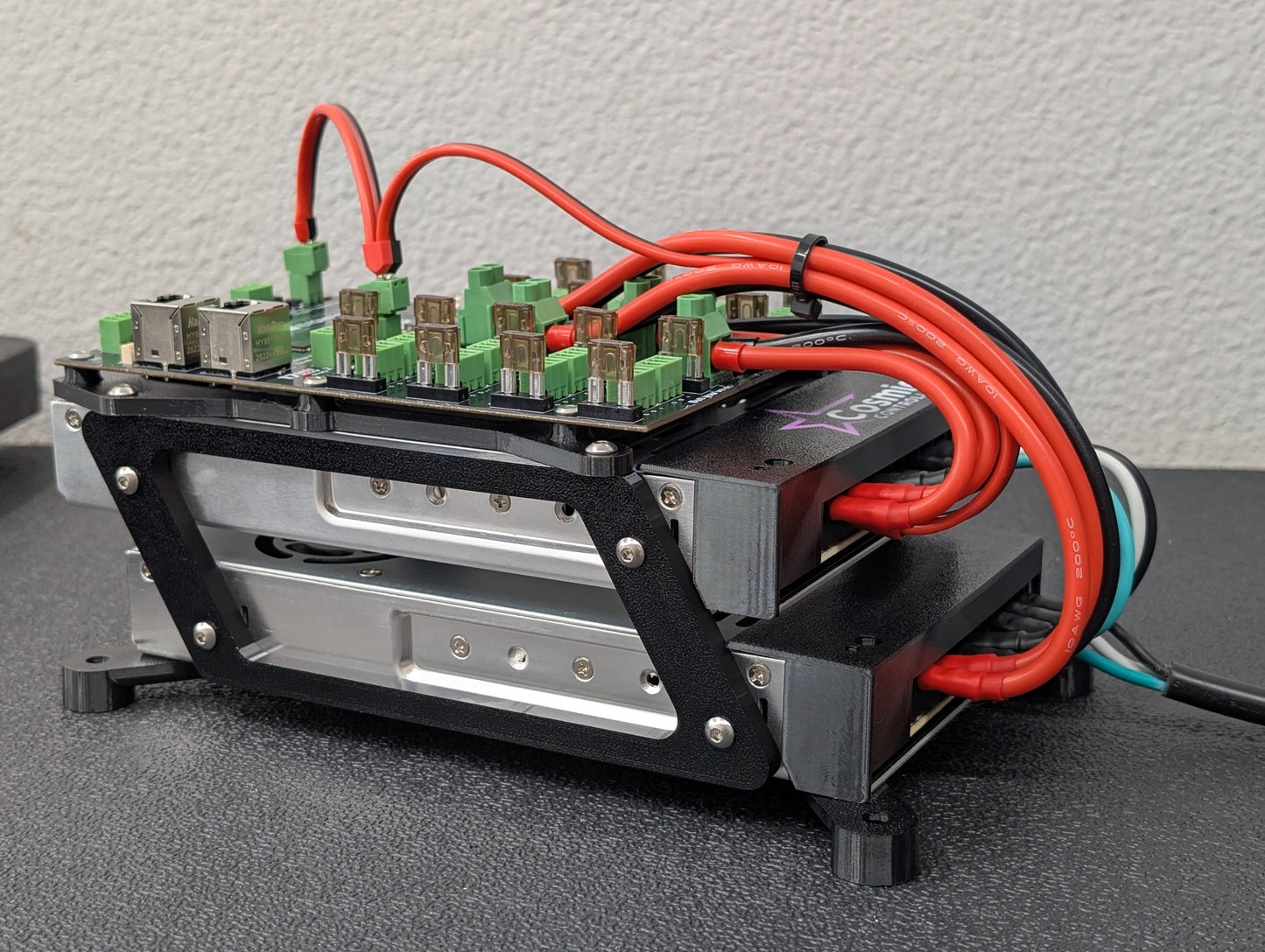

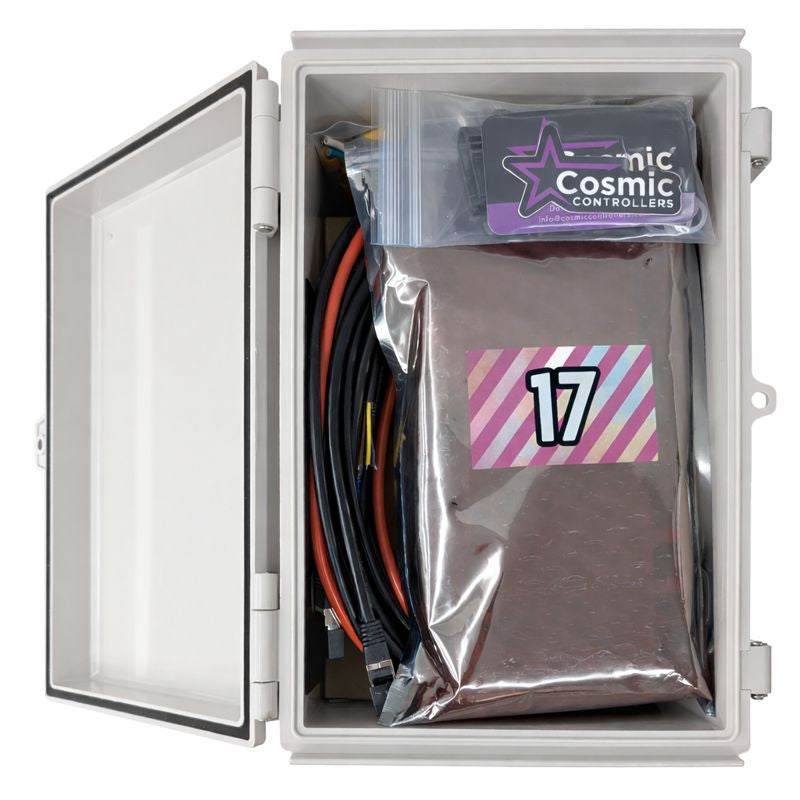

What's Included

• 1 × Baldrick17 17-output pixel controller board
• 1 × Boxco P-Series UV-stabilized weather-resistant enclosure
• 2 × Mean Well LRS-350-12 12V / 350 W power supplies
• 20 × xConnect female pigtails — 17 pixel outputs + 3 Turniput inputs
• 2 × waterproof RJ45 panel couplers
• 5 × M25 IP68 4-hole cable glands
• 1 × M16L cable gland for power-cord entry
• 1 × 14/3 SJTW outdoor-rated power cord
• PETG mounting plates and brackets
• 10 AWG and 16 AWG high-temp silicone power wire
• Crimp ferrules and fork terminals
• Stainless-steel mounting hardware
• Cosmic Cable ID clips
• PSU terminal safety covers
• 3 × Turniput port pinout plugs
• Enclosure drilling template
• 33 mm PETG cable-gland wrench / socket tool set

Key Features

Baldrick17 Pixel Control Platform

• 17 smart pixel outputs
• Up to 750 RGB pixels per port at 40 FPS
• Total controller data capacity: 12,750 RGB pixels
• Supports common addressable RGB pixels and supported RGBW pixel types
• Individually fused outputs using 7.5 A mini blade fuses
• Power banks arranged in a 4 + 4 + 4 + 4 + 1 output layout

Network & Integration

• 2 × 10/100 Ethernet ports
• Supports daisy-chained show-network connections
• Two waterproof RJ45 panel couplers included for enclosure installation
• Supports DDP, Art-Net, E1.31, and sACN
• Push from xLights integration with supported xLights versions
• Compatible with xLights, FPP, and other supported network lighting control systems

Turniput Interactive Inputs

The Baldrick17 includes three programmable Turniput input ports for adding physical interaction to a lighting display.

• 3 × Turniput input ports
• Press and hold actions provide up to 6 programmable trigger actions
• Connect buttons, sensors, switches, or other supported input devices
• Supports FPP API actions such as playlist control, sequence triggers, and volume commands
• Supports Baldrick ecosystem actions including test modes and compatible networked devices
• Turniput lamp-control support for compatible illuminated inputs
• 3 Turniput port pinout plugs included with the kit

Power & Wiring

• 2 × Mean Well LRS-350-12 power supplies
• 700 W total installed 12V power supply capacity
• 10 AWG high-temp silicone wire for main power distribution
• 16 AWG high-temp silicone wire for port 17 and Turniput power wiring
• Crimp ferrules and fork terminals for controller assembly
• 14/3 SJTW outdoor-rated AC power cord
• PSU terminal safety covers

Enclosure & Hardware

• Boxco P-Series UV-stabilized weather-resistant enclosure with stainless hardware
• 5 × M25 IP68 4-hole cable glands for pixel and Turniput routing
• 2 waterproof RJ45 panel couplers
• M16L cable gland for power-cord entry
• PETG mounting plates and brackets
• Cosmic Cable ID clips

• Enclosure drilling template
• 33 mm PETG cable-gland wrench / socket tool set

Technical Specifications

Build Notes & Wire Length Reference

The included wiring is intentionally supplied longer than required so builders can route cables cleanly within the enclosure. If you want to mirror the layout used in our Cosmic Pro-Series ready-to-run controllers, the following are the approximate wire lengths we typically use.

• 10 AWG PSU power wiring: The kit includes 36" of red and 36" of black 10 AWG silicone wire. Our typical cuts are approximately 5", 6", 9.5", and 10.5" of each color.
• 16 AWG port 17 and Turniput power wiring: The kit includes 18" of red/black paired 16 AWG silicone wire. Our typical cuts are approximately 5.5" and 10.5".

Wire lengths may vary depending on routing preference and component placement. Dry-fit all components and plan cable paths before trimming wiring.

What You Need to Provide

• Basic hand tools such as screwdrivers, cutters, and hex keys
• Drill and appropriate bits or hole saws for enclosure preparation
• Ferrule and terminal crimping tools
• Multimeter recommended for wiring verification and testing

Skill Level & Safety

This kit requires enclosure drilling, component installation, low-voltage DC wiring, and connection of AC power components. It is intended for builders who are comfortable performing this work safely and following applicable electrical requirements and best practices.

If you prefer a controller that is already assembled, wired, labeled, and tested, choose the Cosmic Pro-Series Baldrick17 Ready-to-Run Pixel Controller.

Compatibility Notes

• This is a DIY controller kit and requires assembly before use.
• The Baldrick17 includes two Ethernet ports for show-network connection and daisy chaining.
• The three Turniput ports support compatible buttons, sensors, triggers, lamp control, and supported API actions.
• This is a pixel controller kit, not an FPP player or show computer.
• The 12,750-pixel specification describes controller data capacity and does not mean the included 700 W of power supply capacity can power 12,750 pixels in every installation.
• Power injection may be required depending on pixel count, brightness, cable length, voltage drop, and display layout.
• If you plan to use RGBW pixels or non-standard pixel types, confirm the pixel IC/protocol before ordering.

Recommended Accessories

• Wall Mount Bracket Kit, 4-Pack
• 6–25 mm Titanium Spiral Step Drill Bit

Why Choose a Cosmic DIY Kit

Cosmic DIY kits use the same curated components found in our ready-to-run controllers, including genuine Mean Well power supplies, UV-stabilized enclosures, quality wiring, purpose-selected hardware, and controller-specific mounting components.

You handle the assembly while we handle the parts selection and compatibility.
