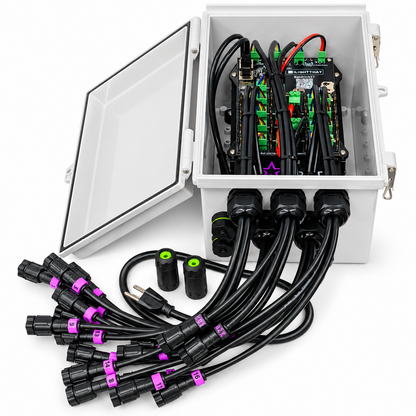

• Baldrick17 ready-to-run pixel controller in open weather-resistant enclosure with 17 xConnect outputs

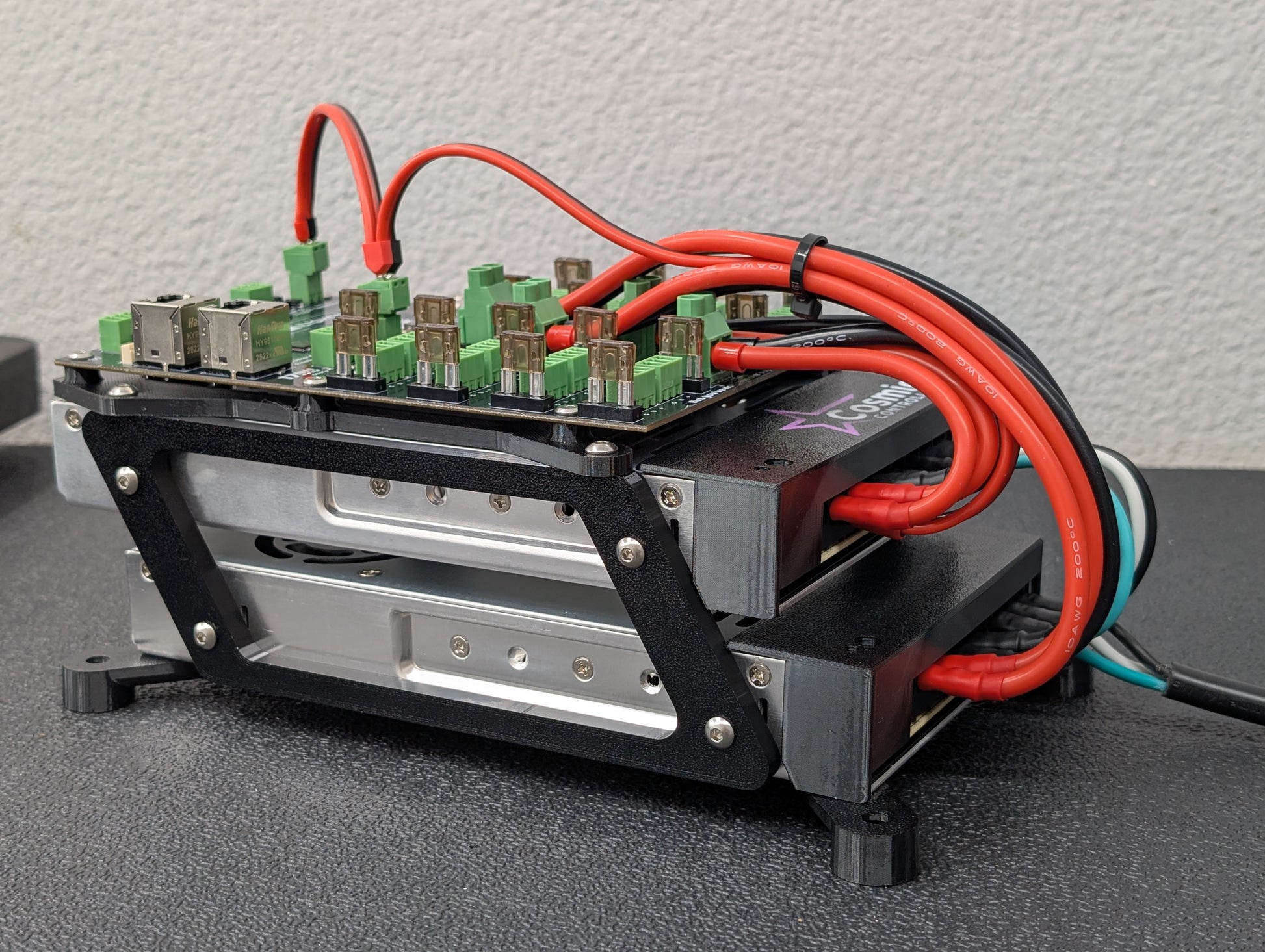

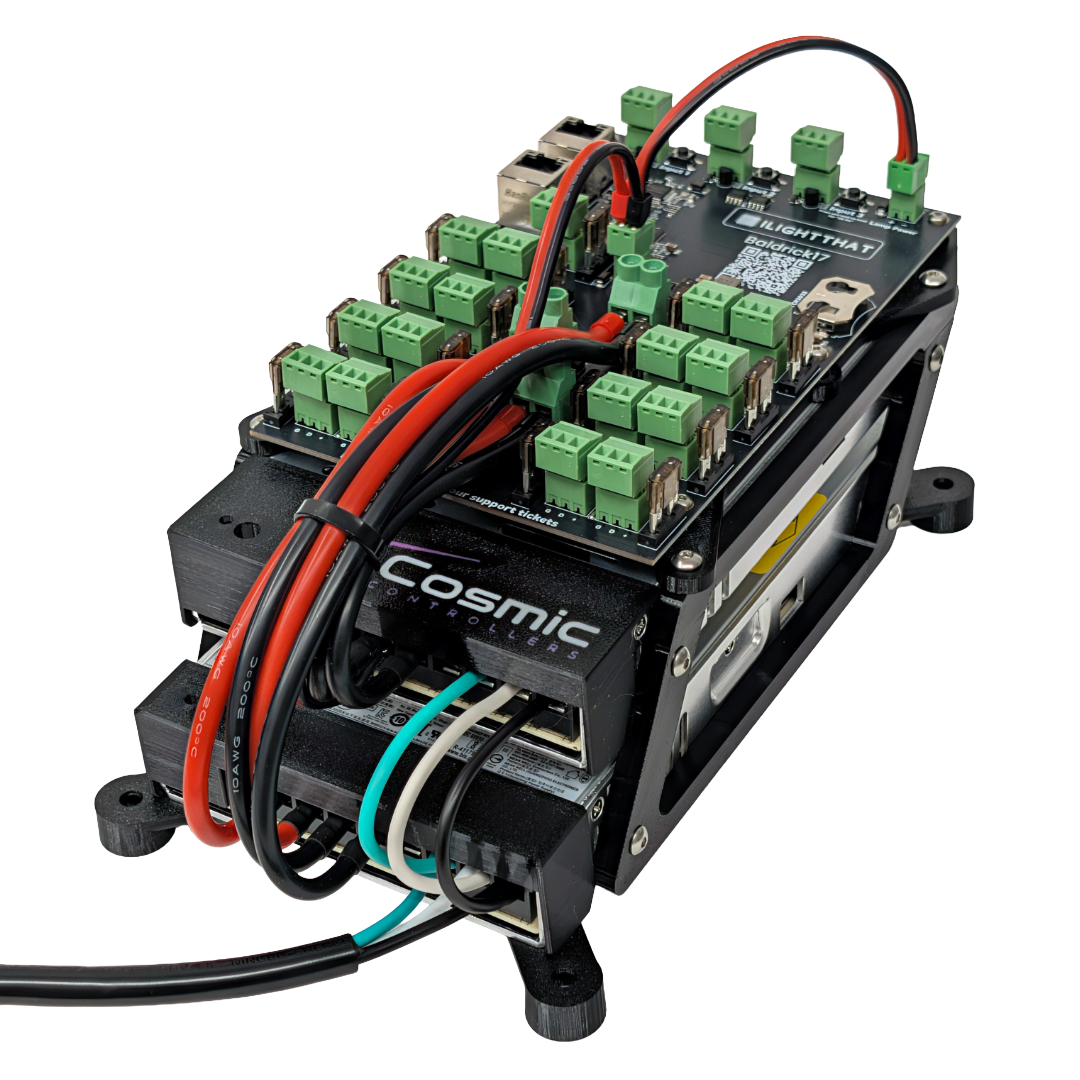

  • Baldrick17 ready-to-run pixel controller internal view showing the 17-port Baldrick board, Cosmic mounting system, and dual power supplies.

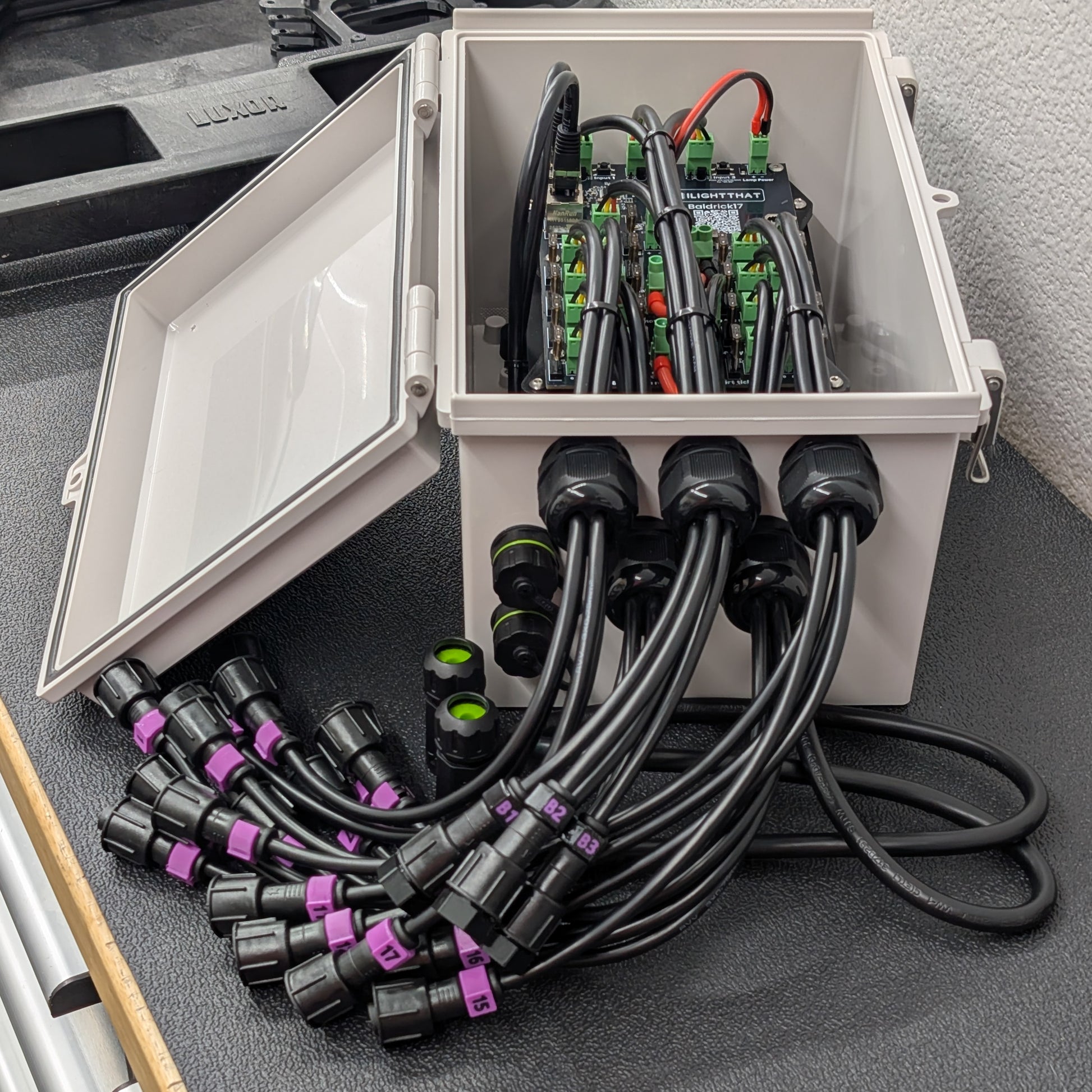

  • Angled close up view of Cosmic Pro-Series enclosure with lid open sitting on a work bench exposing the neatly wired interior.

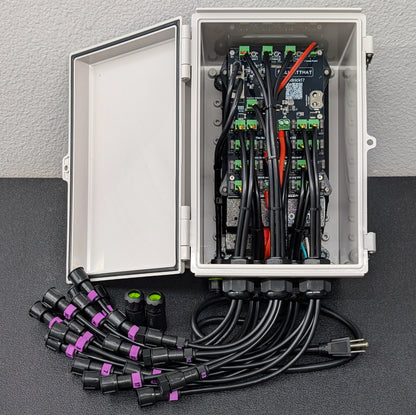

  • Cosmic Pro-Series prebuilt controller powered by the Baldrick17 board.

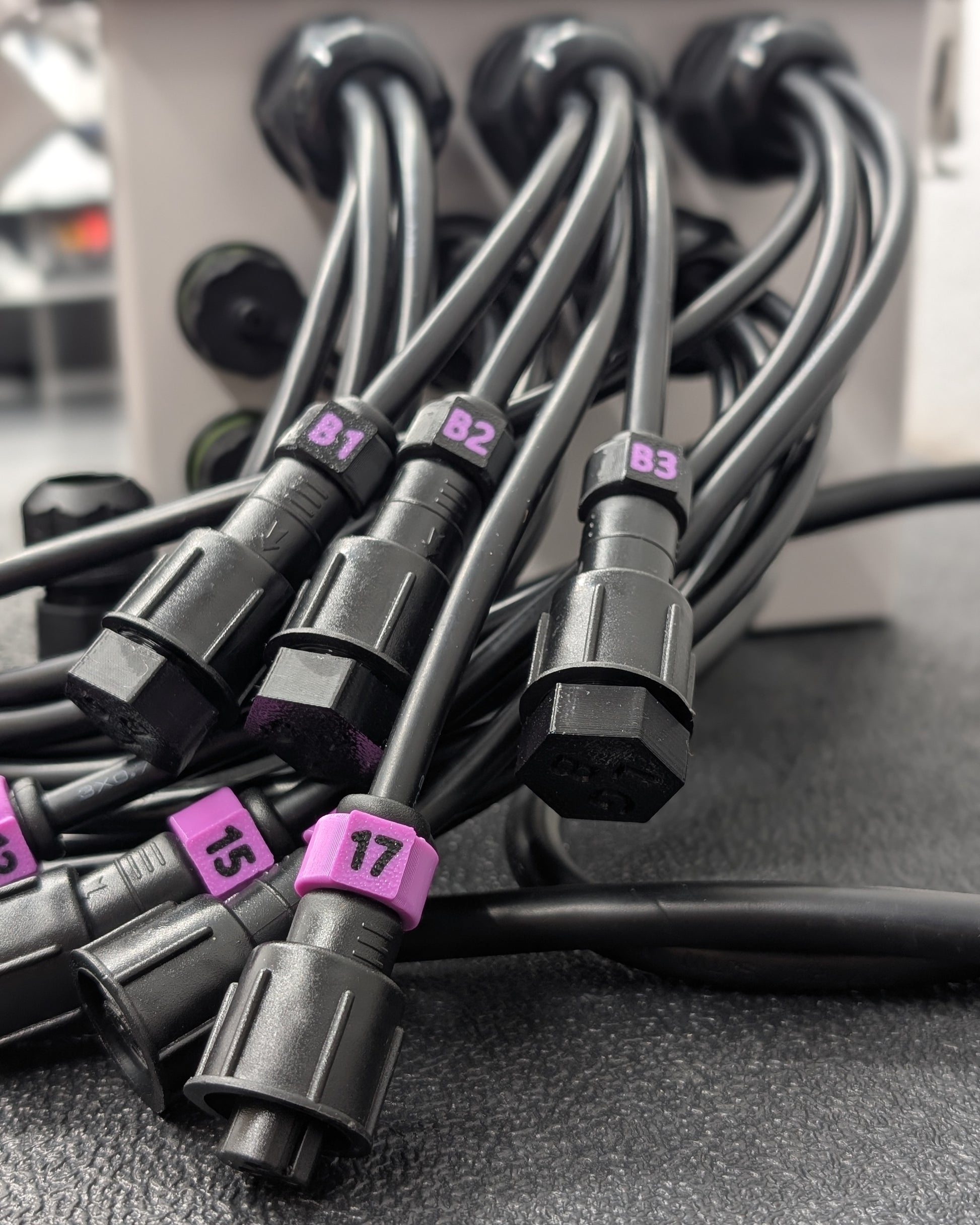

  • Close up image of black wiring with burple ID tags coming out of Cosmic Pro-Series weatherproof enclosure.

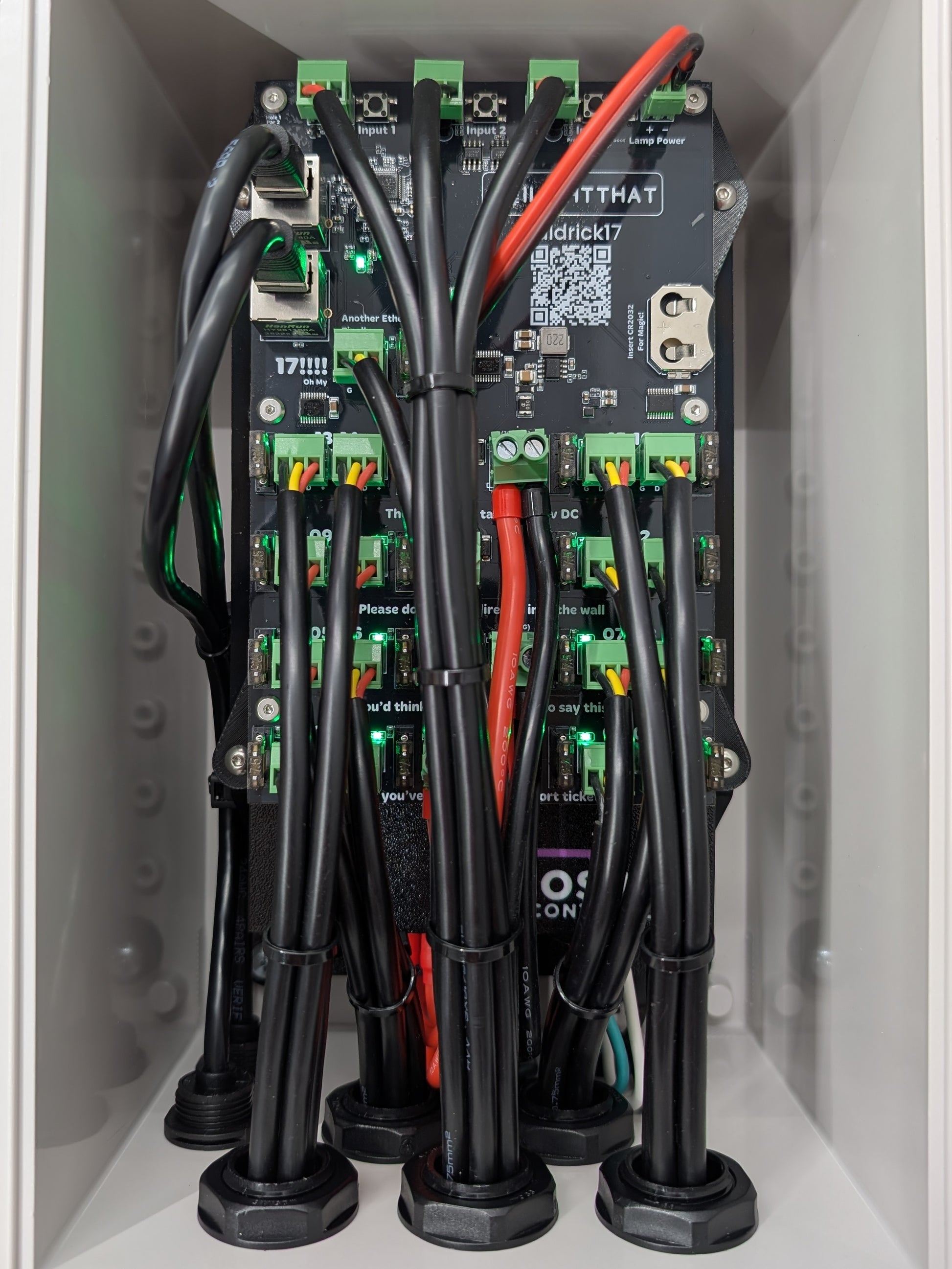

  • Close up of Baldrick17 board mounted inside grey plastic enclosure with red and black power wires running to it.

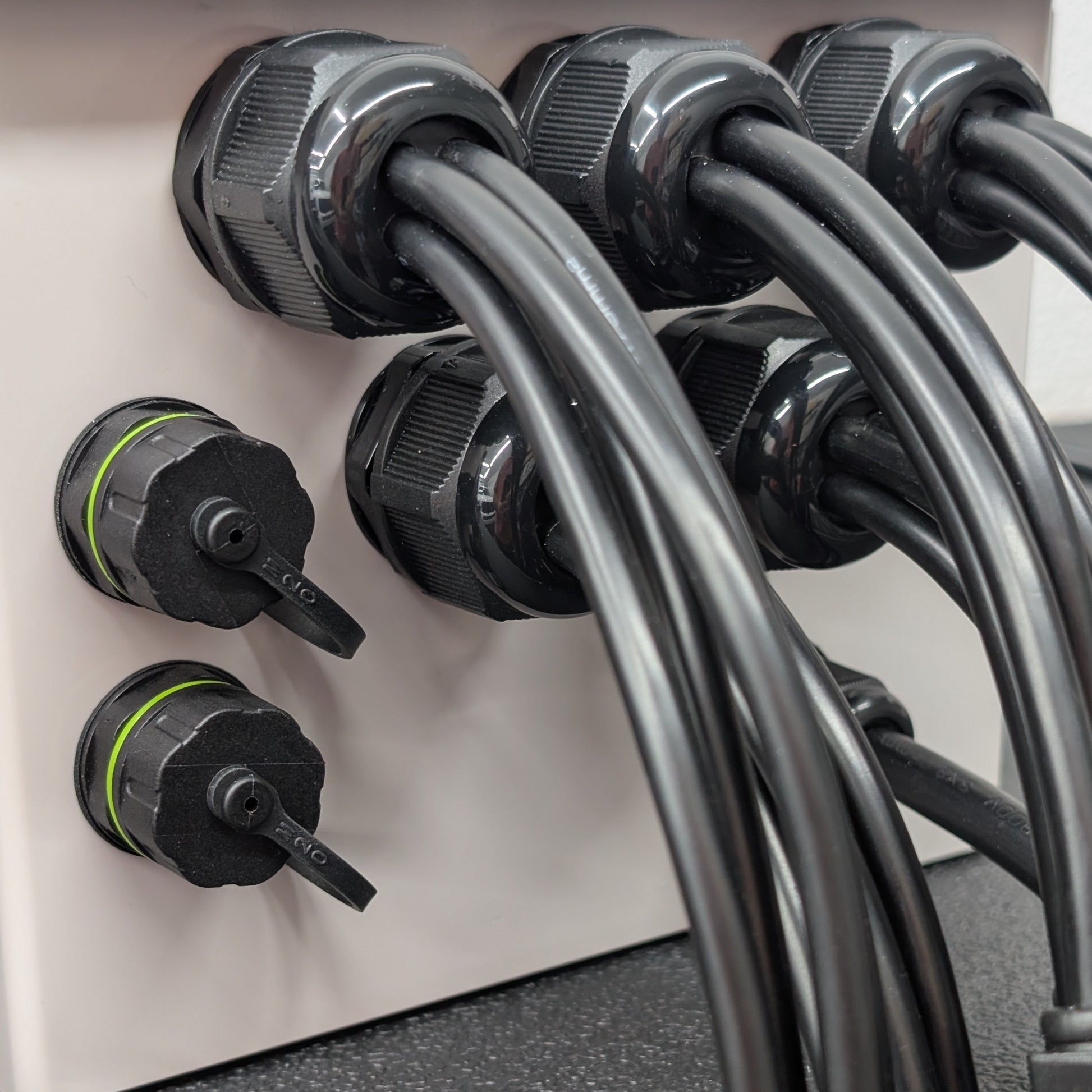

  • Close-up of 4-hole glands and ethernet passthrough connectors installed in grey plastic enclosure.
1 7

Baldrick17 17-Port Ready-to-Run Pixel Controller | Cosmic Pro-Series

Baldrick17 17-Port Ready-to-Run Pixel Controller | Cosmic Pro-Series

Low stock: 2 left

$679.00 USD
$679.00 USD
Sale Sold out
Shipping calculated at checkout.

The Cosmic Pro-Series Baldrick17 is a ready-to-run, prebuilt 17-output pixel controller for larger xLights/FPP displays. Built around the Baldrick17 controller board, it combines 17 xConnect pixel outputs, dual Mean Well 12V power supplies, dual Ethernet network connections, three externally accessible Turniput inputs, and a Boxco P-Series weather-resistant enclosure in a complete finished controller.

Each controller is assembled, wired, labeled, and tested before shipping.

  • 17 xConnect pixel outputs — up to 750 RGB pixels per port at 40 FPS
  • 12,750 RGB pixel controller data capacity
  • Dual 10/100 Ethernet ports for show-network connection and daisy chaining
  • Supports common RGB pixels and supported RGBW pixel types, including UCS2904
  • Dual Mean Well LRS-350-12 power supplies — 700 W total installed 12V capacity
  • 3 externally cabled Turniput inputs for buttons, sensors, triggers, illuminated controls, and supported API actions
  • Boxco P-Series weather-resistant enclosure

New to xLights or FPP? Please review our Before You Buy guide before purchasing.

Product Overview

The Cosmic Pro-Series turns the Baldrick17 controller board into a complete ready-to-run Ethernet pixel controller for show builders who want a finished enclosure instead of a bare controller board. It is designed for larger holiday lighting displays, commercial installations, mega trees, matrices, and high-density addressable RGB pixel projects.

The Baldrick17 provides 17 individually fused pixel outputs, dual Ethernet network connections, and three programmable Turniput inputs for interactive display control. Dual Mean Well LRS-350-12 power supplies provide 700 W of installed 12V power supply capacity.

The controller supports up to 12,750 RGB pixels for controller data output. Actual pixel power requirements depend on pixel type, brightness, cable length, voltage drop, and display layout, so power injection may still be required for larger installations.

Key Features

Pixel Output

  • 17 smart pixel outputs
  • Up to 750 RGB pixels per port at 40 FPS
  • Total controller data capacity: 12,750 RGB pixels
  • Compatible with common addressable RGB pixels and supported RGBW pixel types, including UCS2904
  • Individually fused outputs using 7.5 A mini blade fuses
  • Power banks arranged in a 4 + 4 + 4 + 4 + 1 output layout

Power Management

  • 2 × Mean Well LRS-350-12 12V power supplies
  • 700 W total installed 12V power supply capacity
  • 10 AWG high-temp silicone wire for main power distribution
  • PSU terminal safety covers
  • 14/3 SJTW outdoor-rated power cord

Network & Integration

  • 2 × 10/100 Ethernet ports
  • Supports show-network in/out and daisy-chained network connections
  • 2 waterproof RJ45 panel couplers provide external network access
  • Supports DDP, Art-Net, E1.31, and sACN
  • Push from xLights integration with supported xLights versions
  • Receives pixel data over the network from xLights, FPP, or other supported control/playback systems
  • Use wired Ethernet for normal show control

Turniput Inputs & Interactive Control

  • 3 programmable Turniput input ports
  • Turniput connections are externally cabled through the enclosure on the standard Cosmic Pro-Series build
  • Supports buttons, sensors, triggers, illuminated controls, and supported FPP API actions
  • Onboard physical buttons provide testing and reset functions
  • QR code provides quick access to Baldrick documentation

Add Interactive Control

Pair the Baldrick17 with Cosmic Launch Control™ for a plug-and-play interactive show trigger system using the controller's Turniput inputs.

Bundle & Save: Save $25 when purchased together. Discount applies automatically at checkout.

Enclosure & Build

  • Boxco P-Series weather-resistant enclosure with stainless-steel hardware
  • 4-hole IP68 cable glands for organized pixel and Turniput cable routing
  • 2 waterproof RJ45 panel couplers
  • 14/3 SJTW outdoor-rated power cord
  • Cosmic Cable ID clips for output identification
  • xConnect end caps for unused pixel outputs
  • Pre-wired, labeled, and tested before shipping

Technical Specifications

Controller Board Baldrick17
Controller Type Ready-to-run / prebuilt Ethernet pixel controller
Pixel Outputs 17 ports — up to 750 RGB pixels per port at 40 FPS
Total RGB Pixel Capacity 12,750 RGB pixels controller data capacity
Output Fusing 7.5 A mini blade fuse per output
Power Bank Layout 4 + 4 + 4 + 4 + 1 outputs
Supported Pixel Types Common addressable RGB pixels plus supported RGBW pixel types, including UCS2904
Ethernet 2 × 10/100 Ethernet ports
External Network Connections 2 × waterproof RJ45 panel couplers
Power Supplies 2 × Mean Well LRS-350-12
Installed Power Supply Capacity 700 W total / 12V DC
Interactive Inputs 3 × externally cabled programmable Turniput ports
Protocols DDP, Art-Net, E1.31, sACN
Software Compatibility xLights, FPP, and other supported network lighting control systems
Enclosure Boxco P-Series weather-resistant enclosure
Pixel Connectors xConnect standard; Ray Wu / HC available by request
Warranty 1-year limited warranty; power supplies covered per manufacturer terms

Compatibility Notes

  • This is a ready-to-run pixel controller build, not a bare controller board.
  • Use wired Ethernet for normal show control.
  • This is a pixel controller, not an FPP player or show computer.
  • The 12,750-pixel specification describes controller data capacity and does not mean the installed 700 W of power supply capacity can power 12,750 pixels in every installation.
  • Power injection may be required depending on pixel count, brightness, cable length, voltage drop, and display layout.
  • If you plan to use RGBW pixels or non-standard pixel types, please confirm the pixel IC/protocol before ordering.

Included Accessories

Recommended Accessories

Warranty & Customization

Every ready-to-run Cosmic controller includes a 1-year limited warranty. See our Warranty Policy for details.

Custom options such as vents, fans, connector changes, or accessory integration may be available. For custom configurations, please contact us before ordering.
