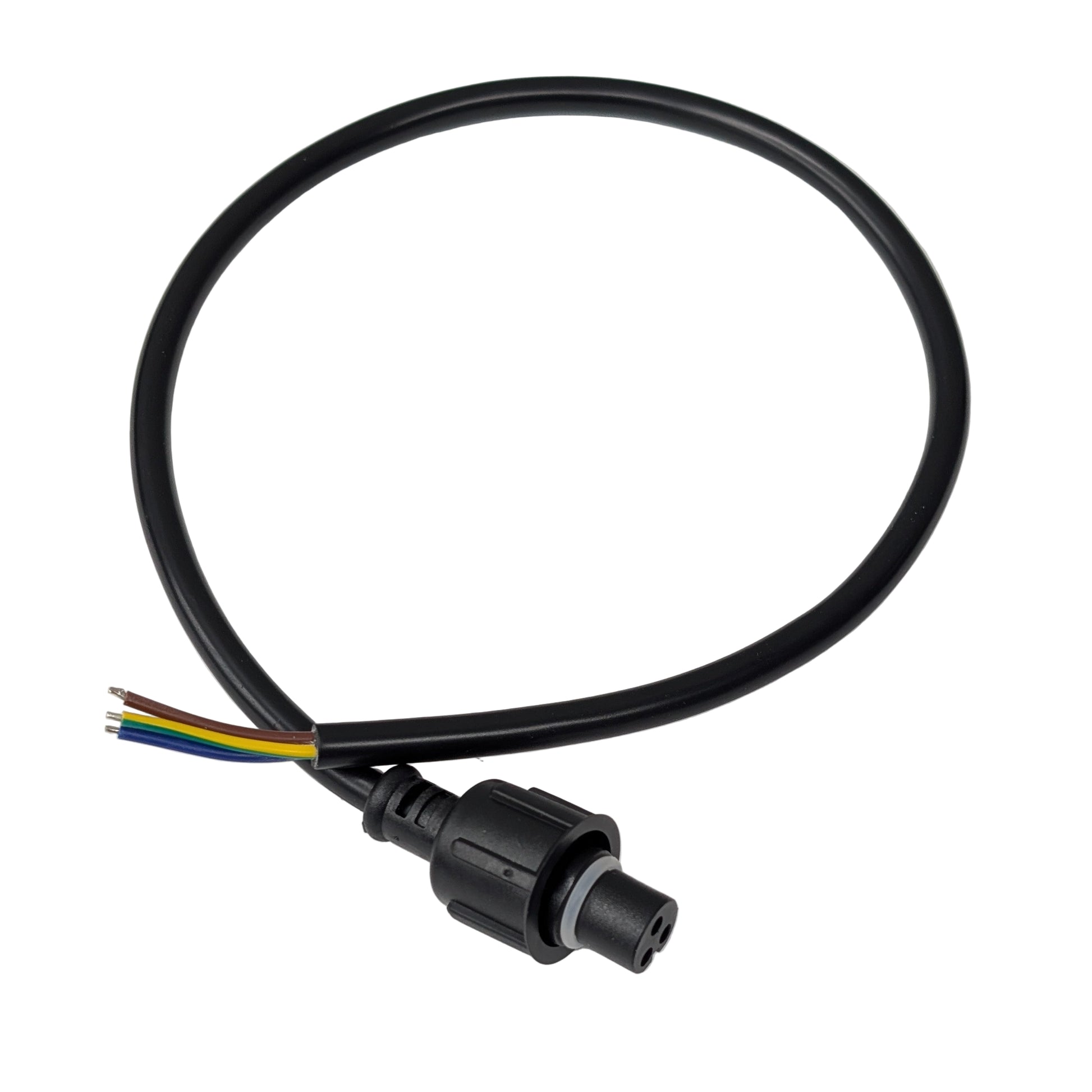

xConnect 3-Pin Female Pigtail – 50cm / 20in Round Waterproof with Seal

The xConnect 3-Pin Female Pigtail is a 20-inch (50 cm) round-cable pigtail designed for pixel controller outputs, receiver builds, repairs, and other addressable RGB lighting projects. It uses 18 AWG conductors and a silicone sealing ring for a secure, weather-resistant connection when properly mated with a compatible xConnect connector.

The opposite end is unterminated for direct wiring to a controller, receiver board, terminal block, or other compatible device.

• xConnect 3-pin female connector
• 50 cm / 20 in cable length
• 18 AWG conductors
• Round outer cable jacket
• Silicone sealing ring for weather-resistant mating
• Ideal for pixel controller outputs, remote receivers, repairs, and DIY builds

Product Overview

This pigtail provides a simple way to add or replace an xConnect output connection on a pixel controller or receiver. The 20-inch cable length provides enough reach for most enclosure layouts while keeping internal wiring manageable.

The round cable jacket also works well with multi-hole cable glands commonly used in weather-resistant pixel-controller enclosures.

Key Features

• Standard xConnect compatibility for common 3-wire addressable pixel systems
• 18 AWG wiring for power, ground, and data conductors
• 50 cm / 20 in length for flexible enclosure routing
• Silicone sealing ring helps protect the connector interface from moisture when properly connected
• Unterminated wire end for direct connection to controller boards, terminals, or custom wiring
• Suitable for new builds or replacing damaged output pigtails

Wire Color Reference

Important: Wire colors can vary between manufacturers and pixel products. Always verify polarity and pinout before connecting power.

Technical Specifications

Typical Applications

• Pixel controller outputs
• Remote receiver boxes
• Replacement controller pigtails
• DIY pixel-controller builds
• Custom enclosure wiring
• Addressable RGB lighting projects

Installation Notes

• Verify connector pinout and polarity before applying power.
• Use appropriate strain relief or cable glands where the pigtail passes through an enclosure wall.
• The weather-resistant seal depends on a fully seated and properly tightened compatible xConnect connection.
• Protect unused connectors with a compatible end cap when exposed outdoors.

Recommended Accessories

• Cable ID Clips - Label controller outputs for easier setup and troubleshooting.
• Plastic End Cap - Male Plug - Protect unused female xConnect pigtails from dust and moisture.
• M25 4-Hole Cable Gland - Route multiple round pigtail cables through one enclosure opening.
