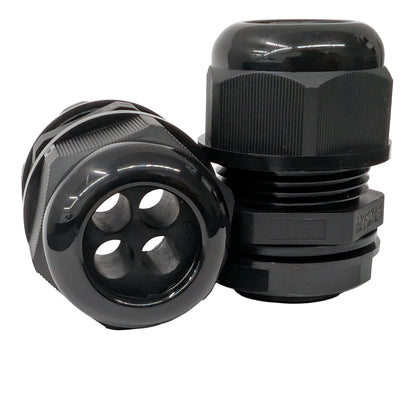

M25 4-Hole Cable Gland – 5–7mm, IP68 Rated

The M25 4-Hole Cable Gland provides a clean way to route up to four round pigtail cables through a single enclosure opening. It is the same style of multi-hole gland used in our ready-to-run pixel controllers for organized cable entry in pixel controller, remote receiver, junction box, and outdoor electronics builds.

Each of the four cable openings is designed for round cable jackets approximately 5–7 mm in diameter. Available individually or in convenient 4-pack quantities.

• M25 × 1.5 metric thread
• 4 cable openings per gland
• 5–7 mm cable range per opening
• Manufacturer-listed IP68 rating when properly installed with suitable round cables
• Black nylon body with multi-hole rubber sealing insert
• Ideal for xConnect-style pigtails and similar round 3-core cable

Why Use a 4-Hole Cable Gland?

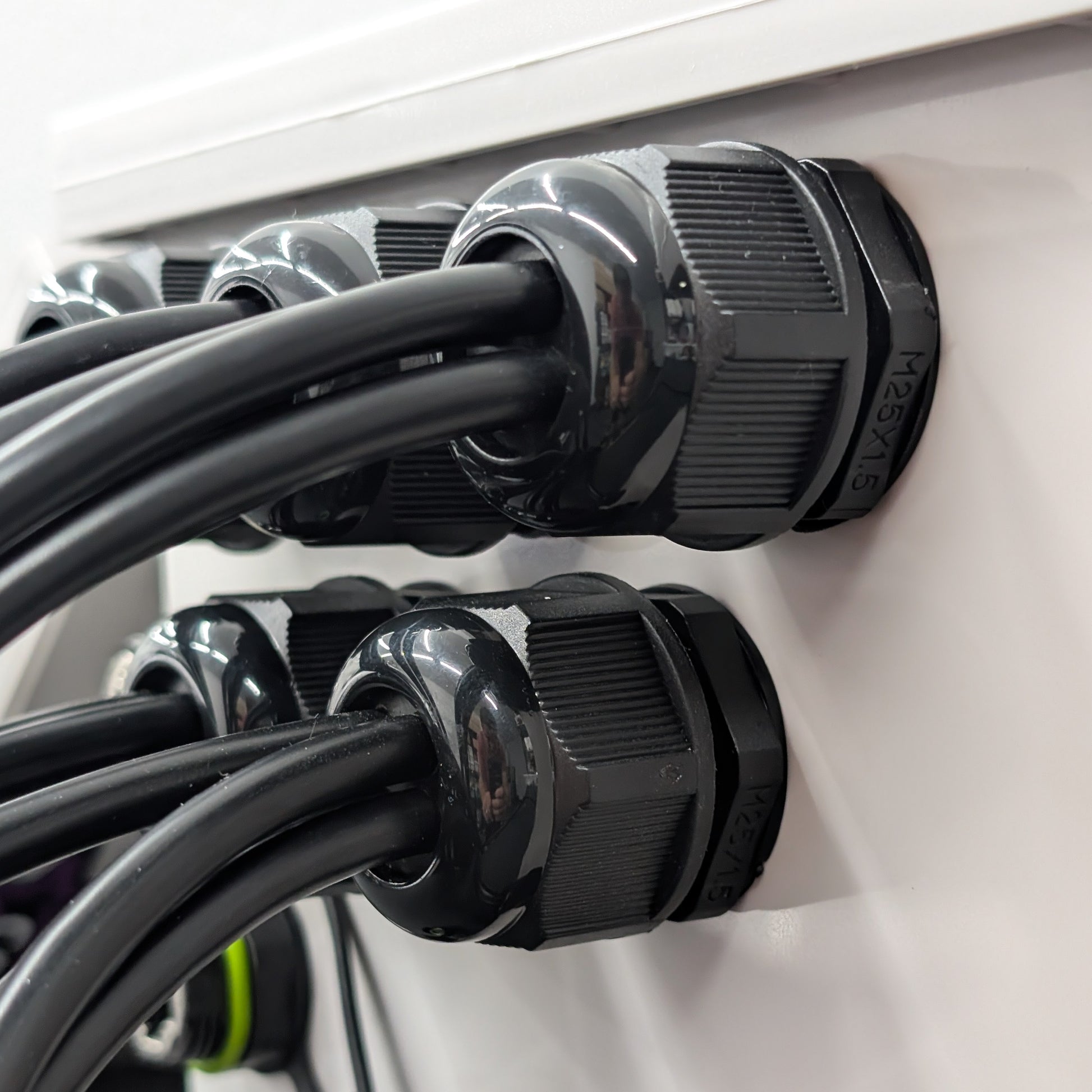

Instead of drilling four separate enclosure holes and installing four individual glands, one M25 multi-hole gland can route up to four similar cables through a single opening. This reduces drilling, keeps cable groups organized, and creates a cleaner enclosure layout.

• Routes up to four cables through one enclosure opening
• Reduces the number of drilled holes and individual cable glands required
• Helps reduce potential enclosure entry points
• Keeps related pigtails grouped together
• Provides a clean, serviceable cable layout

Fits Common Pixel Pigtail Cable

Each opening is designed for a round cable jacket approximately 5–7 mm in diameter, making this gland suitable for many common 3-core xConnect-style pixel pigtails and similar round cable.

Always measure the outside diameter of your cable before installation. Cable diameter can vary between manufacturers, wire gauges, and jacket types.

Technical Specifications

Common Uses

• Pixel controller enclosures
• Remote receiver boxes
• xConnect-style pigtail pass-throughs
• Weather-resistant junction boxes
• Outdoor electronics enclosures
• DIY controller and receiver builds
• Multi-cable enclosure entry

Installation Notes

• Use one round cable per opening.
• Measure the cable outside diameter before installation.
• Cables outside the 5–7 mm range may not seal correctly.
• For best sealing performance, each opening should contain a properly sized round cable or otherwise be appropriately sealed.
• Not intended for flat cable, loose individual conductors, or multiple cables through a single opening.
• Tighten nylon components securely without over-tightening.

Recommended Accessories

For easier installation, pair this gland with our 33mm Cable Gland Tool Set. The two-piece tool set helps tighten the gland body locknut and sealing nut without requiring bulky wrenches or sockets inside the enclosure.

• Pass-through design allows installed cables to remain in place while tightening
• Fits a standard 3/8" drive ratchet
• Compact design for tight enclosure layouts
• 3D printed from durable PETG

Need to Drill Your Enclosure?

Our 6–25mm Titanium Spiral Step Drill Bit is a convenient option for preparing plastic enclosures for M25 cable glands. The stepped design makes it easier to gradually open the hole to the required diameter.

Bulk/project quantities: Building multiple controllers or need larger quantities? Contact us at info@cosmiccontrollers.com for bulk pricing.
