Baldrick8 V2 DIY Pixel Controller Kit | Cosmic 8-Series

The Cosmic 8-Series Baldrick8 V2 DIY Pixel Controller Kit brings together the controller board, enclosure, power supply, wiring, connectors, mounting hardware, and accessories needed to build a complete 8-output pixel controller for xLights/FPP displays.

Built around the updated Baldrick8 V2, this kit includes the same professional-grade components used in our ready-to-run Cosmic 8-Series controllers while allowing you to handle the enclosure preparation, assembly, and wiring yourself.

• Baldrick8 V2 8-output pixel controller board
• 8 xConnect pixel outputs — up to 750 RGB pixels per port at 40 FPS
• 6,000 RGB pixel controller output capacity
• Dual 10/100 Ethernet ports with onboard network switch for daisy-chained network connections
• Mean Well LRS-350-12 350 W power supply
• Boxco P-Series weather-resistant enclosure
• Two waterproof RJ45 panel connections for the Baldrick8 V2 Ethernet ports
• Mounting system, wiring, glands, hardware, cable ID clips, and drilling template included

New to xLights or FPP? Please review our Before You Buy guide before purchasing.

Product Overview

The Cosmic 8-Series DIY kit is designed for show builders who want to assemble their own controller without sourcing the board, enclosure, power supply, pigtails, cable glands, wiring, mounts, and installation hardware from multiple vendors.

The updated Baldrick8 V2 adds a second 10/100 Ethernet port and onboard network switch, allowing controllers or other network devices to be connected in a daisy-chain configuration. This V2 kit includes two waterproof RJ45 panel connections and an updated enclosure drilling template to support both Ethernet ports.

The included Mean Well LRS-350-12 provides 350 W of installed 12V power supply capacity. The Baldrick8 V2 itself supports up to 6,000 RGB pixels for data output, but actual power requirements depend on pixel type, brightness, cable length, voltage drop, and display layout. Power injection may be required for larger pixel loads.

Key Features

Baldrick8 V2 Pixel Control Platform

• 8 pixel outputs
• Up to 750 RGB pixels per port at 40 FPS
• Total controller output capacity: 6,000 RGB pixels
• Compatible with common addressable RGB pixels and supported RGBW pixel types, including UCS2904
• Individually fused outputs using 7.5 A mini blade fuses
• 2 controller-board power inputs

Network & Integration

• 2 × 10/100 Ethernet ports
• Built-in Ethernet switch supports daisy-chained network connections
• Two waterproof RJ45 panel connections included for enclosure installation
• Supports DDP, Art-Net, E1.31, and sACN
• Push from xLights integration with supported xLights versions
• Receives pixel data over the network from xLights, FPP, or other supported control/playback systems

Button Inputs & Onboard Controls

• 3 programmable input connections on the Baldrick8 V2 board
• Green Phoenix-style terminal connectors allow user wiring for external buttons, sensors, or other supported triggers
• Onboard physical buttons for testing and control functions
• Built-in test modes and effects generator
• External button or sensor wiring is not included with the standard kit

Power & Wiring Components

• Mean Well LRS-350-12 12V / 350 W power supply
• 10 AWG high-temp silicone wire for main DC power distribution
• Crimp ferrules and terminals for controller assembly
• SJTW outdoor-rated power cord
• PSU terminal safety cover

Enclosure & Hardware

• Boxco P-Series weather-resistant enclosure with stainless hardware
• 8 xConnect female pixel-output pigtails
• 2 × M25 4-hole IP68 cable glands for pixel output routing
• 2 waterproof RJ45 panel connections
• Power-cord cable gland
• PETG mounting plates and brackets
• Cosmic Cable ID clips
• Updated Baldrick8 V2 enclosure drilling template
• 33 mm PETG cable-gland wrench/socket tool set

What's Included

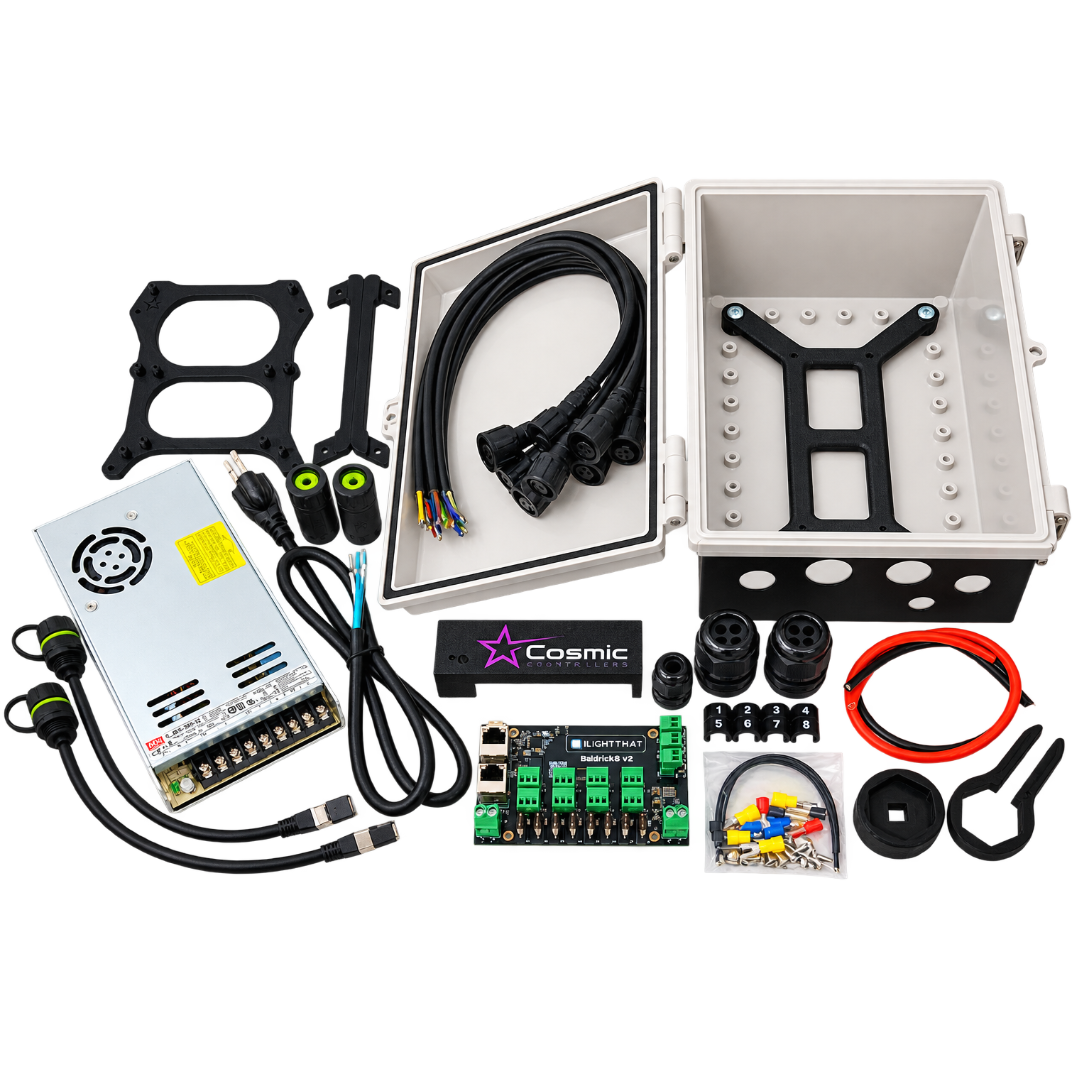

• 1 × Baldrick8 V2 pixel controller board
• 1 × Boxco P-Series weather-resistant enclosure
• 1 × Mean Well LRS-350-12 12V / 350 W power supply
• 8 × xConnect female pixel-output pigtails
• 2 × waterproof RJ45 panel connections
• 2 × M25 IP68 4-hole cable glands
• 1 × M16L power-cord cable gland
• 1 × 16/3 SJTW outdoor-rated power cord
• PETG mounting plates and brackets
• 10 AWG silicone power wiring
• Crimp ferrules and terminals
• Stainless mounting hardware
• Cosmic Cable ID clips
• PSU terminal cover
• Baldrick8 V2 enclosure drilling template
• 33 mm PETG cable-gland wrench/socket tool set

Technical Specifications

What You Need to Provide

• Basic hand tools such as screwdrivers, cutters, and hex keys
• Drill and appropriate bits or hole saws for enclosure preparation
• Ferrule and terminal crimping tools
• Multimeter recommended for wiring verification and testing

Skill Level & Safety

This kit requires enclosure drilling, component installation, low-voltage DC wiring, and connection of the included AC power components. It is intended for builders who are comfortable performing this work safely and following applicable electrical requirements and best practices.

If you prefer a controller that is already assembled, wired, labeled, and tested, choose the Cosmic 8-Series Baldrick8 V2 Ready-to-Run Pixel Controller.

Compatibility Notes

• This is a DIY controller kit and requires assembly before use.
• The Baldrick8 V2 includes two Ethernet ports with an onboard switch for daisy-chained network connections.
• The three programmable input connections are available on the controller board through Phoenix-style terminals.
• This is a pixel controller kit, not an FPP player or show computer.
• The 6,000-pixel specification describes controller data capacity and does not mean the included 350 W power supply can power 6,000 pixels in every installation.
• Power injection may be required depending on pixel count, brightness, cable length, voltage drop, and display layout.
• If you plan to use RGBW pixels or non-standard pixel types, please confirm the pixel IC/protocol before ordering.

Why Choose a Cosmic DIY Kit

Cosmic DIY kits use the same curated components found in our ready-to-run controllers, giving you a complete foundation for a clean controller build without sourcing the enclosure, power supply, mounting hardware, wiring, glands, pigtails, and accessories separately.

You handle the assembly while we handle the parts selection and compatibility.
