Baldrick8 V2 8-Port Ready-to-Run Pixel Controller | Cosmic 8-Series

The Cosmic 8-Series Baldrick8 V2 is a ready-to-run, prebuilt 8-output pixel controller for xLights/FPP displays. Built around the updated Baldrick8 V2 controller board, it combines 8 xConnect pixel outputs, dual Ethernet connections with an onboard network switch, Mean Well 12V power, and a Boxco P-Series weather-resistant enclosure in a complete finished controller.

Each controller is assembled, wired, labeled, and tested before shipping.

• 8 xConnect pixel outputs — up to 750 RGB pixels per port at 40 FPS
• 6,000 RGB pixel controller output capacity
• Dual 10/100 Ethernet ports with onboard network switch for daisy-chained network connections
• Supports common RGB pixels and supported RGBW pixel types, including UCS2904
• Available in 350 W or 700 W power configurations
• 3 programmable onboard input connections for buttons, sensors, triggers, or supported FPP API actions
• Boxco P-Series weather-resistant enclosure

New to xLights or FPP? Please review our Before You Buy guide before purchasing.

Product Overview

The Cosmic 8-Series turns the Baldrick8 V2 controller board into a complete ready-to-run pixel controller for show builders who want a finished enclosure instead of a bare controller board. It is designed for holiday lighting displays, smaller commercial installations, and addressable RGB pixel projects that need a compact, tested 8-output controller.

The V2 design adds a second Ethernet port and onboard network switch, allowing controllers or other network devices to be connected in a daisy-chain configuration without requiring a separate network switch at every controller location.

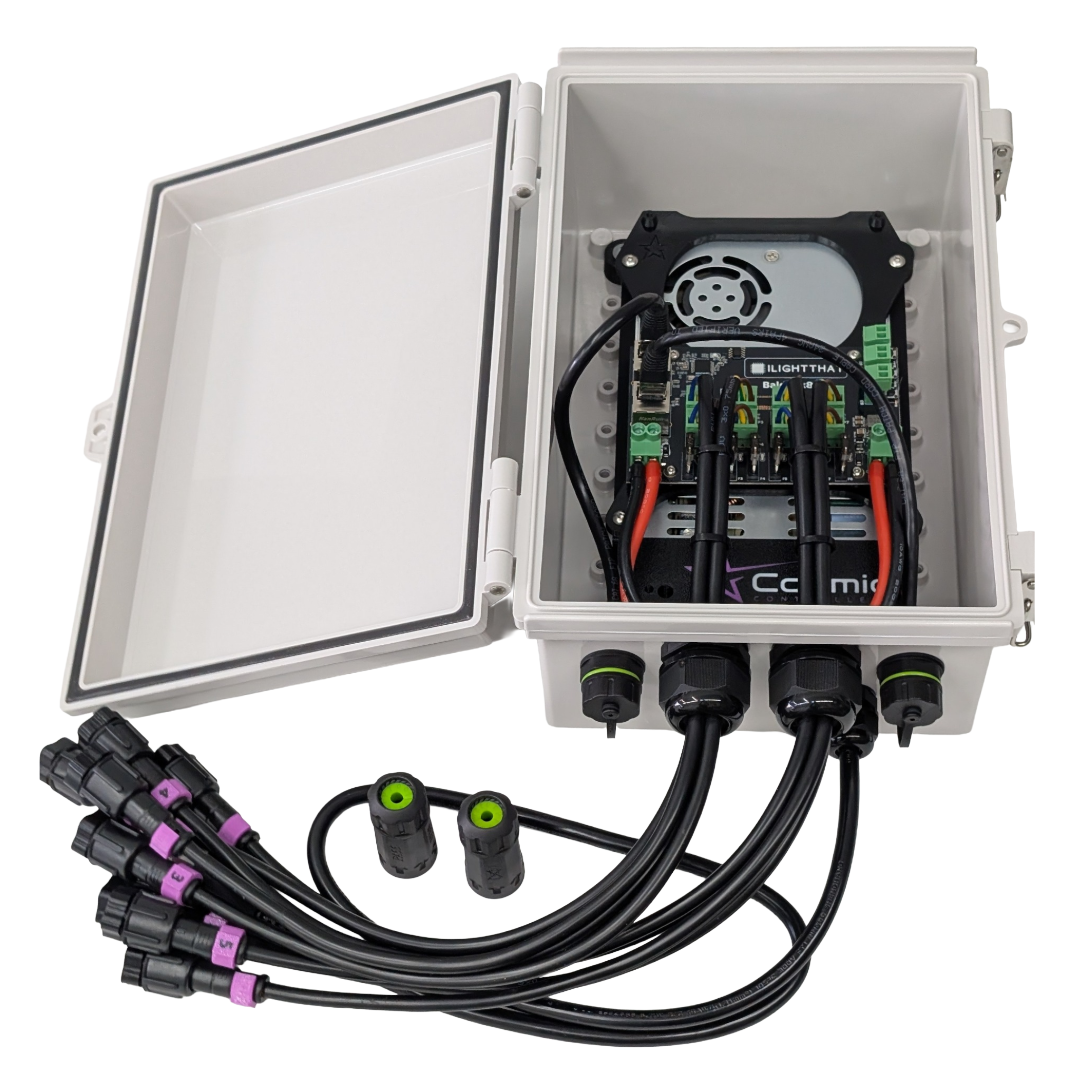

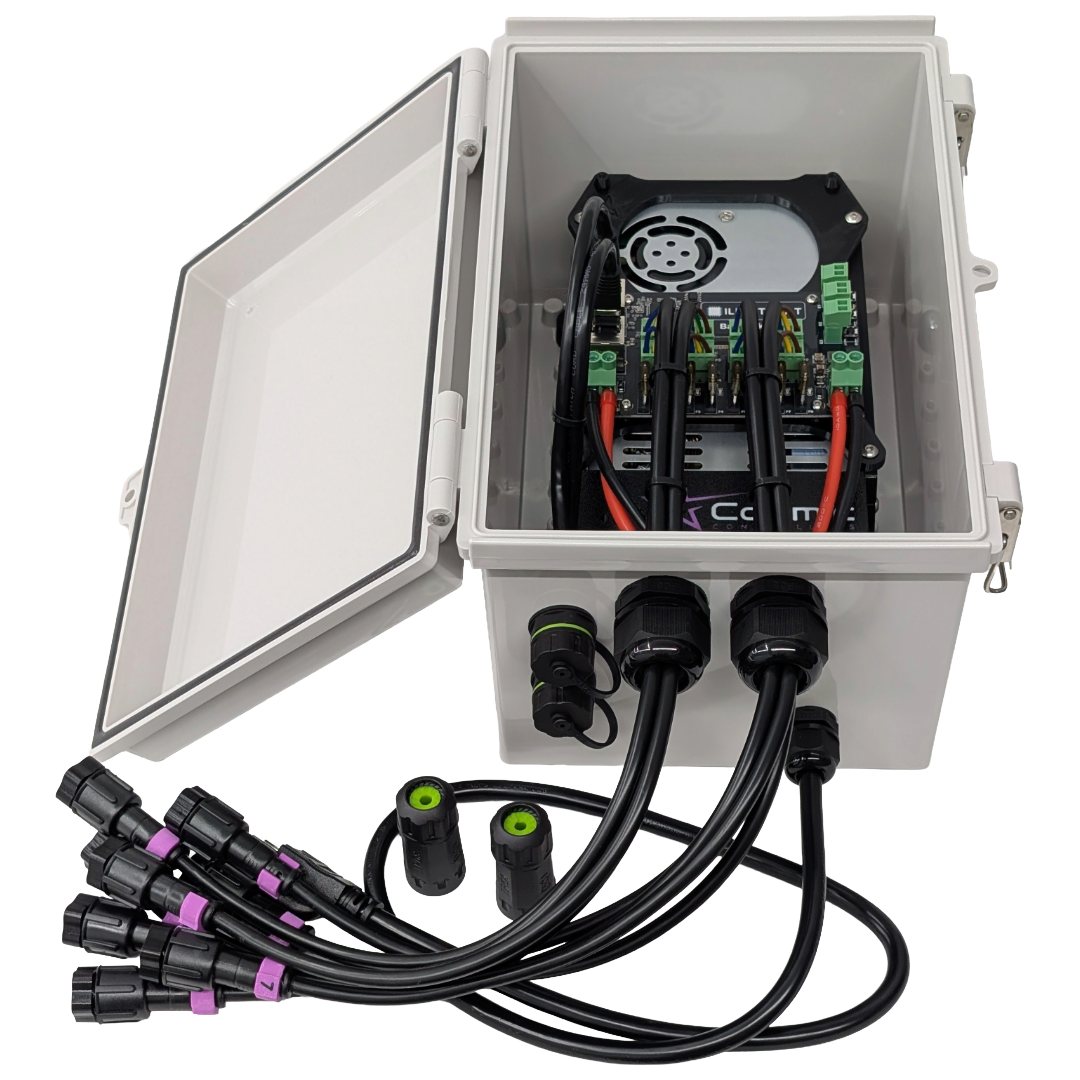

This build includes pre-installed xConnect pigtails, two waterproof RJ45 panel couplers, outdoor-rated cable routing, labeled internal wiring, and a tested enclosure layout. Choose the 350 W version for smaller layouts or the 700 W version when additional onboard power capacity is needed.

Key Features

Pixel Output

• 8 pixel outputs
• Up to 750 RGB pixels per port at 40 FPS
• Total controller output capacity: 6,000 RGB pixels
• Compatible with common addressable RGB pixels and supported RGBW pixel types, including UCS2904
• Individually fused outputs using 7.5 A mini blade fuses

Power Management

• Available in 350 W or 700 W configurations

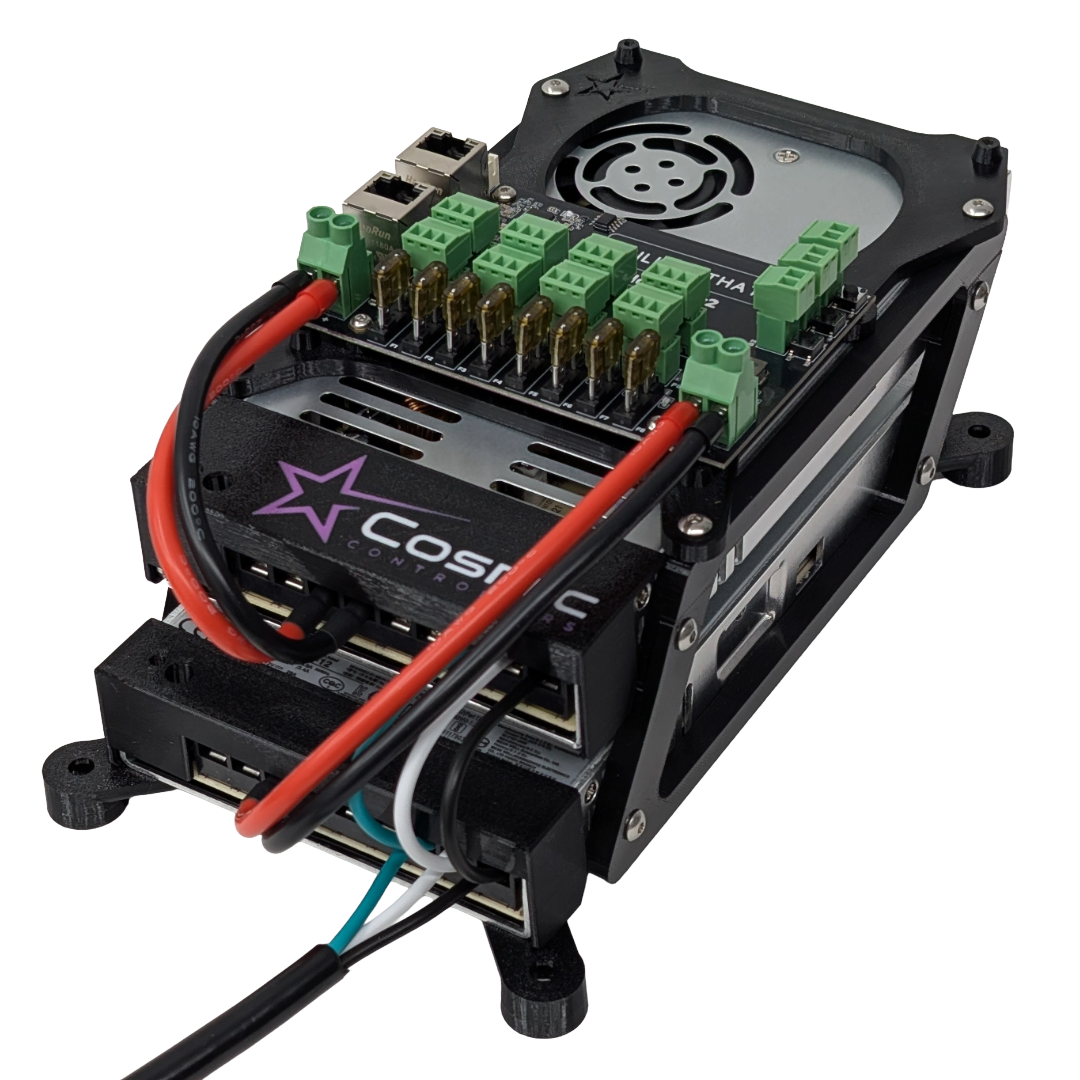

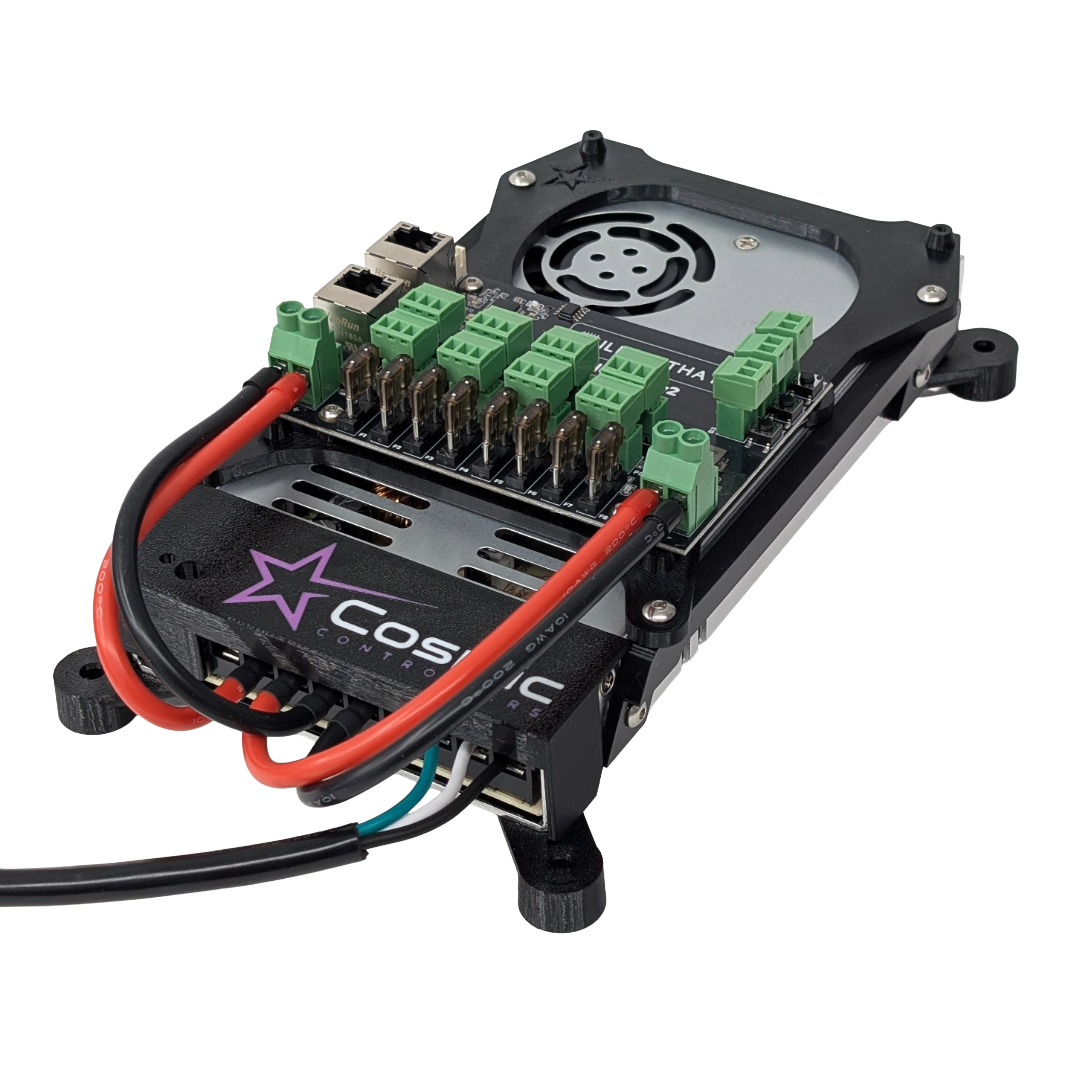

• Single or dual Mean Well LRS-350-12 12V power supply configuration, depending on selected variant
• 10 AWG high-temp silicone wire for main power distribution
• Two Baldrick8 V2 power inputs for output power distribution

Network & Integration

• 2 × 10/100 Ethernet ports
• Built-in Ethernet switch supports daisy-chained network connections
• Two waterproof RJ45 panel couplers provide external network access
• Supports DDP, Art-Net, E1.31, and sACN
• Push from xLights integration with supported xLights versions
• Receives pixel data over the network from xLights, FPP, or other supported control/playback systems
• Use wired Ethernet for normal show control

Button Inputs & Onboard Controls

• 3 programmable input connections on the Baldrick8 V2 board
• Green Phoenix-style terminal connectors allow user wiring for external buttons, sensors, or other supported triggers
• Onboard physical buttons for testing and control functions
• Built-in test modes and effects generator
• Input connections are not externally cabled through the enclosure on the standard Cosmic 8-Series build

Enclosure & Build

• Boxco P-Series weather-resistant enclosure with stainless hardware
• 4-hole IP68 cable glands for clean pixel output routing
• 2 waterproof RJ45 panel couplers
• SJTW outdoor-rated power cord
• Pre-wired, labeled, and tested before shipping

Technical Specifications

Compatibility Notes

• This is a ready-to-run pixel controller build, not a bare controller board.
• Use wired Ethernet for normal show control.
• This is a pixel controller, not an FPP player or show computer.
• The Baldrick8 V2 includes two Ethernet ports with an onboard switch for daisy-chained network connections.
• The three programmable input connections are available on the controller board but are not externally cabled through the enclosure on the standard build.
• External buttons, sensors, or other supported triggers may be connected by the user through the onboard Phoenix-style terminals.
• Power injection may still be required depending on pixel count, cable length, voltage drop, and display layout.
• If you plan to use RGBW pixels or non-standard pixel types, please confirm the pixel IC/protocol before ordering.

Included Accessories

• Cosmic Cable ID clips
• 2 × waterproof RJ45 panel couplers
• PSU terminal cover
• Plastic xConnect end cap, male plug

Recommended Accessories

• Wall Mount Bracket Kit, 4-Pack

Warranty & Customization

Every ready-to-run Cosmic controller includes a 1-year limited warranty. See our Warranty Policy for details.

Custom options such as vents, fans, connector changes, or accessory integration may be available. For custom configurations, please contact us before ordering.
