Baldrick Input8 Interactive Show Controller | Cosmic Interact Series

8 Interactive Inputs. 16 Trigger Actions. Put Visitors in Control.

Let visitors become part of your lighting display. Give guests the ability to choose a Christmas song, activate a Halloween effect, trigger a lighting sequence, or interact with illuminated buttons and sensors.

The Cosmic Interact Series Baldrick Input8 Ready-to-Run Controller brings interactive control to xLights/FPP displays with 8 externally accessible Turniput inputs, up to 16 configurable trigger actions, and 2 local pixel outputs.

Connect compatible buttons or sensors, configure their actions through the Baldrick web interface, and bring your display to life. Supported FPP and Baldrick integrations do not require custom programming.

• 8 externally accessible Turniput inputs for buttons, sensors, switches, and compatible interactive devices
• Up to 16 configurable trigger actions using press and hold functions across all 8 inputs
• Control FPP playlists, songs, and sequences through supported network commands
• Illuminated button support with configurable On, Off, Flash, and Breathe lamp modes
• Trigger compatible BaldrickDMX and BaldrickSwitchy devices for additional lighting and special effects
• 2 local xConnect pixel outputs — up to 750 RGB pixels per port at 40 FPS
• Dual Ethernet ports for show-network integration and daisy chaining
• Mean Well LRS-150-12 power supply — 150W installed 12V capacity

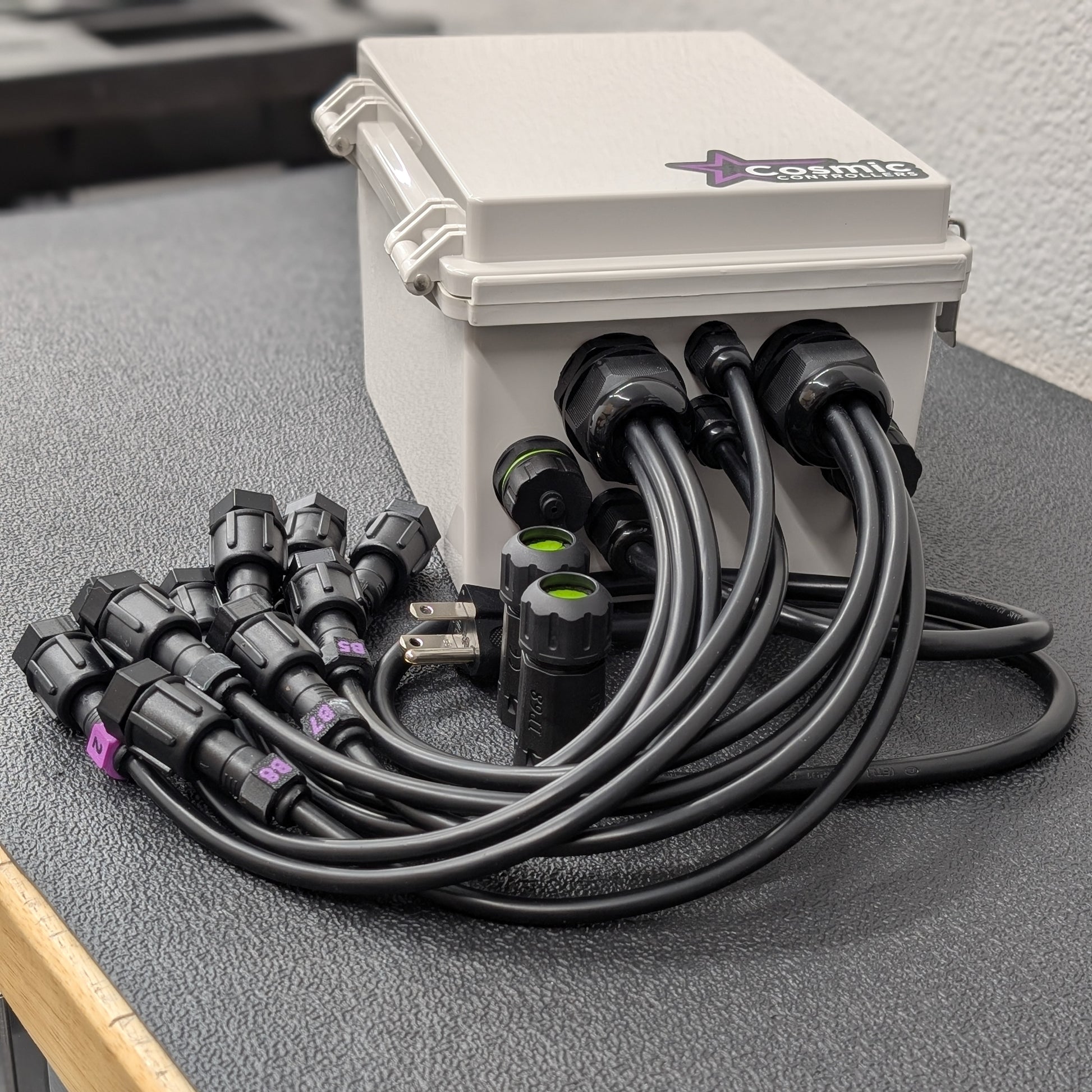

• Boxco P-Series weather-resistant enclosure with waterproof connections and included wall-mount brackets

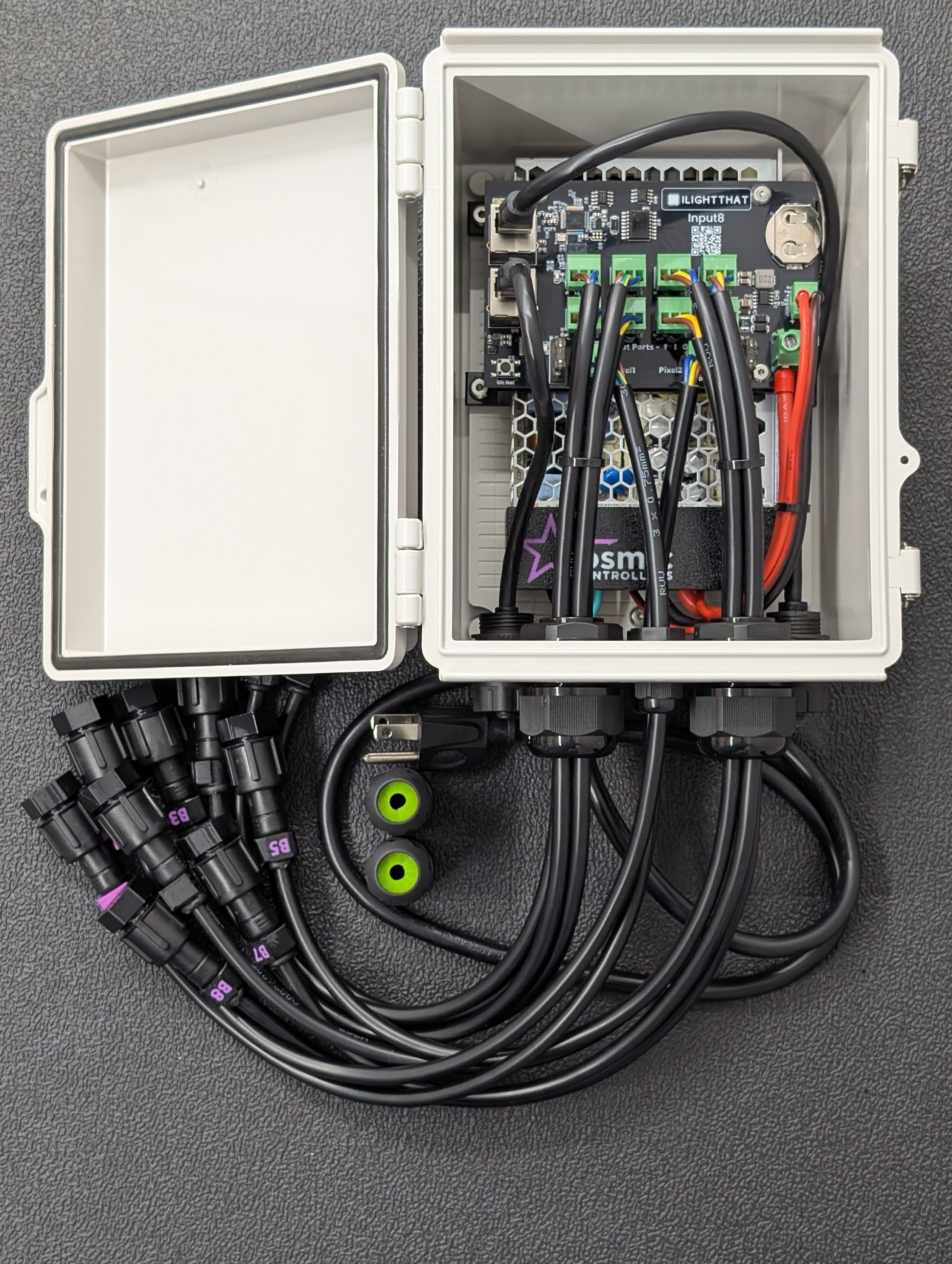

• Fully assembled, wired, labeled, and tested before shipping

New to xLights or FPP? Please review our Before You Buy guide before purchasing.

What Can You Do With the Input8?

The Cosmic Interact Series is designed for displays that do more than play a repeating sequence. Turn physical interactions into actions across your lighting network.

• Interactive Christmas displays: Let visitors press illuminated buttons to select songs, launch FPP playlists, or trigger special sequences.
• Halloween attractions: Use pushbuttons, beam-break sensors, or compatible motion sensors to activate spooky sequences, lighting changes, or effects through supported equipment.
• Selfie stations: Let guests trigger a special lighting sequence or scene when they press a button.
• Light tunnels and interactive pathways: Use compatible sensors or switches to activate lighting effects as visitors move through the display.
• Commercial displays and exhibits: Add physical interaction to kiosks, themed environments, promotional displays, and visitor experiences.
• Special effects integration: Send commands to compatible BaldrickDMX or BaldrickSwitchy controllers to activate configured lighting presets or connected effects equipment.

The Input8 acts as an interactive control hub. It can send commands to compatible devices and FPP systems on your network while also providing two local pixel outputs for supporting lighting effects.

How Does It Work?

Adding interaction to an existing xLights/FPP display doesn't have to involve custom programming or building your own controller enclosure.

1. Connect to your show network. Use one of the two external waterproof Ethernet connections to connect the Input8 to your existing wired network.
2. Connect compatible buttons or sensors. Eight Turniput connections are already routed outside the enclosure, so you don't need to open the controller to attach compatible external devices.
3. Configure your actions. Use the Baldrick web interface to assign supported actions to your inputs, such as starting an FPP playlist, triggering a sequence, changing volume, or controlling another compatible Baldrick device.
4. Let visitors interact. Once configured, your connected buttons or sensors can activate the selected actions when triggered.

Each Turniput supports press and hold configurations, allowing up to 16 separate actions across the eight input connections.

Compatible external devices, network configuration, and an appropriate playback or effects system are required for their respective actions.

Why Choose a Cosmic Interact Series Controller?

The Baldrick Input8 is available as a bare controller board, but the Cosmic Interact Series takes care of the enclosure construction, power supply installation, external wiring, and connection hardware.

Instead of building a dedicated interactive controller yourself, you receive a complete, ready-to-run system with its eight Turniput connections already accessible outside the enclosure.

• All 8 interactive connections installed: Connect compatible external triggers without opening or modifying the controller enclosure.
• Illuminated button control: Turniput lamp outputs allow compatible illuminated buttons to provide visual feedback through configurable lamp modes.
• Flexible network integration: Control supported FPP functions and compatible Baldrick devices while operating alongside your existing lighting controllers.
• Two additional pixel outputs: Control supporting props, accent lighting, or smaller pixel runs directly from the Input8.
• Finished enclosure construction: Boxco P-Series weather-resistant enclosure, stainless hardware, IP68 cable glands, and organized internal wiring.
• Ready-to-run convenience: Installed Mean Well power supply, external network connections, cable identification, and completed assembly and testing.

Whether you're adding a visitor-operated button station or building a larger interactive installation, the Cosmic Interact Series provides a finished foundation for your project.

Pair It With Cosmic Launch Control™

For a ready-made interactive button station, pair your Input8 with Cosmic Launch Control™.

Launch Control features three illuminated pushbuttons with short-press and long-press functions, allowing up to six configurable actions using three Turniput inputs.

Connect Launch Control to three of the Input8's eight external Turniput ports, leaving five additional inputs available for other compatible buttons, sensors, or interactive devices.

Bundle & Save: Save $25 when Cosmic Launch Control™ is purchased with the Cosmic Interact Series controller. Discount applies automatically at checkout. Launch Control is sold separately.

Key Features

8 Turniput Interactive Inputs

• 8 programmable Turniput input ports
• All eight connections are externally accessible on the finished Cosmic Interact Series build
• Each port uses a 3-pin Phoenix-style connection on the controller board
• The third connection provides controllable lamp power for compatible illuminated buttons or indicators
• Configurable lamp modes: Stay On, Stay Off, Flash, and Breathe
• Press and hold actions support up to 16 configurable trigger actions
• Compatible with supported buttons, switches, beam breaks, motion sensors, reed switches, and other suitable trigger devices

Available Input Actions

• FPP integration: Play songs or playlists, control playback, adjust volume, and send supported FPP API commands
• Test mode control: Enable supported controller test modes at a configured brightness
• BaldrickSwitchy integration: Control compatible relay outputs for supported external effects and equipment
• BaldrickDMX integration: Trigger configured DMX presets and supported lighting effects
• HTTP URL calls: Send requests to compatible network services or custom integrations
• Disabled inputs: Leave unused inputs unassigned until needed

2 Local Pixel Outputs

In addition to its eight interactive inputs, the Input8 includes two local pixel outputs for supporting lighting effects or smaller pixel installations.

• 2 preinstalled xConnect female pixel-output pigtails
• Up to 750 RGB pixels per output at 40 FPS
• 1,500 RGB pixels total controller data capacity
• Supports common addressable RGB pixels and supported RGBW pixel types, including UCS2904
• Individually fused outputs using 7.5 A fuses
• Supports DDP, Art-Net, and E1.31/sACN for network pixel control

Power Management

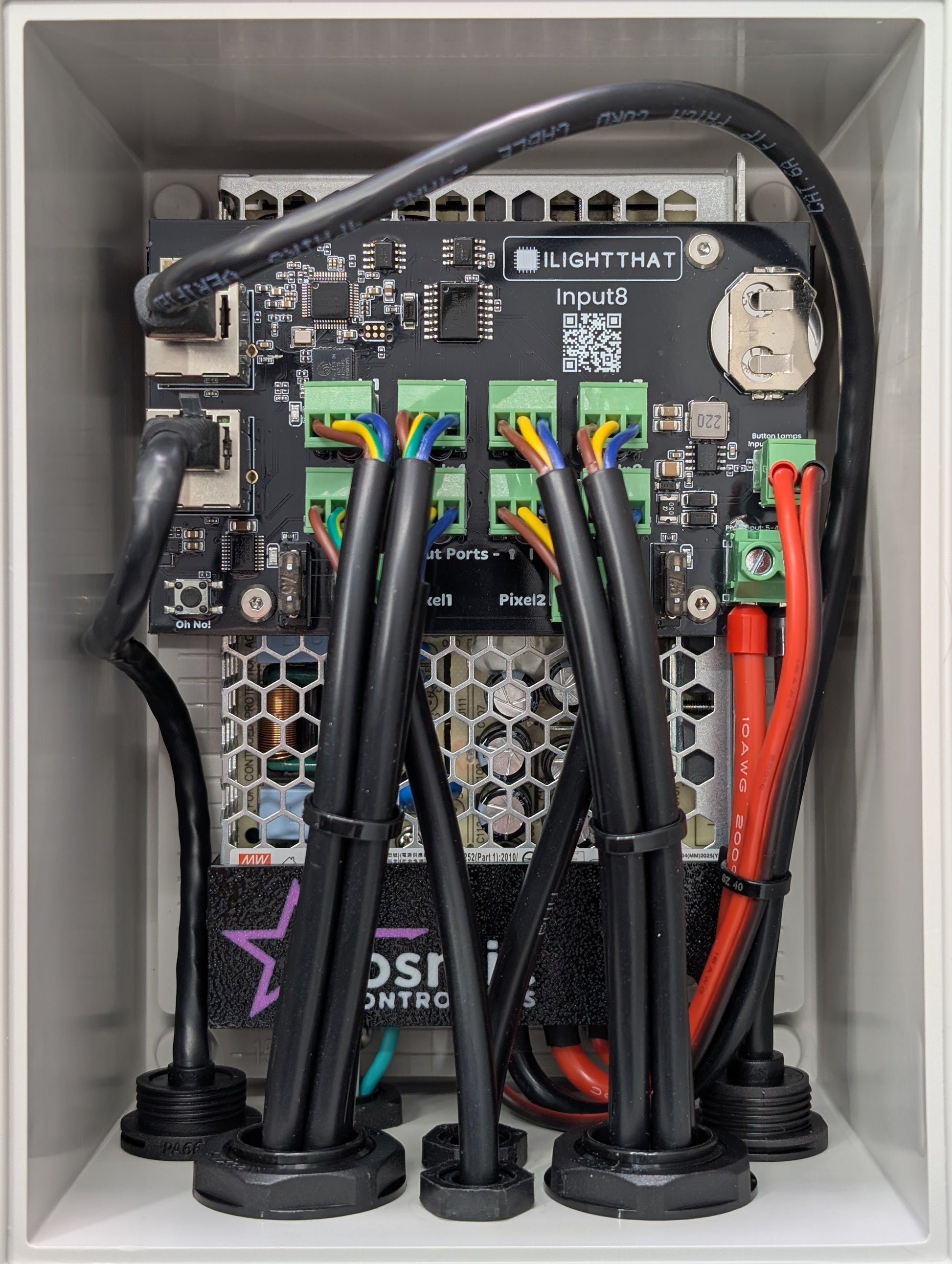

• Mean Well LRS-150-12 12V / 150W power supply
• 150W total installed 12V power supply capacity
• 10 AWG high-temperature silicone wire for main power distribution
• Controllable Turniput lamp outputs for compatible illuminated buttons and indicators
• Power supply terminal safety cover
• SJTW outdoor-rated AC power cord

Network & Integration

• 2 × 100 Mbps Ethernet ports
• Dual external waterproof RJ45 panel connections
• Supports daisy-chained Ethernet connections to compatible network devices
• Supports FPP integration, Baldrick ecosystem actions, and HTTP URL calls
• Push from xLights integration with supported xLights versions for pixel-output configuration
• Can operate alongside other Baldrick controllers on the same show network
• Uses wired Ethernet for normal network and show control

Onboard Controls & Timekeeping

• Onboard physical reset button
• QR code for quick access to Baldrick documentation
• Onboard real-time clock with battery maintains timekeeping when an internet connection is unavailable
• Supports available time-based controller functions

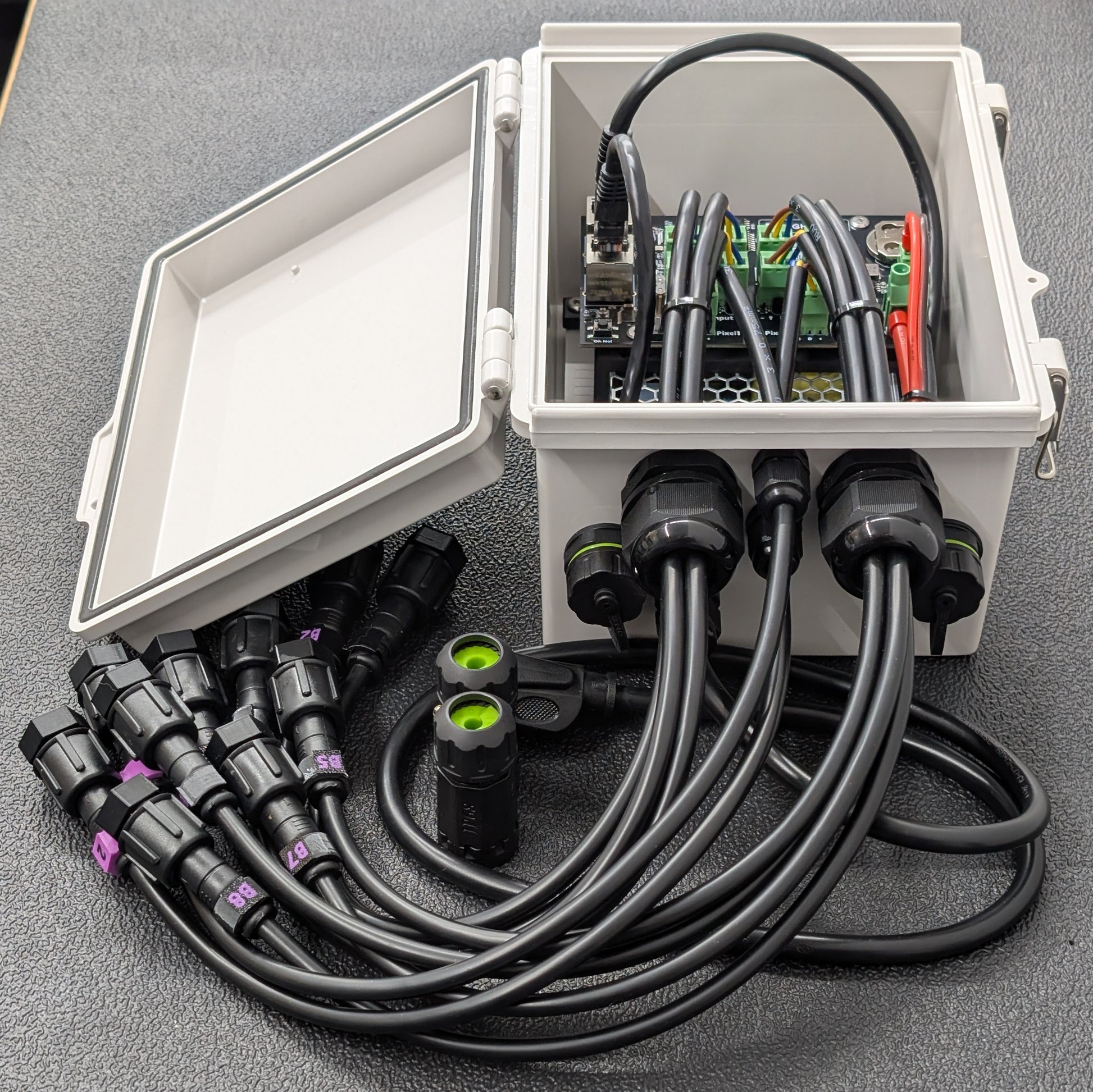

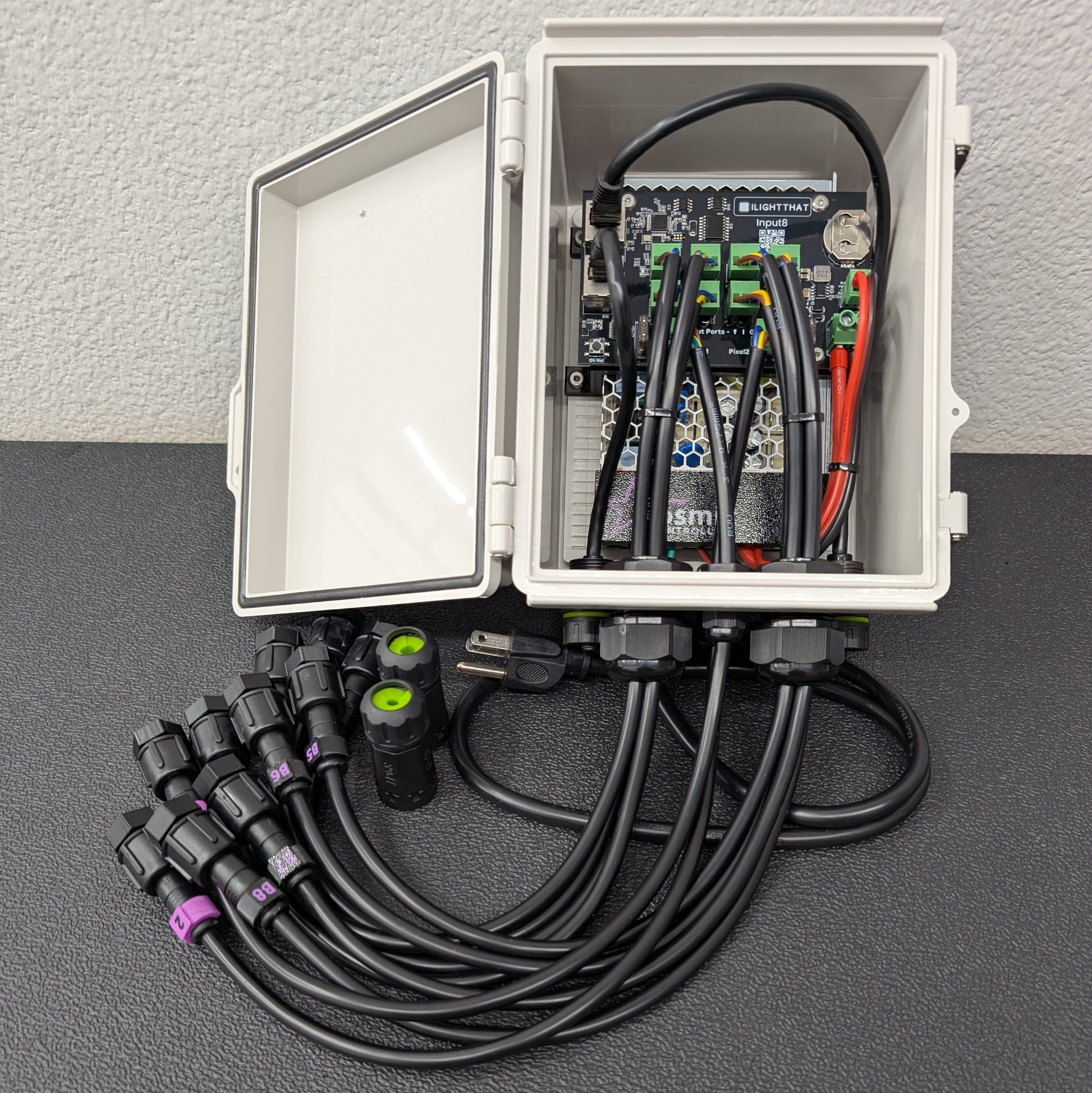

Enclosure & Finished Build

• Boxco P-Series weather-resistant enclosure
• Stainless-steel mounting hardware
• IP68 cable glands for organized, strain-relieved cable routing
• Externally accessible Turniput connections
• 2 preinstalled xConnect pixel-output connections
• Waterproof RJ45 panel connections
• SJTW outdoor-rated power cord
• Cosmic Cable ID clips
• Included wall-mount bracket set
• Prewired, labeled, and tested before shipping

Technical Specifications

Controller Board	Baldrick Input8
Product Type	Ready-to-run interactive input and pixel controller
Interactive Inputs	8 externally accessible programmable Turniput ports
Turniput Board Connections	3-pin Phoenix-style connectors
Turniput Lamp Control	Controllable outputs for compatible illuminated buttons and indicators
Lamp Modes	Stay On, Stay Off, Flash, Breathe
Trigger Actions	Press and hold; up to 16 configurable actions
Compatible Trigger Types	Buttons, switches, beam breaks, compatible motion sensors, reed switches, and other supported devices
Pixel Outputs	2 ports — up to 750 RGB pixels per port at 40 FPS
Total RGB Pixel Capacity	1,500 RGB pixels of controller data capacity
Supported Pixel Types	Common addressable RGB pixels and supported RGBW pixel types, including UCS2904
Output Fusing	Individual 7.5 A fuses on pixel outputs
Ethernet	2 × 100 Mbps ports with daisy-chain support
External Network Connections	Waterproof RJ45 panel connections
Protocols	DDP, Art-Net, E1.31/sACN for local pixel outputs
Software & Integration	xLights, FPP, supported Baldrick ecosystem actions, and HTTP URL calls
Real-Time Clock	Onboard battery-backed RTC
Power Supply	Mean Well LRS-150-12
Installed Power Supply Capacity	150W / 12V DC
Enclosure	Boxco P-Series weather-resistant enclosure
Pixel Connectors	xConnect standard; Ray Wu / HC available by request
Assembly	Fully assembled, wired, labeled, and tested
Warranty	1-year limited warranty; power supply covered per manufacturer terms

Compatibility Notes

• This is a finished ready-to-run interactive controller, not a bare controller board or DIY kit.
• The Input8 is primarily designed for interactive inputs and trigger control. Its two local pixel outputs are intended for additional pixel control and supporting lighting effects.
• Compatible buttons, sensors, switches, and other external interactive devices are sold separately unless included in a selected bundle.
• Input devices must be electrically compatible with the Turniput connections. Illuminated buttons must use compatible lamp voltage and wiring.
• Some actions require a separately configured FPP instance, compatible Baldrick controller, network service, or external effects equipment.
• The Input8 does not directly switch AC-powered equipment. Controlling external machines may require compatible relay or DMX hardware.
• This controller is not an FPP player or standalone show computer.
• Use wired Ethernet for normal show-network operation.
• The 1,500-pixel specification describes controller data capacity and does not mean the installed 150W power supply can power 1,500 pixels in every installation.
• Power injection may be required depending on pixel count, brightness, cable length, voltage drop, and display layout.
• For RGBW pixels or nonstandard pixel types, confirm the pixel IC/protocol before ordering.

Included Accessories

• Cosmic Cable ID clips
• xConnect output end caps
• Waterproof RJ45 panel connections
• Power supply terminal safety cover
• Wall-mount bracket set
• Turniput port pinout plugs

Recommended Accessories

• Cosmic Launch Control™ Interactive Show Trigger

Warranty & Customization

Every ready-to-run Cosmic controller includes a 1-year limited warranty. See our Warranty Policy for details.

Custom options such as connector changes, vented enclosures, or preconfiguration may be available. For custom configurations, please contact us before ordering.
