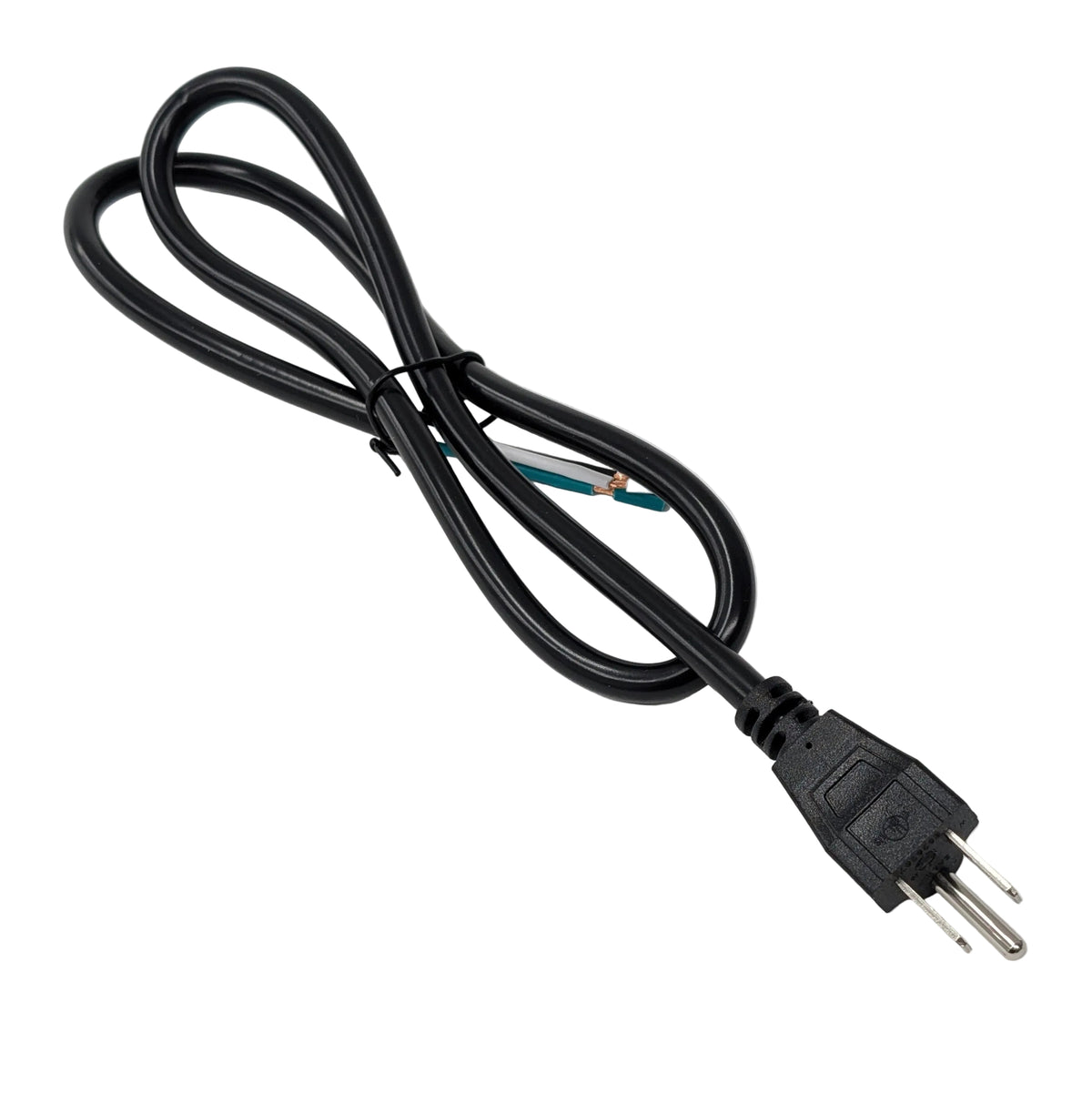

3' NEMA 5-15P SJTW Replacement Power Cord – 16/3 or 14/3

This 3 ft NEMA 5-15P SJTW power cord provides a ready-to-wire AC power lead for controllers, power supplies, appliances, electrical enclosures, and other hardwired equipment. One end features a molded NEMA 5-15P grounded plug, while the opposite end is factory stripped and prepared for termination.

Choose between 16/3 SJTW rated 13A or heavier 14/3 SJTW rated 15A. Both versions use stranded copper conductors and a durable outdoor-rated SJTW jacket.

• 3 ft cord length
• NEMA 5-15P grounded plug
• 16/3 SJTW – 13A, 125V
• 14/3 SJTW – 15A, 125V
• Stranded copper conductors — no CCA
• Factory-stripped open end ready for termination
• Outdoor-rated SJTW jacket

Installing the cord through an enclosure? Our M16L Long-Thread Cable Gland has a 5–10 mm cable range and is sized to fit both the 16/3 and 14/3 SJTW versions.

Available Wire Sizes

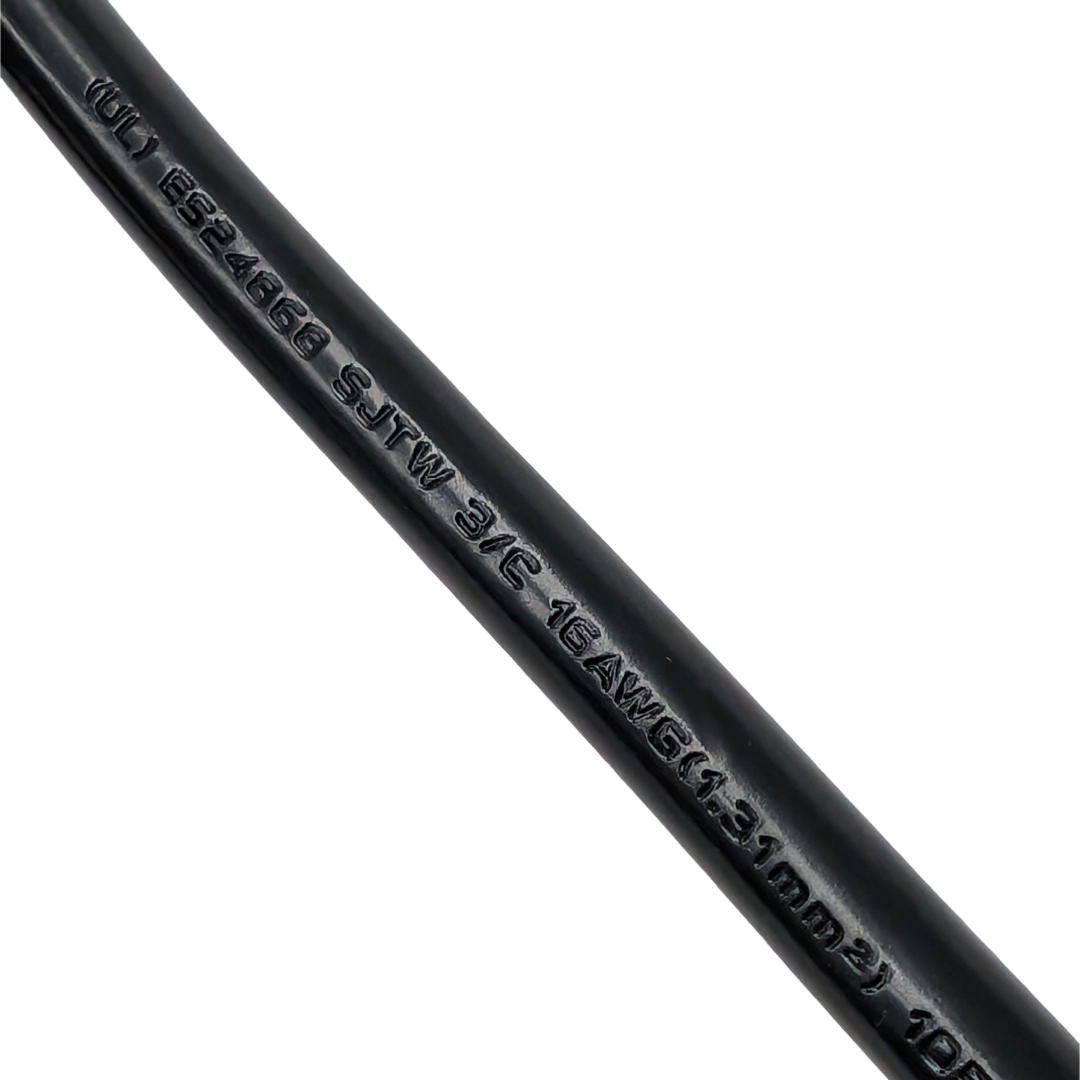

16/3 SJTW – 13A

The 16/3 version is a good choice for many pixel controllers, single-power-supply builds, appliances, and other equipment drawing up to 13 amps at 125V.

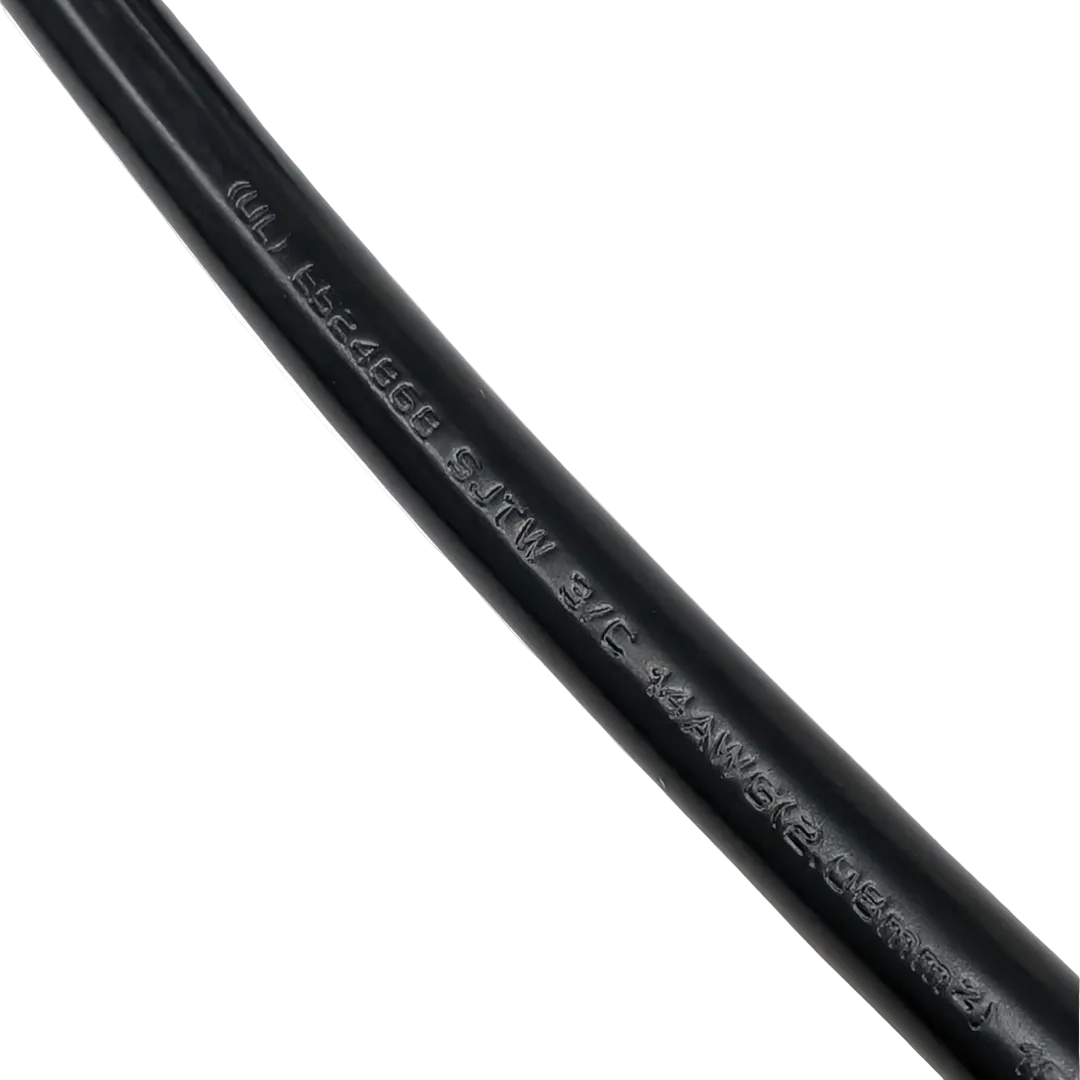

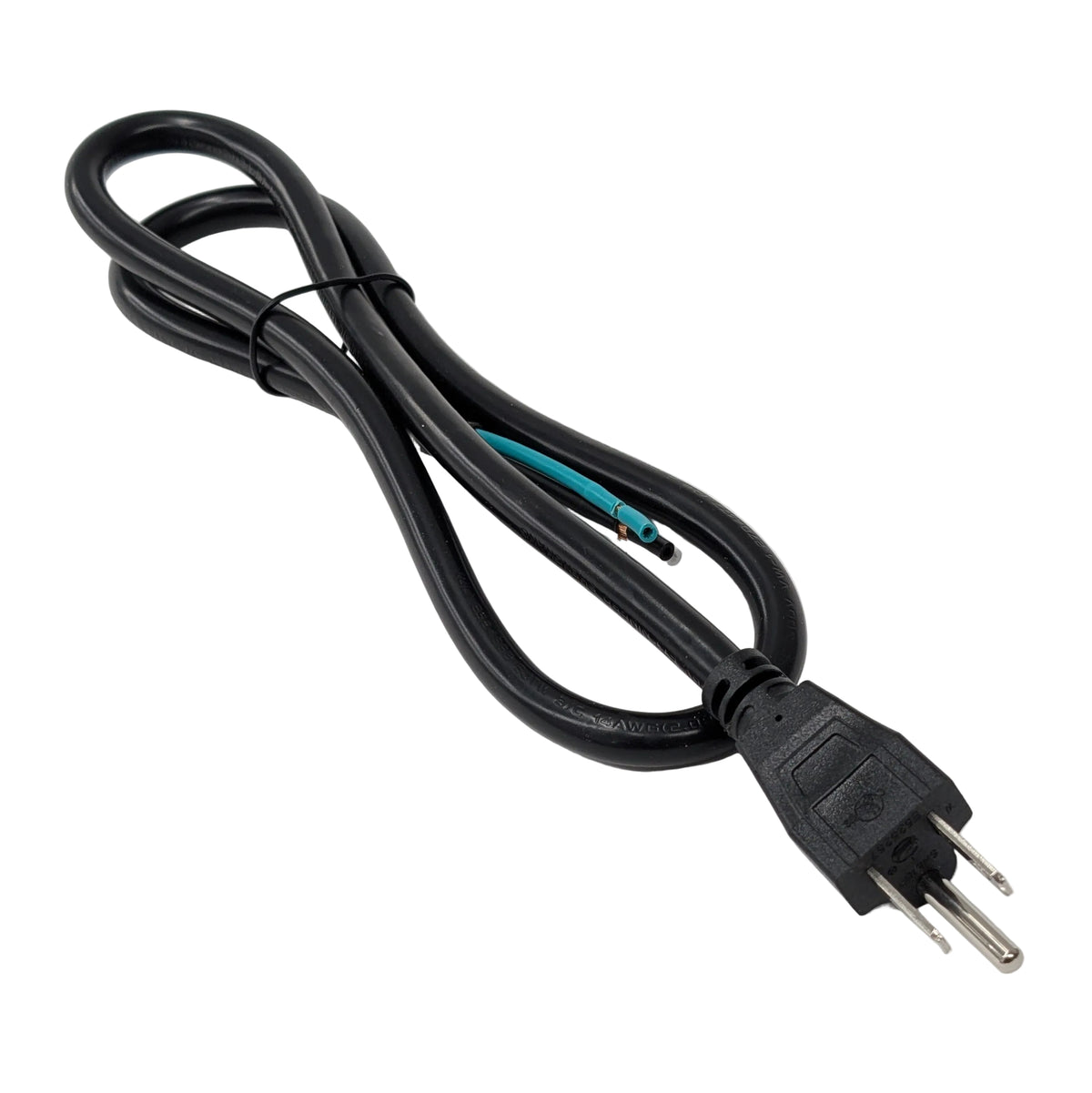

14/3 SJTW – 15A

The heavier 14/3 version supports up to 15 amps at 125V and is appropriate for higher-load installations where additional conductor capacity is required.

Factory-Prepared Bare-Wire End

The open end is prepared for easy installation with approximately 50 mm of the outer jacket removed and approximately 10 mm of insulation stripped from each conductor.

• Black — Line / Hot
• White — Neutral
• Green — Equipment Ground

Technical Specifications

Common Uses

• Pixel controller enclosures
• Mean Well and other AC-powered power supplies
• Replacement appliance power cords
• Outdoor lighting controllers
• Electrical and electronics enclosures
• Shop and commercial equipment
• Custom hardwired equipment

Choosing the Correct Wire Gauge

Select the cord size based on the input current and installation requirements of your equipment. The 16/3 SJTW 13A version is suitable for many common controller and power-supply applications, while the heavier 14/3 SJTW 15A version provides additional current capacity for higher-load installations.

Always verify equipment current requirements, conductor sizing, overcurrent protection, grounding, and applicable electrical requirements before installation.

Installation Notes

• Disconnect power before wiring or servicing equipment.
• Use an appropriately sized strain relief or cable gland where the cord enters an enclosure.
• Maintain correct line, neutral, and equipment-ground connections.
• Do not exceed the current rating of the selected cord.
• Follow the installation instructions and electrical requirements for the connected equipment.
