xConnect Power Injection H-Harness – 3-2-3 Tee (Dual-Use Power Balancing Pigtails)

This xConnect Power Injection H-Harness is a dual-purpose power solution designed for pixel installers who want cleaner wiring, better voltage balance, and fewer controller ports.

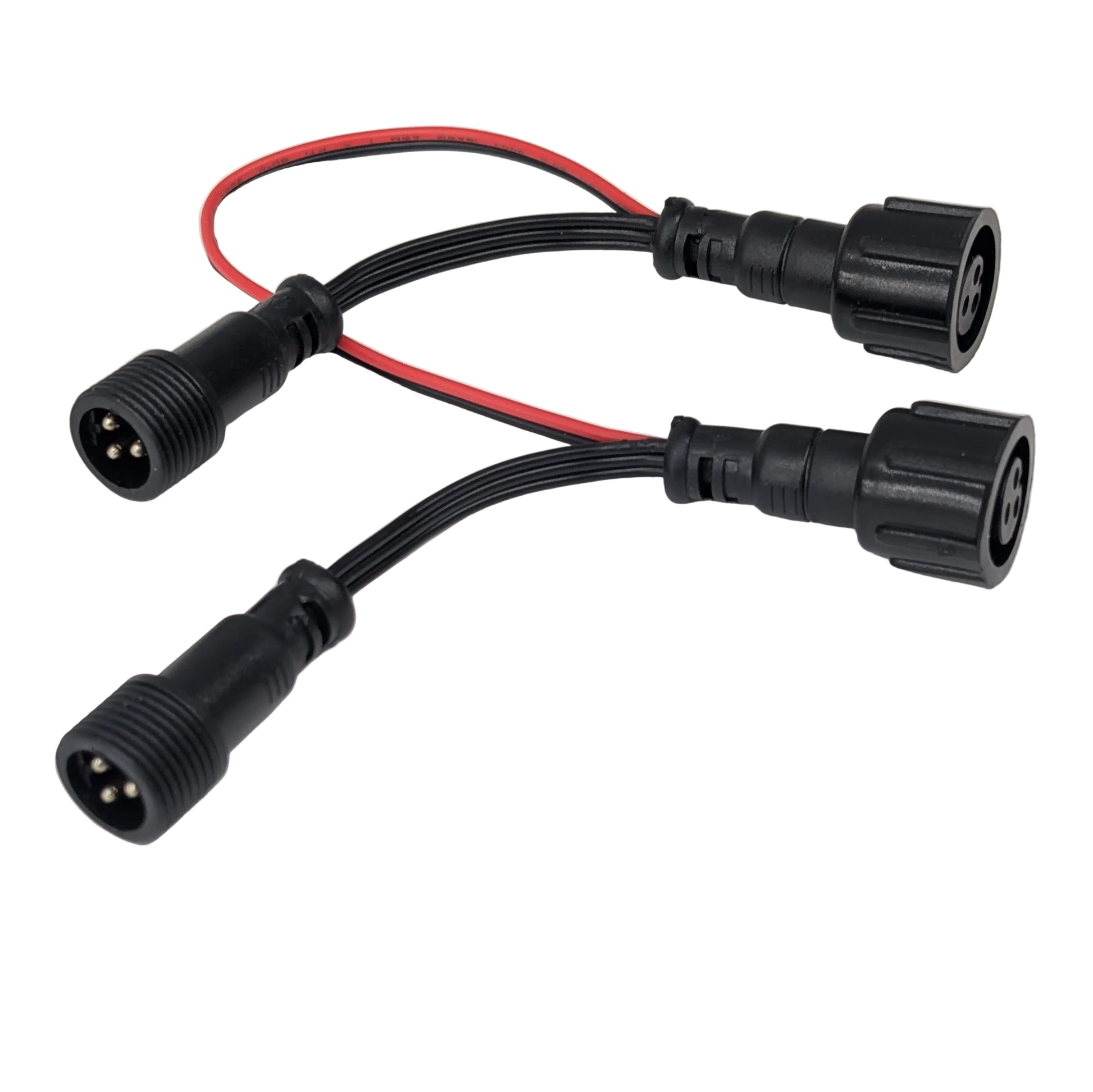

Built by joining two (3-2-3) xConnect power injection pigtails with 18 AWG flat cable, this harness can be used in multiple ways depending on your installation needs.

• Use as a connected H-harness for power balancing between pixel strings or props

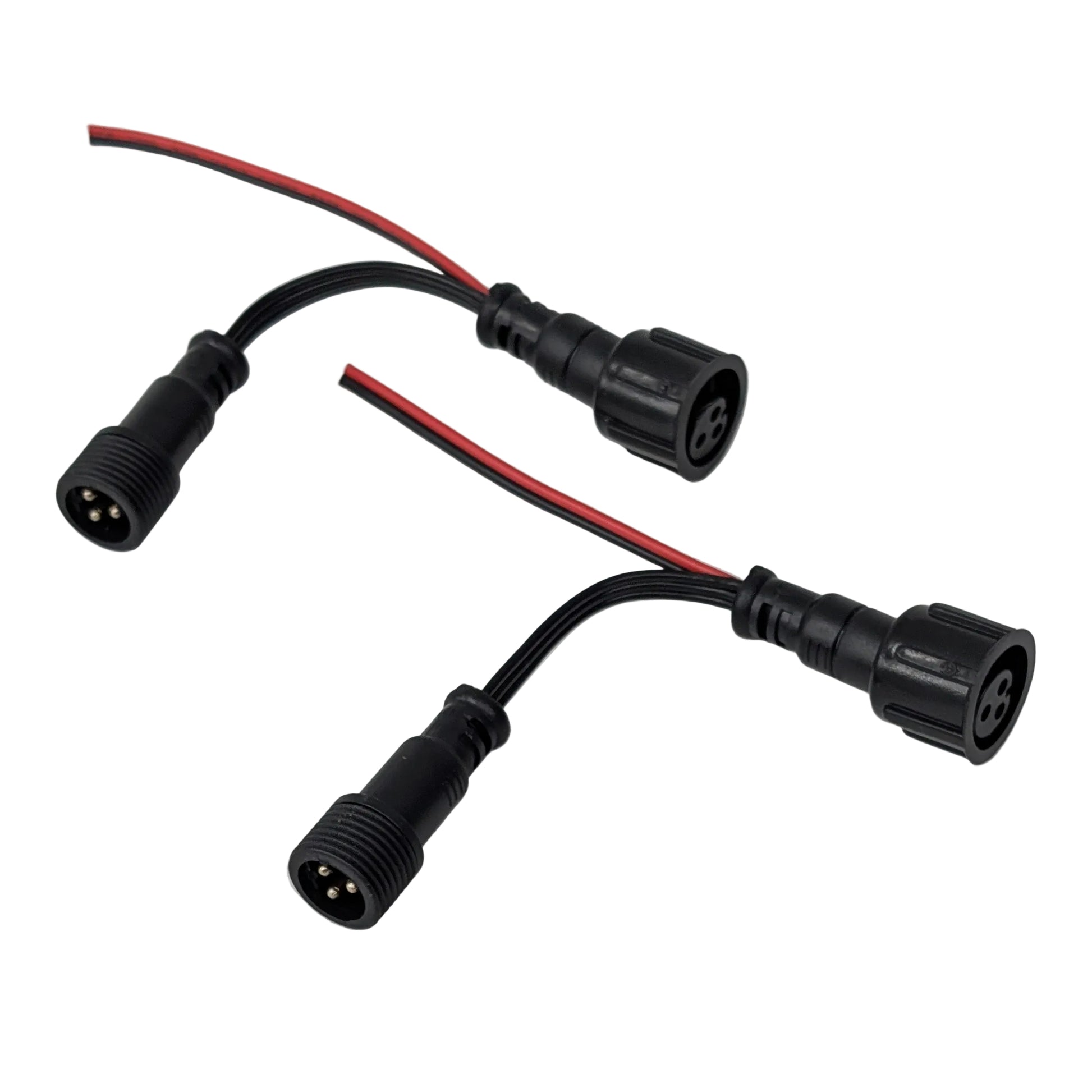

• Or split in half to create two independent power injection pigtails

One product — multiple applications — giving you maximum flexibility during layout, install, or future expansion.

The two power injection tees are connected by a 2-core power jumper that measures 18 cm (7"). This jumper carries V+ and V− only (no data), allowing power to balance cleanly without introducing signal reflections or timing issues.

Dual-Purpose Power Injection & Power Balancing Harness

This harness combines power injection and power balancing into a single, flexible solution. It allows power to be injected and shared exactly where it’s needed — without consuming additional controller ports.

Use Case 1: Dual Power Injection

Use both output legs as power injection pigtails to deliver power to two separate locations along a pixel run. This is ideal for long runs, permanent outdoor installs (such as eaves), or large props where voltage drop is a concern.

Use Case 2: Power Balancing Through a Prop (H-Harness)

When installed inline, the harness functions as a power balancing tee, allowing power to be shared evenly through a prop or between chained elements while maintaining a single data path.

This configuration is especially useful for:

• Mega tree strands powered from a single controller port
• Chained props where voltage consistency matters
• Long pixel runs where balancing reduces flicker and color shift

Use Case 3: End-of-Prop / End-of-Chain Power Injection

By capping one of the male output connectors, the harness can also be used at the end of a prop or pixel chain, allowing power to be injected and stabilized without continuing power or data beyond that point.

This is ideal for single large props or for reinforcing voltage at the end of long pixel runs.

Optional Waterproof End Cap Included

A free waterproof xConnect end cap is included to safely protect the unused connector when operating in end-of-prop or end-of-chain configurations.

Key Features

• Dual-Use Design – Use as an H-harness or split into two injection pigtails
• (3-2-3) Power Injection Tee Layout – Purpose-built for pixel power distribution
• xConnect Compatible – Works with standard xConnect systems
• 18 AWG Flat Cable – Supports power injection with minimal voltage loss
• 18 cm (7") 2-Core Power Jumper – V+ and V− only for clean power balancing
• Waterproof Connections – Suitable for outdoor and permanent installs
• Cleaner Wiring – Fewer adapters, fewer ports, fewer failure points

What You’ll Receive

• One (1) xConnect Power Injection H-Harness (3-2-3 configuration)
• Configured as a single connected harness (can be split if desired)
• One (1) waterproof xConnect end cap

In Stock & Ships Next Business Day

This item is in stock and typically ships the next business day.
