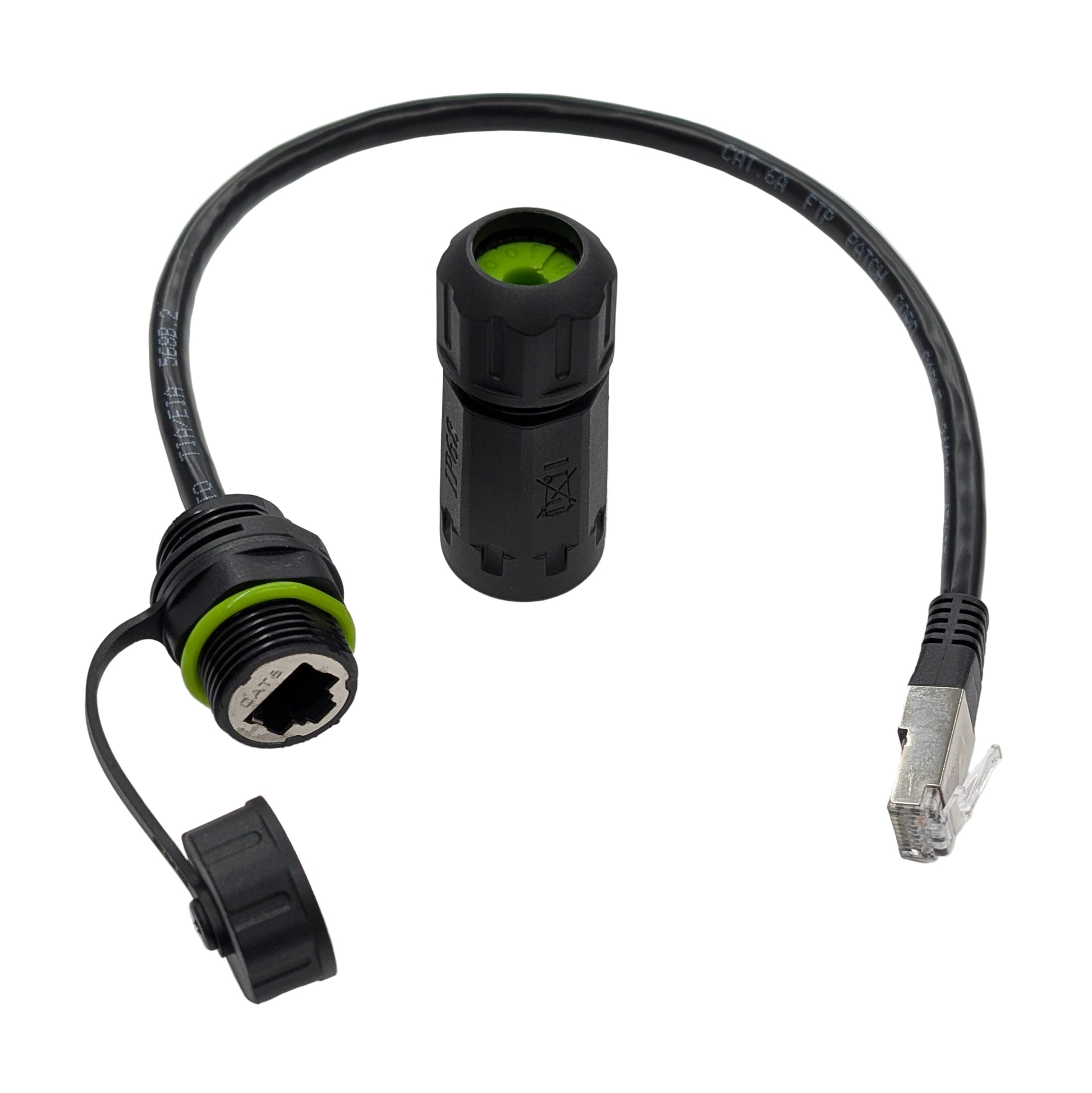

IP68 Waterproof RJ45 CAT6 Panel Mount Connector
Reliable Ethernet Connectivity for Harsh Environments
Ensure secure, high-speed Ethernet connections in the toughest conditions with our IP68 Waterproof RJ45 CAT6 Panel Mount Connector. Featuring a 300mm 24 AWG CAT6A shielded cable with shielded connectors, this rugged passthrough connector is built for outdoor, industrial, and marine applications where reliability is non-negotiable.
Key Features & Benefits
- IP68 Waterproof Protection — Submersible, dustproof, and sealed against rain, snow, and humidity.
- High-Performance CAT6 Connectivity — Gigabit Ethernet speeds for smooth data transmission.
- Rugged Panel Mount Design — Provides a secure and professional installation point.
- Industrial-Grade Durability — Nylon PA66 & zinc alloy housing withstands vibration, impact, and extreme temperatures (-40°C to +105°C).
- Reliable Gold-Plated Contacts — Superior conductivity with corrosion resistance for signal integrity.
- Shielded Cable — Reduces EMI/RFI interference for stable data transmission.
- Extended Cable Length — Includes a pre-attached 300mm shielded CAT6A wire.
Technical Specifications
- Connector Type: RJ45 CAT6 Panel Mount Passthrough
- Waterproof Rating: IP68
- Material: Nylon PA66 Housing, Copper Contacts, Silicone Seal
- Pin Count: 8 Pin
- Voltage Rating: 250V
- Current Rating: 1.5A
- Temperature Range: -40°C to +105°C
- Durability: 500 Mating Cycles
- Cable: 300mm (approx. 12 inches), 24 AWG Shielded CAT6A
- Overall Length: Approximately 15 inches
- Certifications: CE, RoHS, IP68, ISO9001
Typical Applications
- Outdoor Wireless Networks & Access Points
- LED Lighting & Pixel Controller Enclosures
- Industrial Automation & Control Systems
- CCTV & Security Surveillance
- Marine & Coastal Network Installations
