Mattos Designs™ EVO Mini Pixels – Compact 12V WS2811 LED Pixels (High Density)

Mattos Designs EVO Mini Pixels

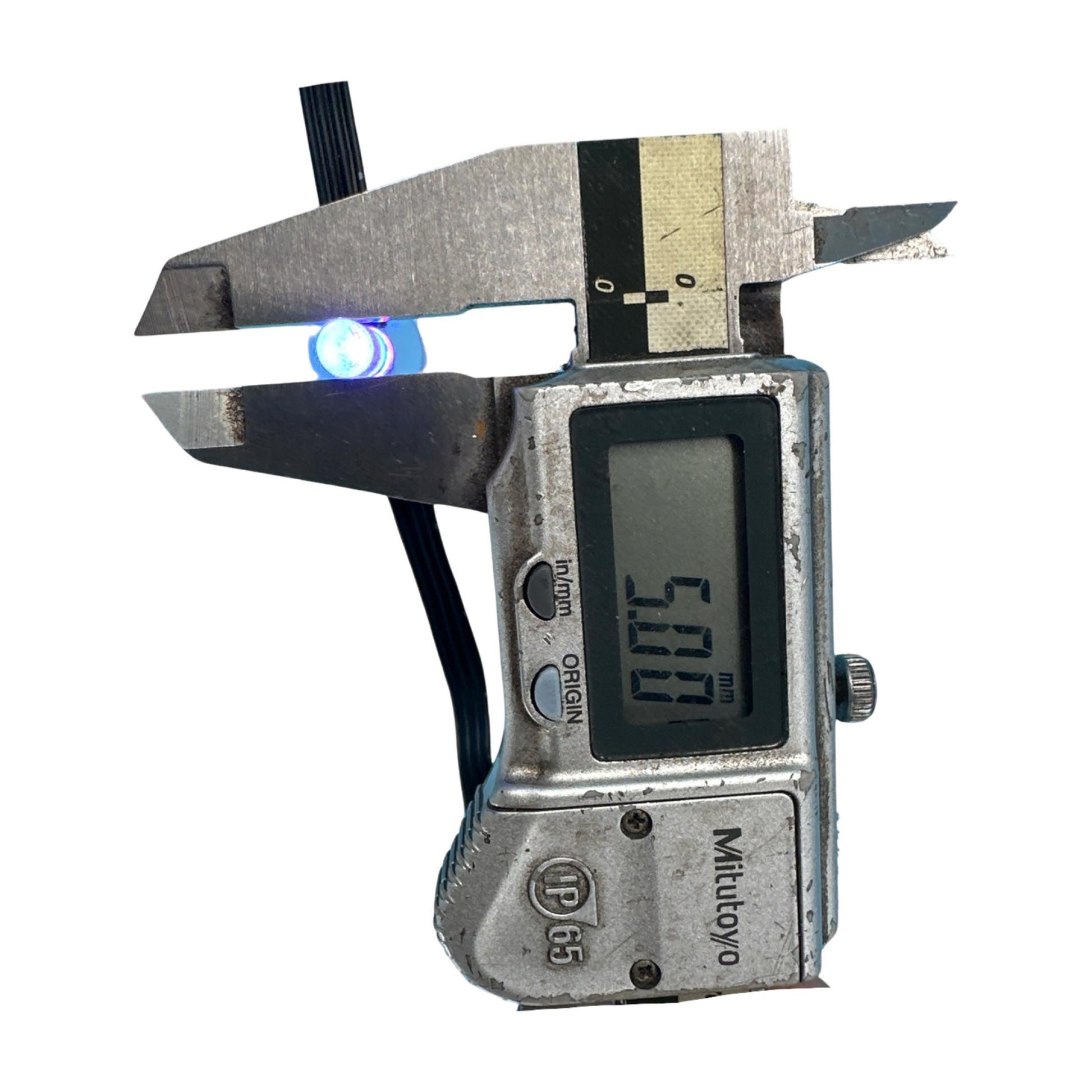

Introducing the EVO Mini from Mattos Designs, a compact and innovative twist on the standard EVO Pixel. With a 5mm diameter body and a stackable design, these mini pixels are perfect for high-density installations, allowing you to create smaller props and signs without sacrificing pixel count.

Key Features:

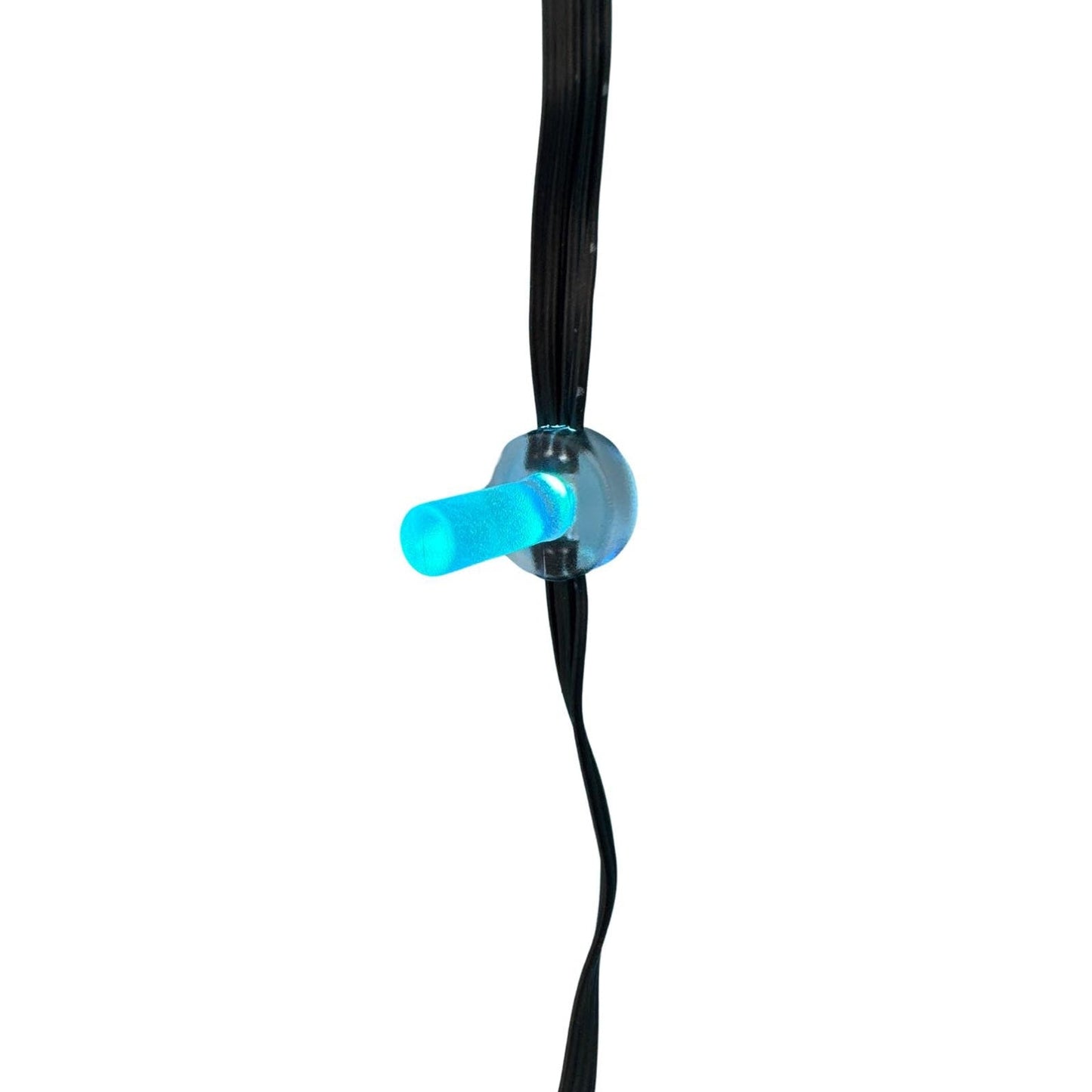

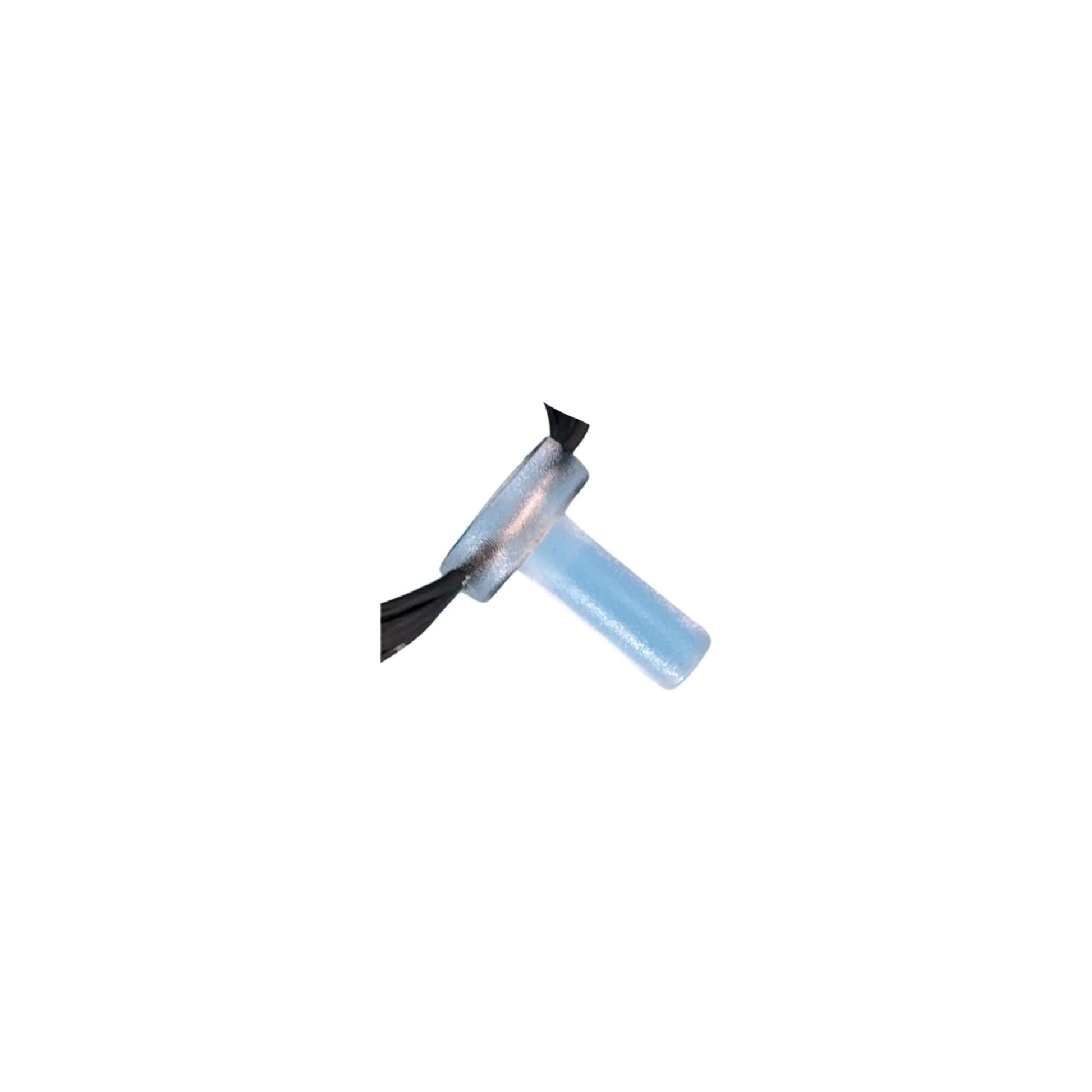

• Compact and Stackable Design: The 5mm body allows for high-density setups while the overlapping base design ensures secure insertion into 10mm coroplast or other materials.
• Efficient and Durable: The constant current design and native 12V technology reduce power draw and failure points. Each pixel is 100% encapsulated in PVC, providing exceptional durability and water resistance.
• Wide Voltage Range: Rated at 12V with a voltage range of 10.8V to 13.2V DC, the EVO Mini operates efficiently with a current draw of only 9mA at 12V.
• High Brightness: With mcd values of R 100-300, G 200-600, and B 50-200 at 12V DC, the EVO Mini rivals traditional bullet pixels in brightness.
• Lightweight: Weighing just 238 grams per 100 pixels (at 4” spacing), EVO Mini pixels make props significantly lighter and easier to handle.

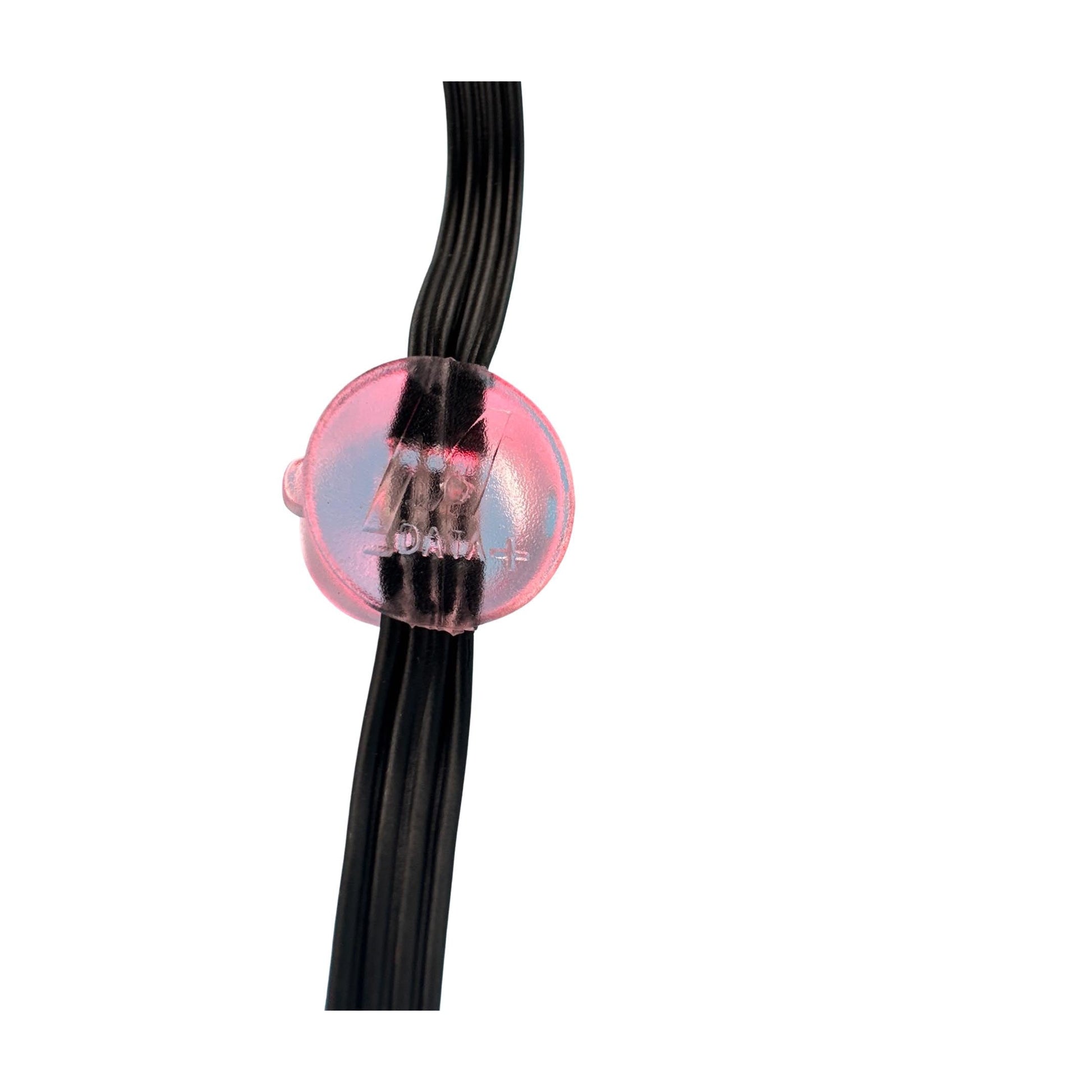

• User-Friendly: Each pixel is marked with "+ Data -" for easy customization and repair. A built-in signal reshaping circuit ensures reliable data transmission at 800kbs.
• Warranty and Certification: All Mattos Designs EVO Pixels are UL Listed, CE, RoHS, and FCC Certified, and come with a 3-year warranty for unmodified/unmodified strings.

Specifications:

• Voltage: 12V DC, no on-board resistors or regulators required
• Protocol: WS2811 compliant with

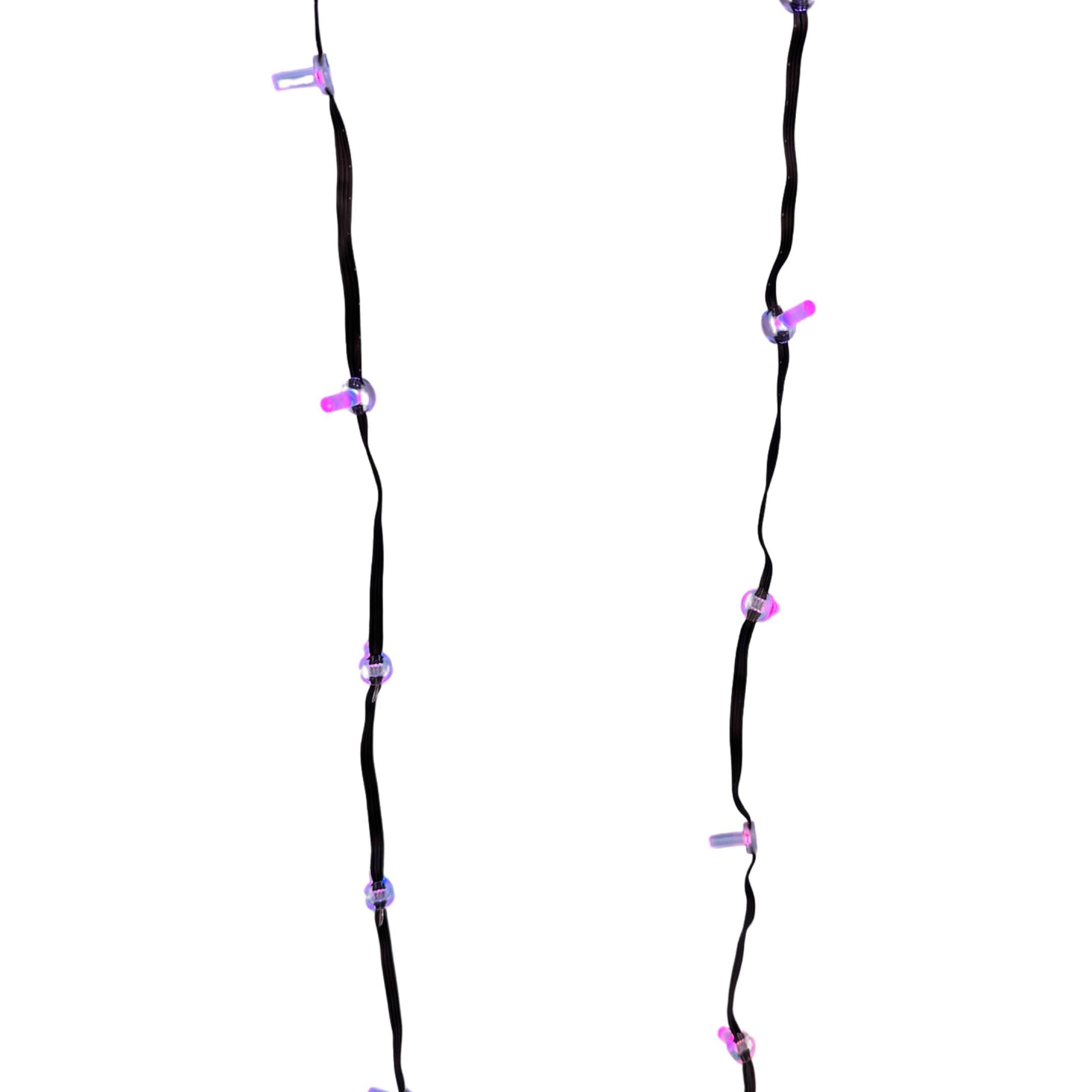

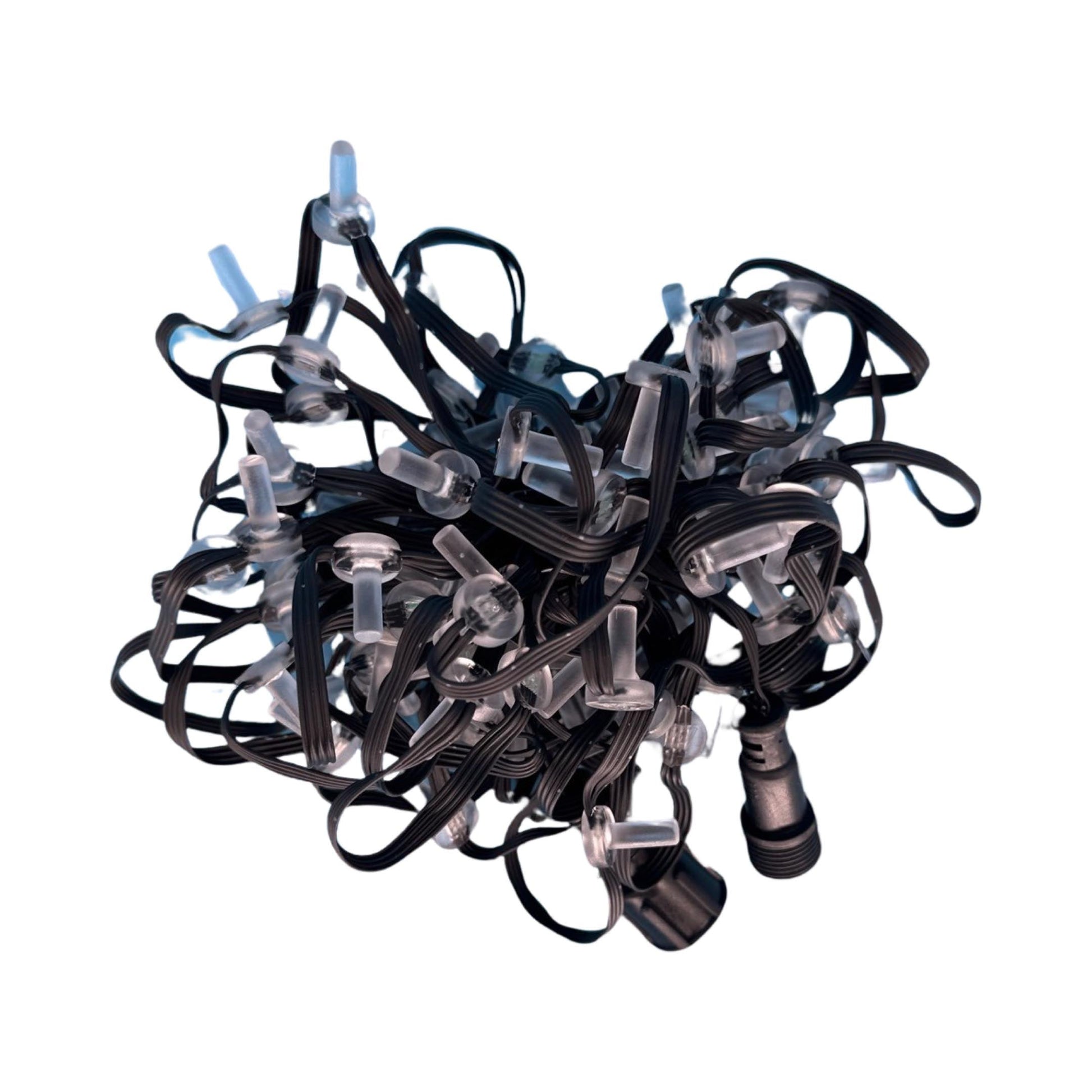

• Spacing Options: 4-inch spacing available in 100 Count, TWO 50 Count, or FOUR 25 Count packages
• Protection: IP67 rated with encapsulated PCB and wire, further enclosed in a PVC shell
• Connectors: 3-wire xConnect Pigtails
• Wire: 20ga black wire standard
• Operating Temperature: -40°C to +85°C (-40°F to 185°F)
