Boxco BC-AG-V60 Vent (ABS) – 60 mm Fan Size
Boxco BC-AG-V60 Vent (ABS) – 60 mm Fan Size
15 in stock
Couldn't load pickup availability

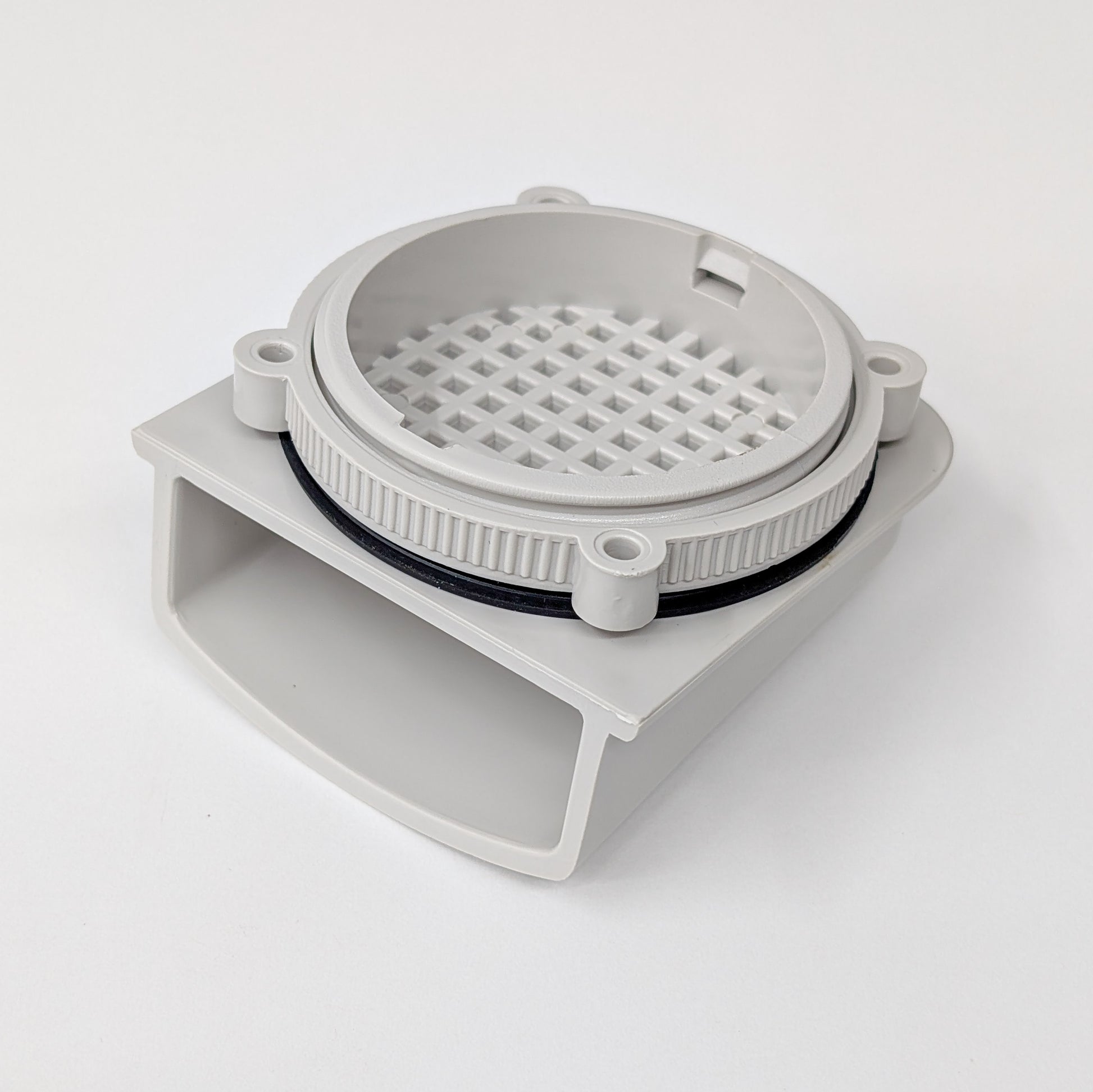

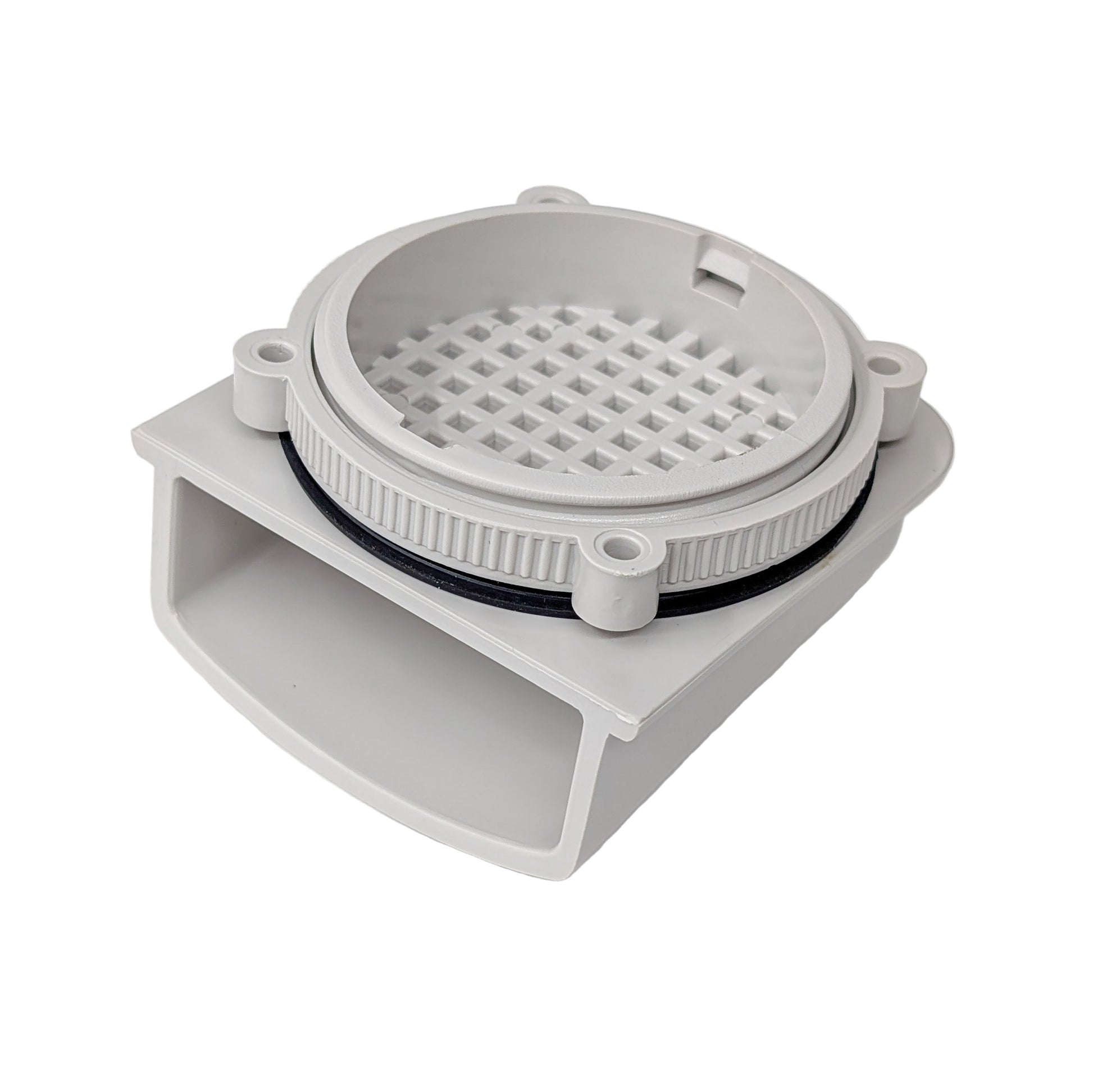

The Boxco BC-AG-V60 Ventilator is an ABS enclosure vent designed for use with 60 mm cooling fans in electrical, control, automation, and outdoor electronics enclosures. Its compact panel-mount design provides a clean way to add airflow and heat exhaust to compatible enclosure builds.
The BC-AG-V60 is designed for enclosure cutouts approximately 63–65 mm in diameter and is manufactured from flame-resistant ABS material rated UL94-HB.
- Genuine Boxco BC-AG-V60 accessory
- Designed for 60 mm cooling fans
- 63–65 mm recommended enclosure cutout
- ABS construction
- UL94-HB flame-resistance rating
- -40°C to 86°C operating temperature range
- Designed for electrical, control, and electronics enclosure ventilation
Product Overview
The Boxco BC-AG-V60 provides a simple ventilation path for enclosures containing power supplies, controllers, network equipment, and other heat-producing electronics. It can be used as a passive vent or paired with a compatible 60 mm fan as part of an active enclosure-cooling system.
Its panel-mount design makes it suitable for controller boxes, automation enclosures, electrical cabinets, and other applications where internal heat needs to be exhausted while maintaining a clean enclosure layout.
Key Features
- 60 mm fan compatibility for common compact cooling-fan installations
- 63–65 mm enclosure cutout range
- Durable ABS plastic construction
- UL94-HB flame-resistance rating
- Wide operating temperature range for demanding installations
- Compact design helps maintain a clean exterior enclosure appearance
- Can be used for passive ventilation or with a compatible cooling fan
Technical Specifications
| Manufacturer | Boxco |
| Manufacturer Part Number | BC-AG-V60 |
| Accessory Type | Enclosure ventilator / vent |
| Fan Size | 60 mm diameter |
| Recommended Cutout | 63–65 mm diameter |
| Vent Dimension A | 50 ±0.3 mm |
| Material | ABS plastic |
| Flammability Rating | UL94-HB |
| Operating Temperature | -40°C to 86°C (-40°F to 185°F) |
| Fan Included | No |
Typical Applications
- Pixel controller enclosures
- Power supply enclosures
- Automation and control cabinets
- Outdoor electronics boxes
- Network and communications enclosures
- DIY controller and receiver builds
Installation Notes
- Confirm enclosure clearances and the required 63–65 mm cutout before drilling.
- The vent is designed for use with a compatible 60 mm fan; fan is not included.
- For active cooling, plan airflow so fresh air enters from one location and warm air exits through another.
- Choose fan direction and vent placement based on your enclosure layout and cooling requirements.
