Baldrick8 – Ready-to-Run Pixel Controller (Cosmic 8-Series)

Now Available with Two Power Options!

• 350 W – Ideal for smaller installations or efficient pixel setups.
• 700 W – Perfect for larger displays needing higher power capacity.

Product Overview

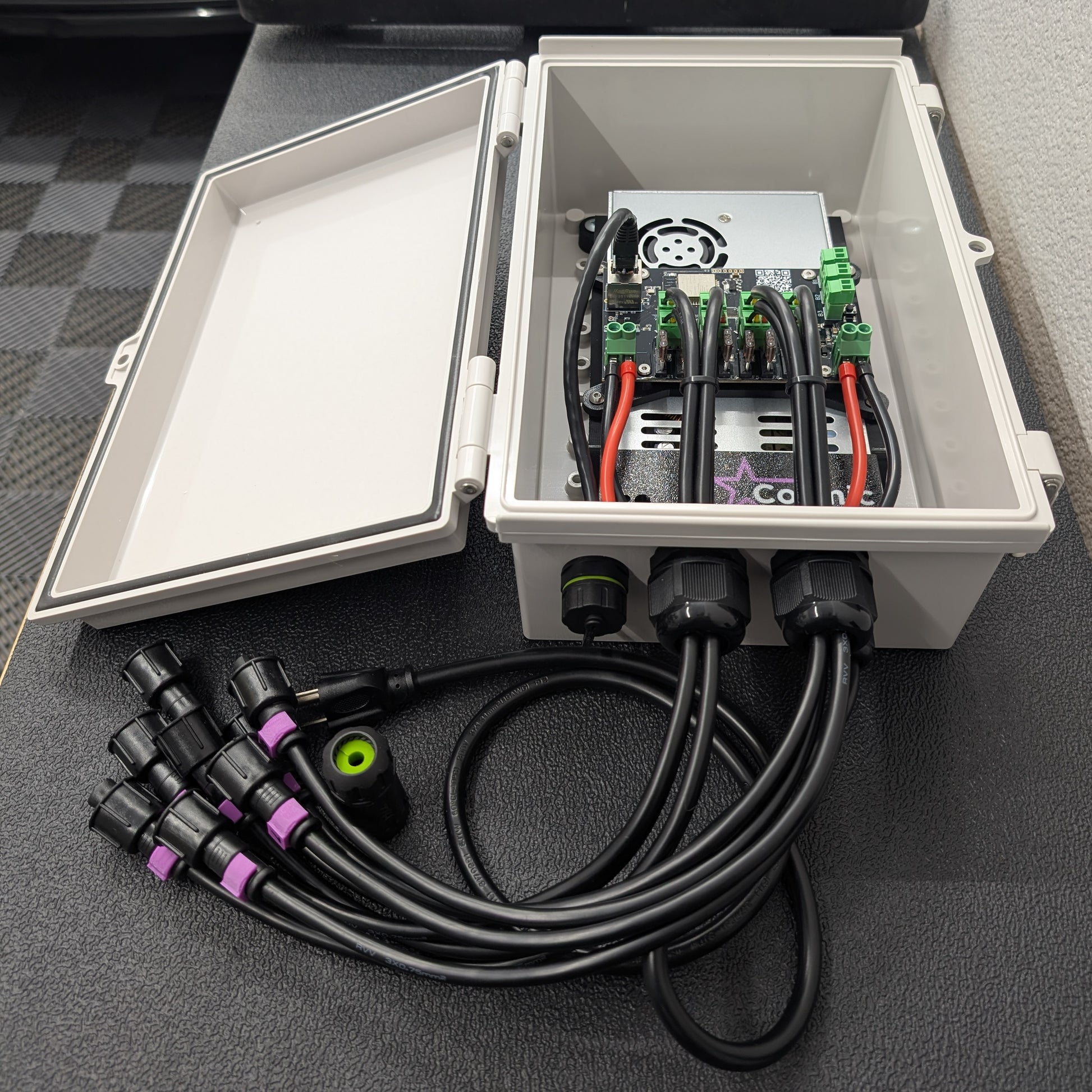

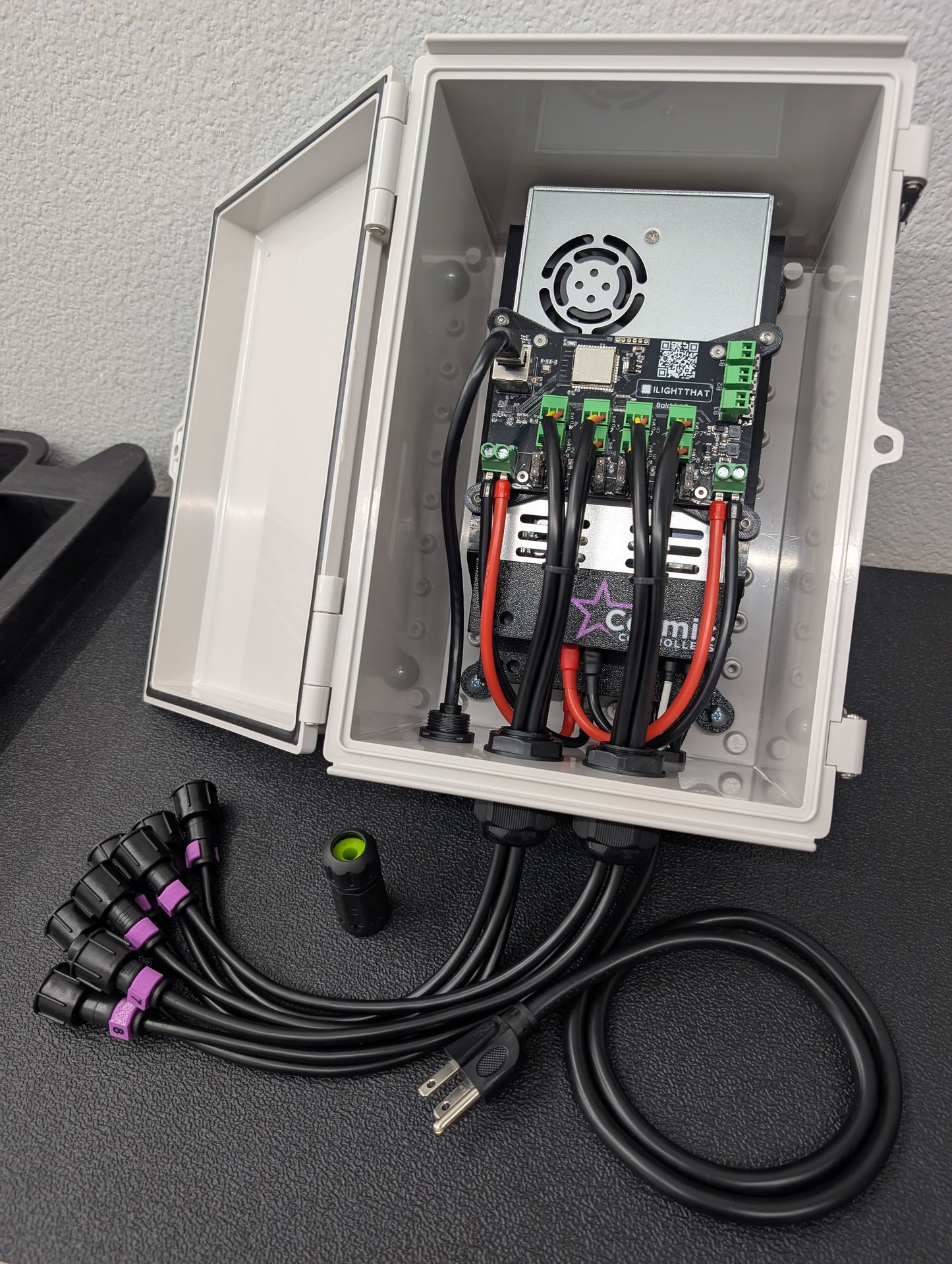

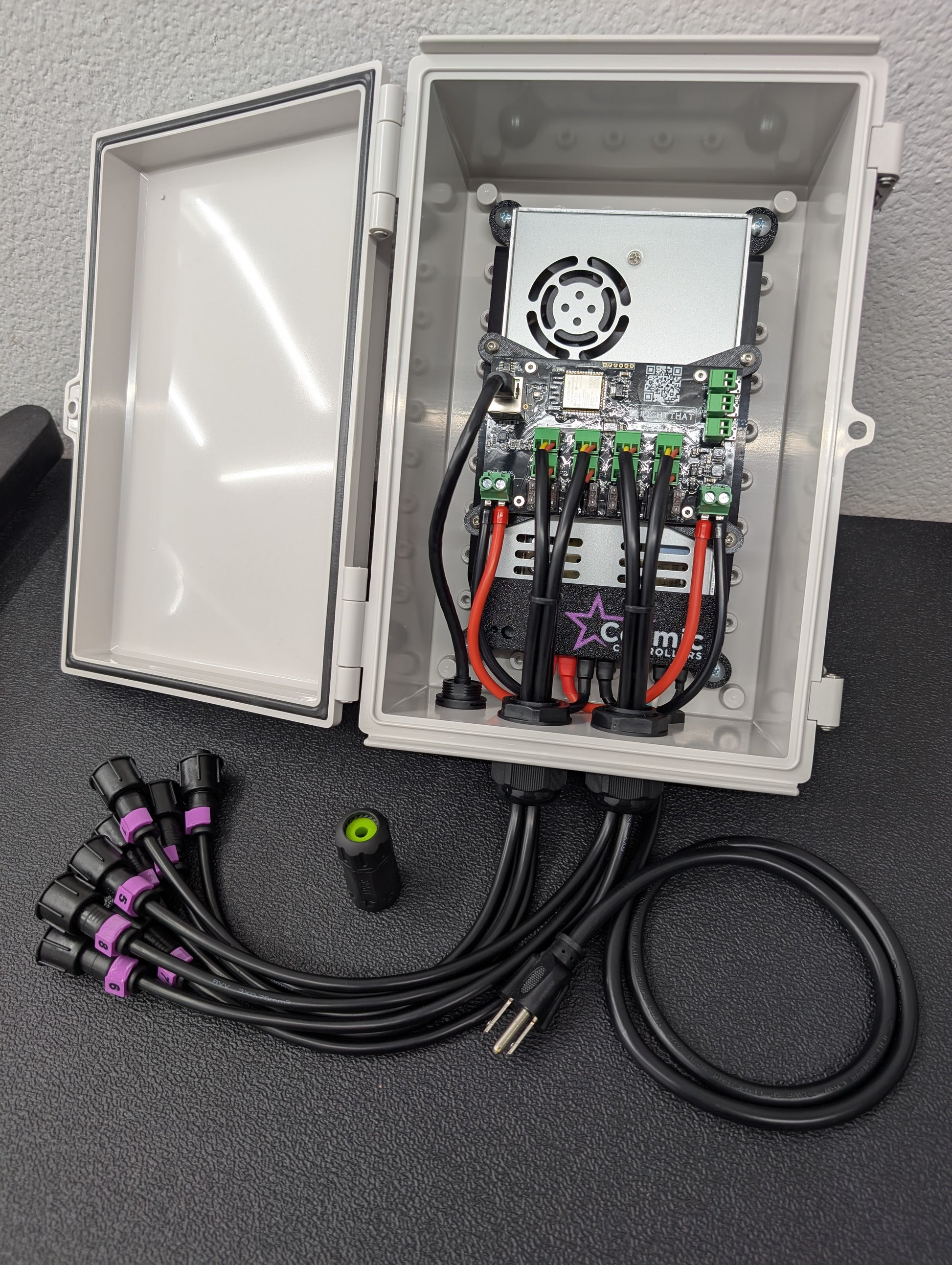

The Cosmic 8-Series is a fully assembled 8-port pixel controller capable of driving up to 6,000 pixels at 40 FPS with your choice of 350 W or 700 W total power. Built on the trusted Baldrick8 board, this professional-grade controller delivers exceptional performance and reliability — all pre-wired, tested, and ready to run.

It’s the ideal turnkey solution for both newcomers and experienced hobbyists looking to power their holiday light shows or permanent lighting installations with confidence.

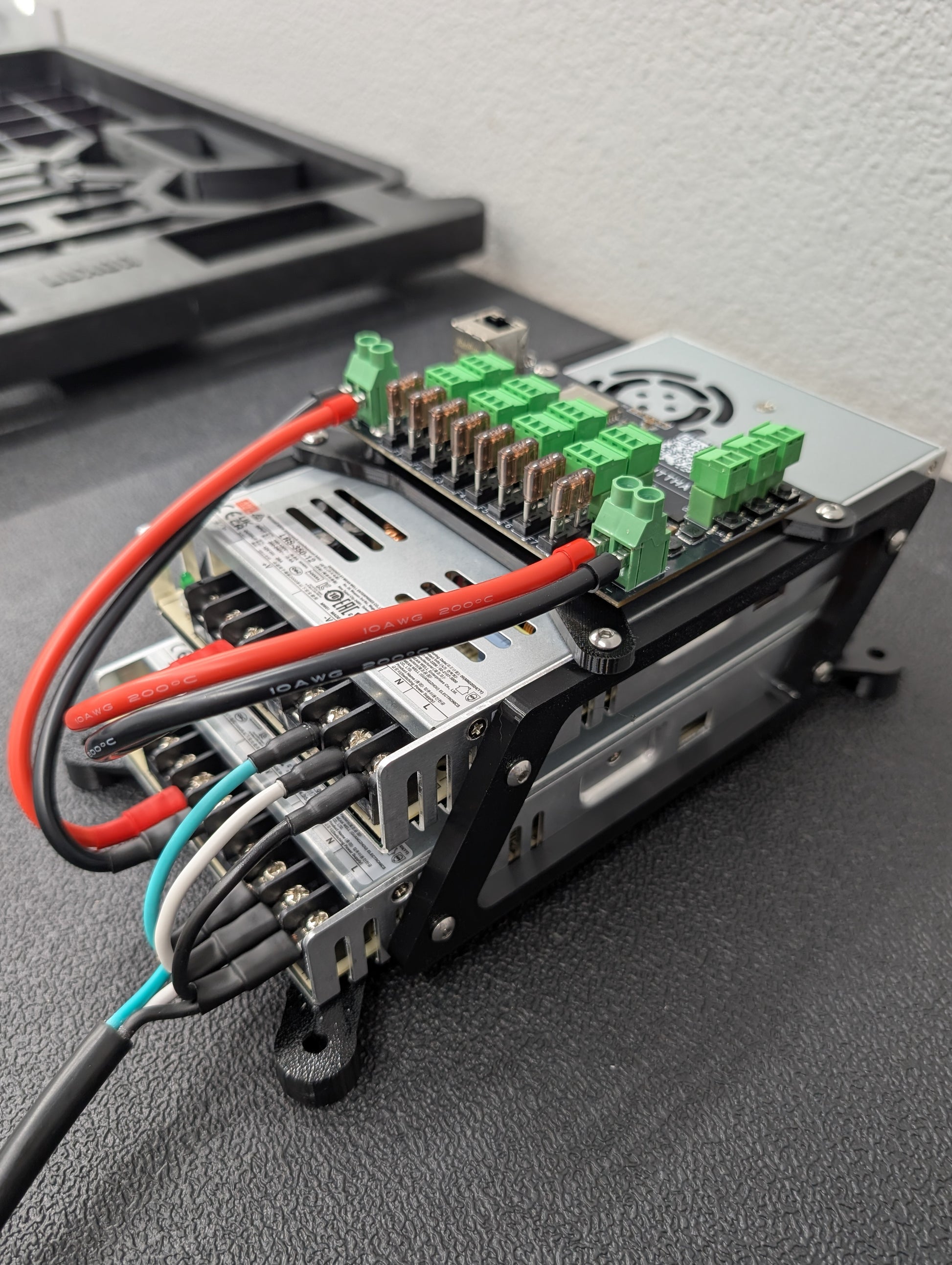

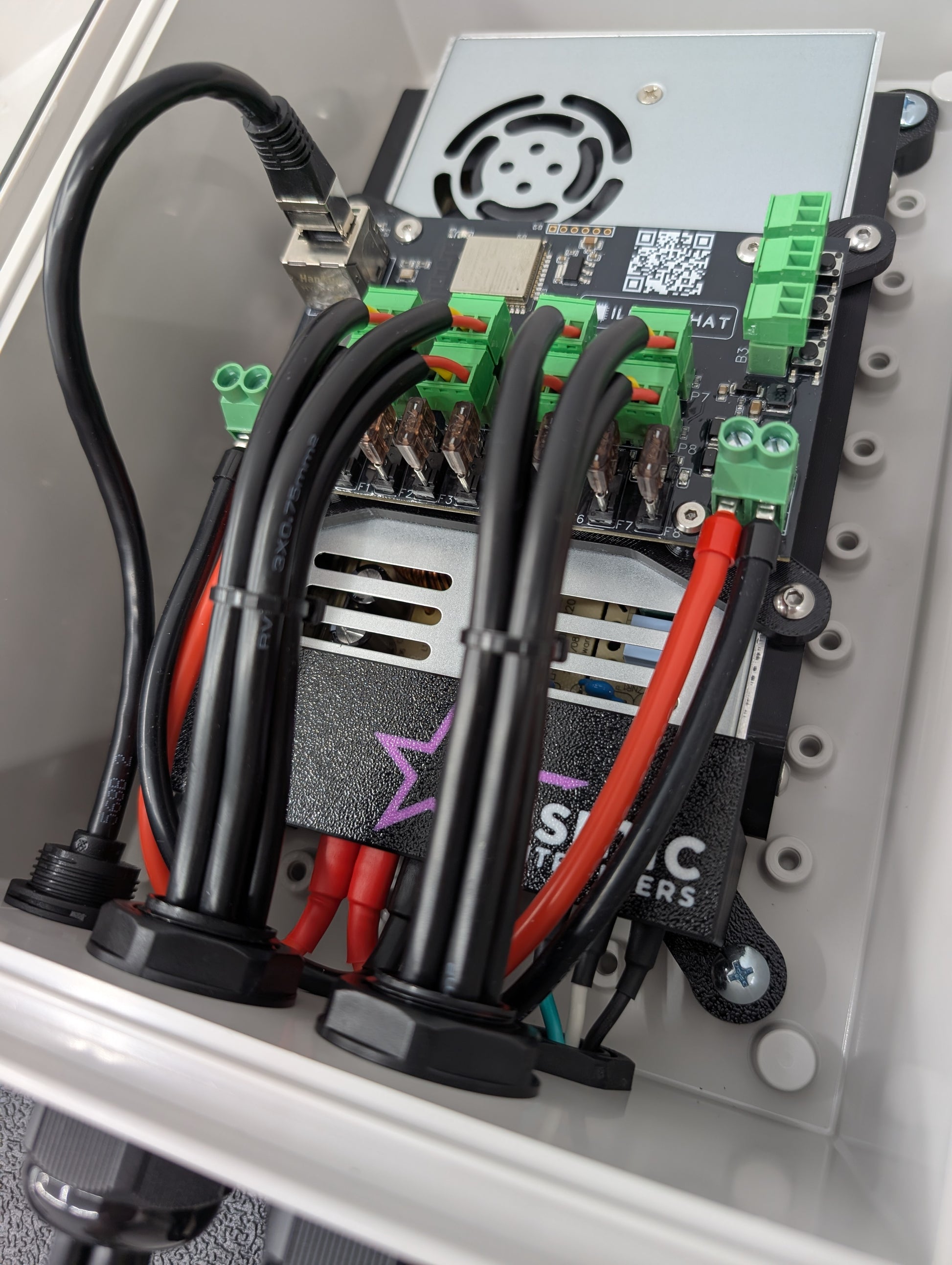

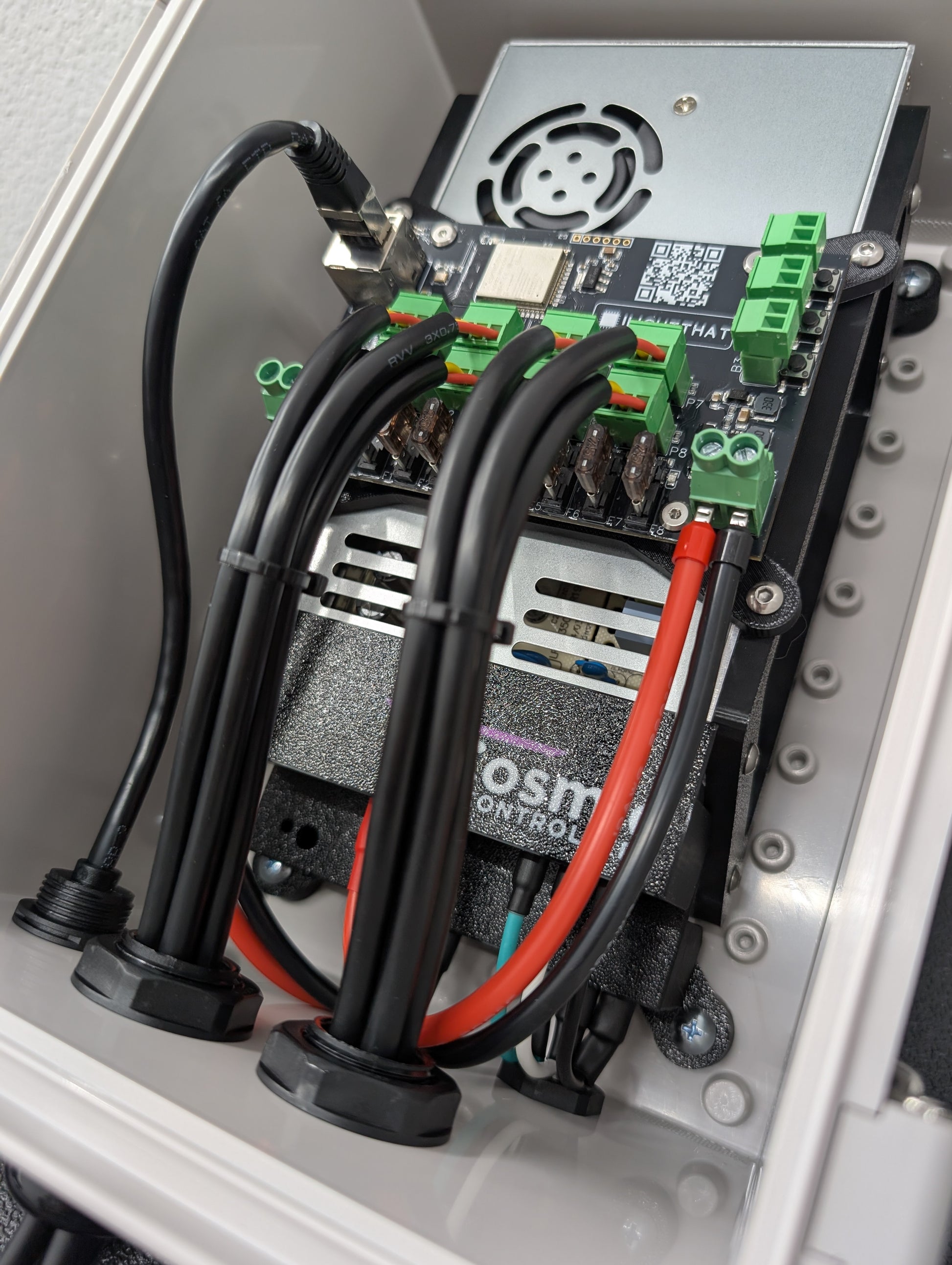

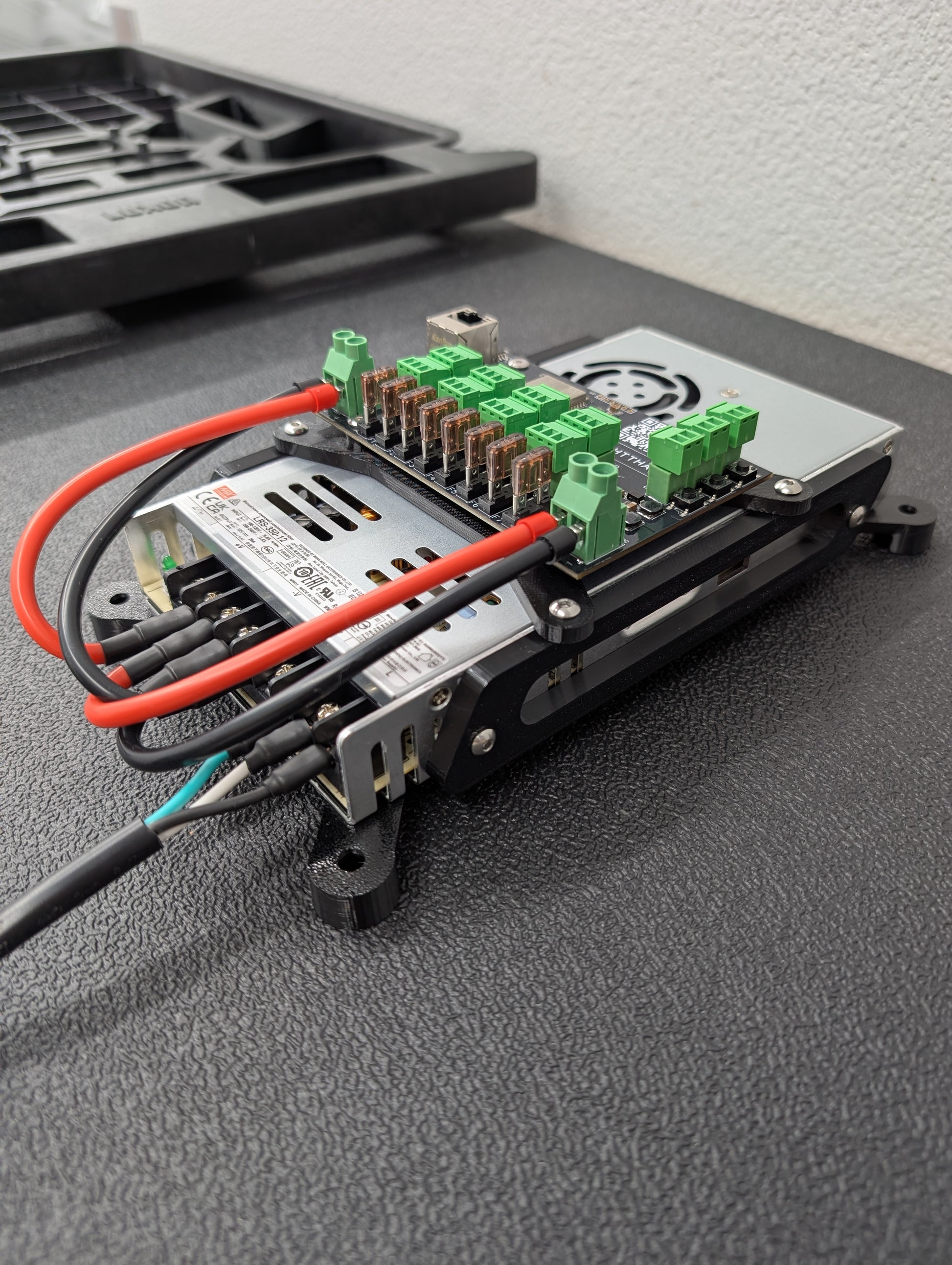

• Baldrick8 controller board

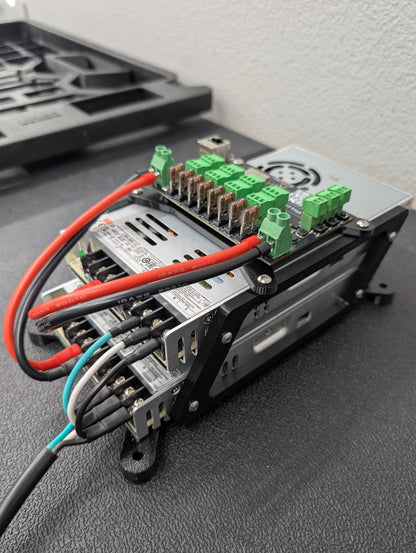

• 12 V Mean Well LRS 350 W PSU(s)
• Boxco P-Series outdoor enclosure
• Waterproof Ethernet port (10/100 LAN)
• xConnect pigtails pre-installed

Key Features

Pixel Control

• 8 ports — up to 750 pixels per port at 40 FPS
• Total capacity: 6,000 pixels
• Compatible with WS281x and RGBW pixels
• Individually fused 7.5 A outputs with fault indicator LEDs

Power Management

• Available in 350 W or 700 W configurations
• 10 AWG silicone high-temp wiring for safe high-current operation
• Dual 30 A power inputs for full load pixel runs

Connectivity & Integration

• 10/100 Ethernet LAN port for reliable wired control
• Supports DDP, Artnet, E1.31, and sACN protocols
• Direct xLights integration for configuration push
• No Raspberry Pi or FPP license required

User Interface & Control

• Three programmable input ports for FPP API triggers
• Built-in test modes and effects generator
• Simple onboard buttons for testing and control

Enclosure Design

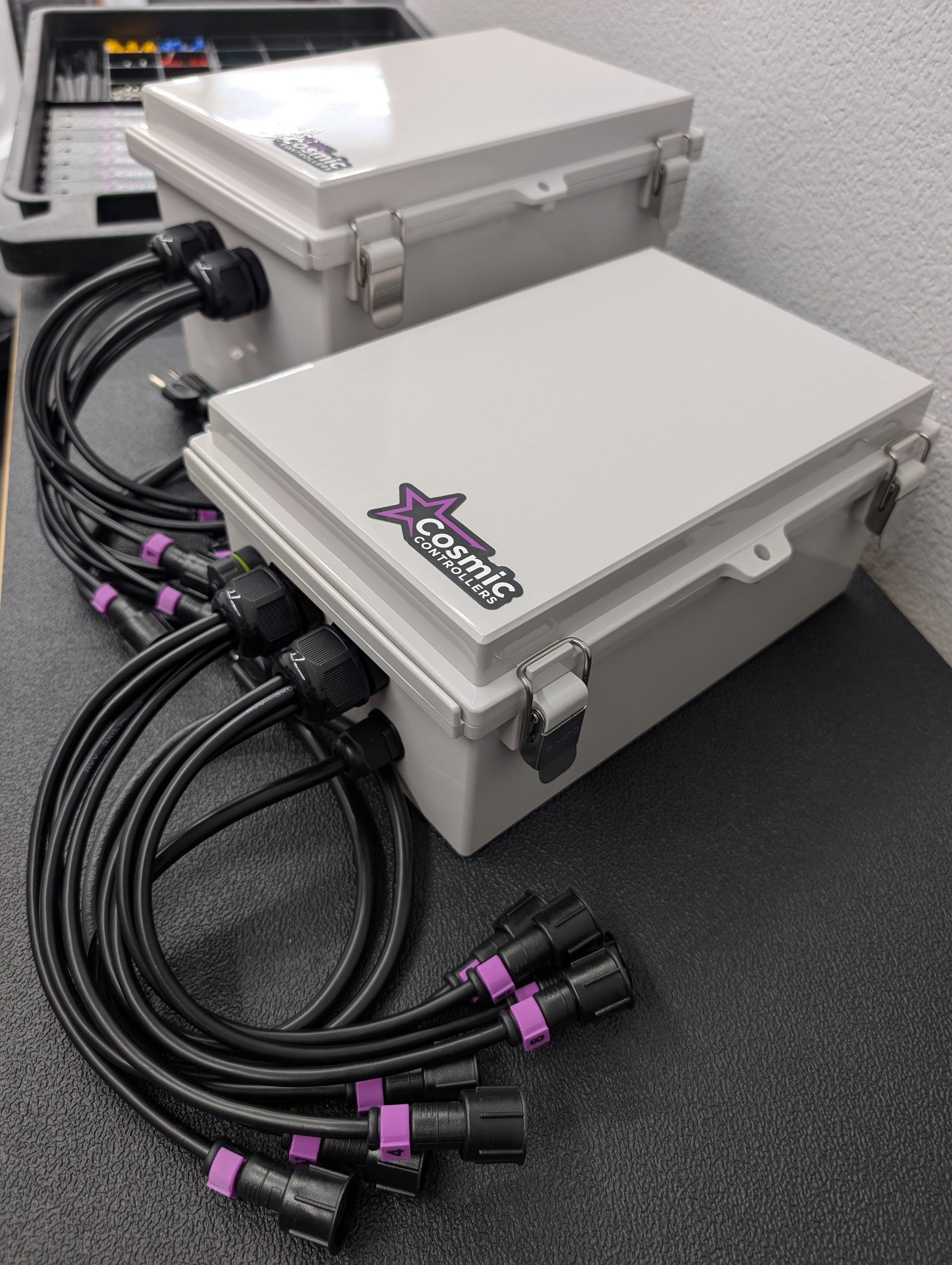

• UV-stabilized Boxco P-Series enclosure with stainless hardware
• 4-hole IP68 waterproof cable glands for clean cable routing
• SJTW outdoor-rated power cord for rugged performance

Accessories Included

• Cosmic Cable ID clips for easy labeling
• Waterproof RJ45 coupler
• PSU terminal cover(s)

Notes

Customization

Custom options such as vents, fans, and accessory integrations are available. For special requests or modified configurations, please contact us.

Warranty

All prebuilt pixel controllers include a 1-year limited warranty. See our Warranty Policy for details.

Recommended Accessories

• Wall Mount Bracket Kit (4-Pack) — Securely mount your controller enclosure for a professional installation.
• Plastic End Cap (Male Plug) — Protect unused female xConnect pigtails from dust and moisture.

Why Choose Cosmic Controllers

Unlike most built-to-order controllers with long lead times, Cosmic Controllers are in stock and ship the next business day — so you can start testing and sequencing right away.

Every unit is assembled with genuine Mean Well power supplies, premium wiring, and fully waterproof components to ensure years of dependable performance for your holiday light show or permanent installation.
