8-Output DIY Controller & Receiver Parts Kit

Building an 8-output pixel controller or remote receiver in your own enclosure? The Cosmic 8-Output DIY Controller & Receiver Parts Kit brings together the power supply, output pigtails, cable glands, power cord, waterproof RJ45 panel mount, and numbered cable ID clips needed for a clean 8-output build. Choose the controller or receiver board and enclosure that work for your project without tracking down the supporting parts one by one.

• Mean Well LRS-350-12 12V / 348W rated power supply (350W class)
• 8 × 20-inch xConnect female output pigtails
• 2 × M25 IP68 four-hole cable glands
• Long-thread M16 power-cord gland for thicker enclosure walls
• 3-foot 16/3 SJTW outdoor-rated power cord
• Waterproof RJ45 panel mount with 300 mm cable
• PETG Cable ID Clip set numbered 1–8
• Controller board and enclosure are not included

Product Overview

This kit is designed for builders using their own controller or receiver board and enclosure, including compact cases, ammo cans, and other custom DIY builds. It includes the core power, output, cable-routing, network, and identification hardware needed for an 8-output 12V controller or receiver project.

The included Mean Well LRS-350-12 is a 350W-class power supply rated for 348W (12V DC / 29A). The xConnect pigtails, IP68 cable glands, outdoor-rated AC power cord, and waterproof RJ45 panel mount provide the supporting hardware for a clean enclosure installation.

For North American customers, we preset the power supply's AC input selector for 115V mode, suitable for standard 120V AC service, before shipping.

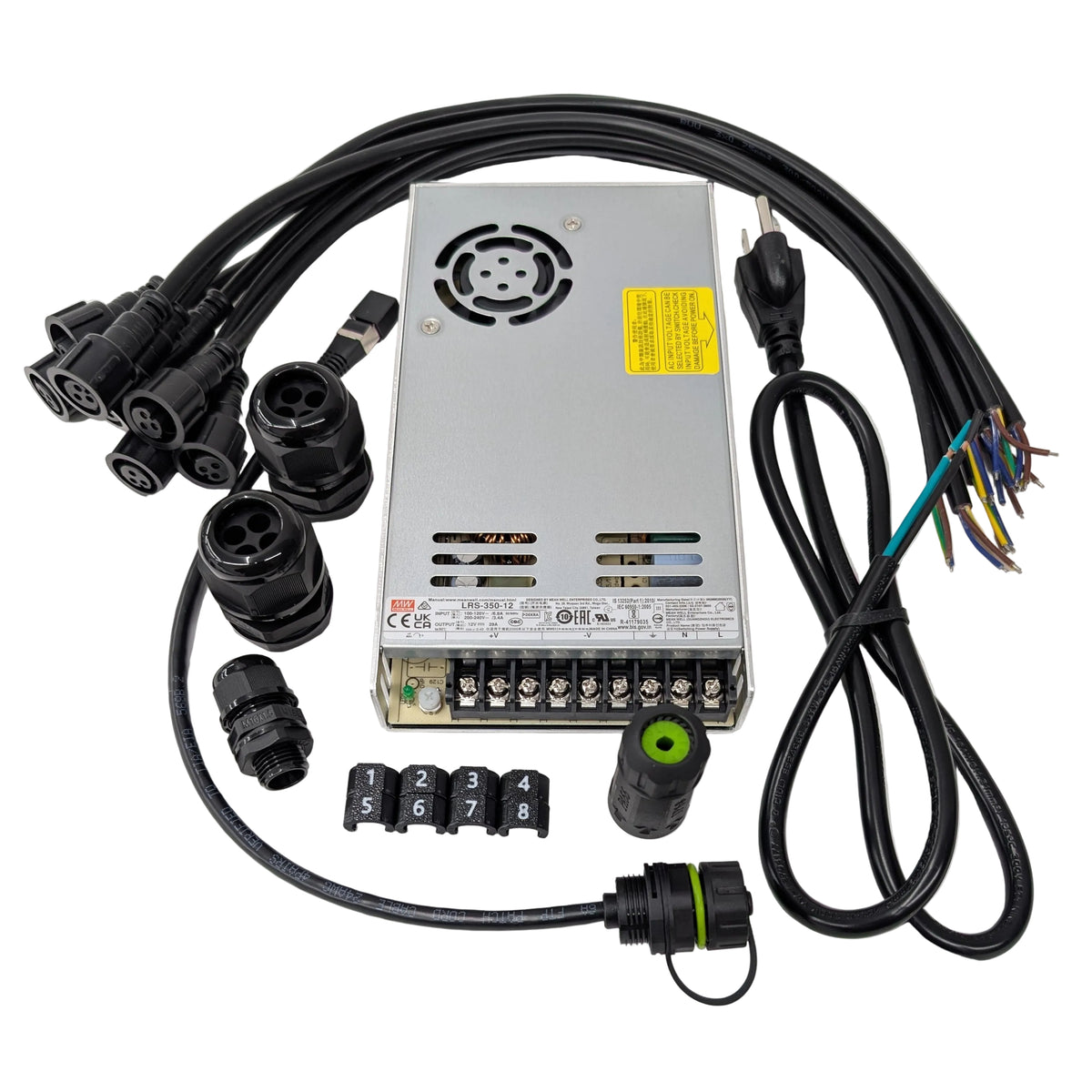

What's Included

• 1 × Mean Well LRS-350-12 12V DC / 29A / 348W rated power supply
• 8 × 20-inch xConnect female pigtails for pixel outputs
• 2 × M25 IP68 four-hole cable glands for the output pigtails
• 1 × long-thread M16 cable gland for power-cord entry
• 1 × 3-foot 16/3 SJTW outdoor-rated power cord
• 1 × waterproof RJ45 panel mount with a 300 mm cable
• 1 × two-color PETG Cable ID Clip set, numbered 1–8

RJ45 cable choice: Prefer a 200 mm cable or a panel mount with no attached cable? Either can be substituted for the standard 300 mm version at no additional charge. Please include your preference with your order.

Technical Specifications

What You Need to Provide

• Controller or receiver board
• Enclosure and component mounts
• Board-specific power wiring, connectors, and hardware

Compatibility & Assembly Notes

• This is an unassembled parts kit; controller board and enclosure are not included.
• The included Mean Well power supply provides 12V DC. Confirm that your selected controller, receiver, pixels, and other components are suitable for your planned 12V system.
• Enclosure layout, drilling, component mounting, and internal wiring depend on the board and enclosure you choose.
• The included xConnect pigtails use the xConnect connector standard.
• Confirm that the RJ45 panel-mount cable and connector arrangement are compatible with your selected controller or receiver board.
• The Mean Well power supply is shipped with its AC input selector preset to 115V mode for North American 120V AC operation. Verify the selector position before installation or connecting power.
• Work involving mains AC power requires appropriate tools and electrical knowledge. Follow the instructions and safety requirements for your selected components.

Build it your way. Get the core hardware for a clean 8-output controller or remote receiver build in one order while keeping the flexibility to use your preferred board and enclosure.
